HDC insert, 0 V, 0 A, Number of poles: 2, Installation size: 8

Item No. 3118130000
Download data sheet Engineering Support Product Downloads
Related products 8
General ordering data Dimensions and weights Environmental Product Compliance General data General data Classifications

General ordering data

Version
HDC insert, 0 V, 0 A, Number of poles: 2, Installation size: 8
Order No.
3118130000
Type
HDC HP 550 SSF 2 SET
GTIN (EAN)
4099987243841
Qty.
1 items

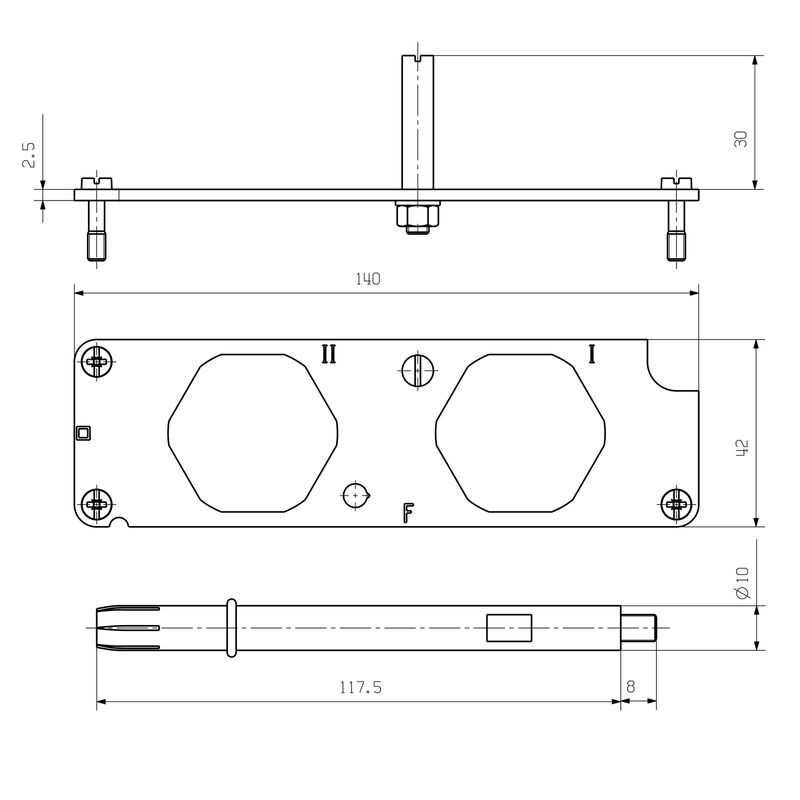

Dimensions and weights

Height
46 mm
Height (inches)
1.811 inch
Width
42 mm
Width (inches)
1.654 inch
Length
140 mm
Length (inches)
5.512 inch
Mounting dimension - height
130 mm
Mounting dimension - width
32 mm
Net weight
160.04 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Stainless steel, rust-proof
BG
8
Colour
Silver grey
Installation size
8
Number of poles
2
Rated current (DIN EN 61984)
0 A
Rated voltage (DIN EN 61984)
0 V
Series
HighPower
Surface finish
untreated
UL 94 flammability rating
None
Protection degree
None

General data

Basic material
Stainless steel, rust-proof
Colour
Silver grey
Series
HighPower
Surface finish
untreated

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-06
ECLASS 15.0
27-44-02-06
