Egenskaber
| Order No. | 1324500000 |

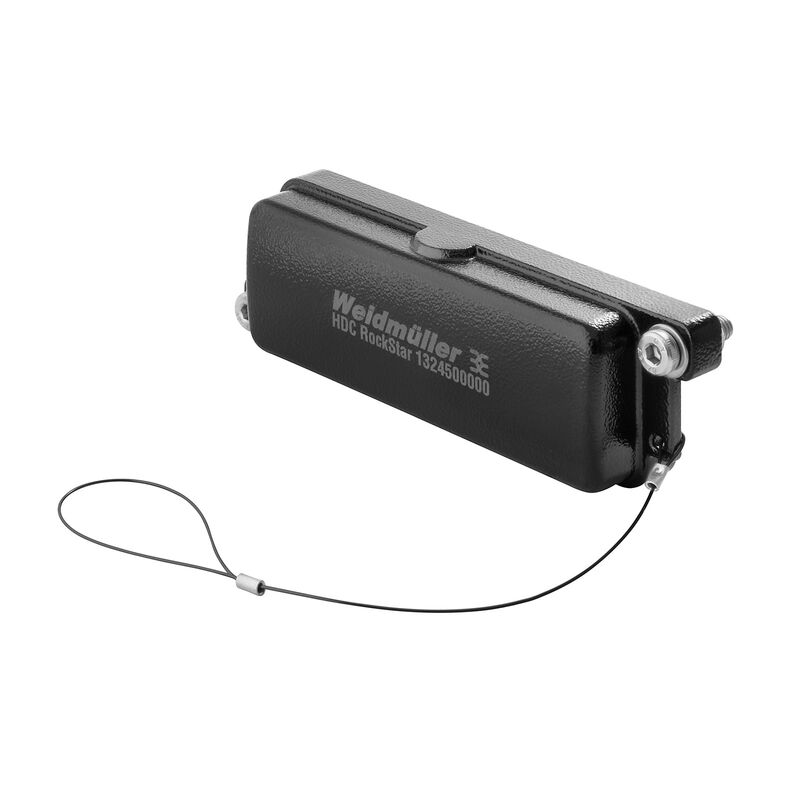

| Type | HDC IP68 24B COVER CS |
| GTIN (EAN) | 4050118128772 |
| Qty. | 1 Styk |
| Net weight | 210 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black (similar to RAL 9005) |
| Protection degree | IP68 (in plugged condition) |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP68 (in plugged condition) |
| Tightening torque | 11 Nm |
| Colour (RAL) | RAL 9005 |
| Tightening torque | 11 Nm |
| Top part/bottom part/lid |
Cover
lower part |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
