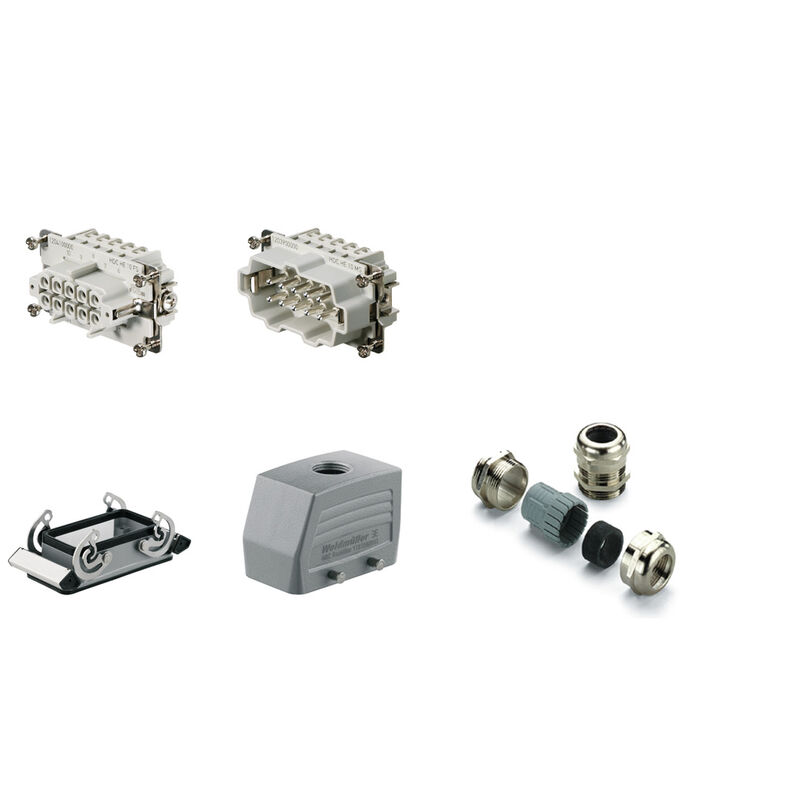

HDC-KIT-HE 10.111

RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 4, Poles: 10, Screw connection, 500 V, 16 A, diecast aluminium, PG 16

Produkt ID 1712670000

Egenskaber

Tilbehør

    ConnectorsHeavy duty connectorsAccessoriesCodingCodingSPB
  • SPB-M 3
    Produkt ID:
    1203600000
    Pakningsenhed:
    100 Styk

    Heavy-duty connectors, Accessories, Lock bolts

Enkeltdele

    Cable Entry Systems and ComponentsCable GlandsCable glands for standard industrial use - INDBrass nickel plated, cable glandsIP68 version
  • VG 16-MS68
    Produkt ID:
    1569100000
    Pakningsenhed:
    25 Styk

    VG MS (standard brass cable gland), Cable glands, straight, PG 16, 6.5 mm, OD min. 10 - OD max. 14 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated

  • ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHE Series - 16A, 500V, 6 - 48 polesScrew connectionSize 4
  • HDC HE 10 MS
    Produkt ID:
    1203900000
    Pakningsenhed:
    1 Styk

    HDC insert, Male, 500 V, 16 A, Number of poles: 10, Screw connection, Size: 4

  • HDC HE 10 FS
    Produkt ID:
    1204100000
    Pakningsenhed:
    1 Styk

    HDC insert, Female, 500 V, 16 A, Number of poles: 10, Screw connection, Size: 4

  • ConnectorsHeavy duty connectorsHousingRockStar® IP65 / NEMA type 12, 4X housingSize 4 (10B/24D)Side locking, lower sideBaseBulkhead housing
  • HDC 10B ABU
    Produkt ID:
    1205000000
    Pakningsenhed:
    1 Styk

    HDC enclosures, Size: 4, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Side-locking clamp not replaceable, Standard

  • ConnectorsHeavy duty connectorsHousingRockStar® IP65 / NEMA type 12, 4X housingSize 4 (10B/24D)Side locking, lower sideHoodHood, Cable Entry at top
  • HDC 10B TOBU 1PG16G
    Produkt ID:
    1654220000
    Pakningsenhed:
    1 Styk

    HDC enclosures, Size: 4, Protection degree: IP65 (in plugged condition), Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 16
