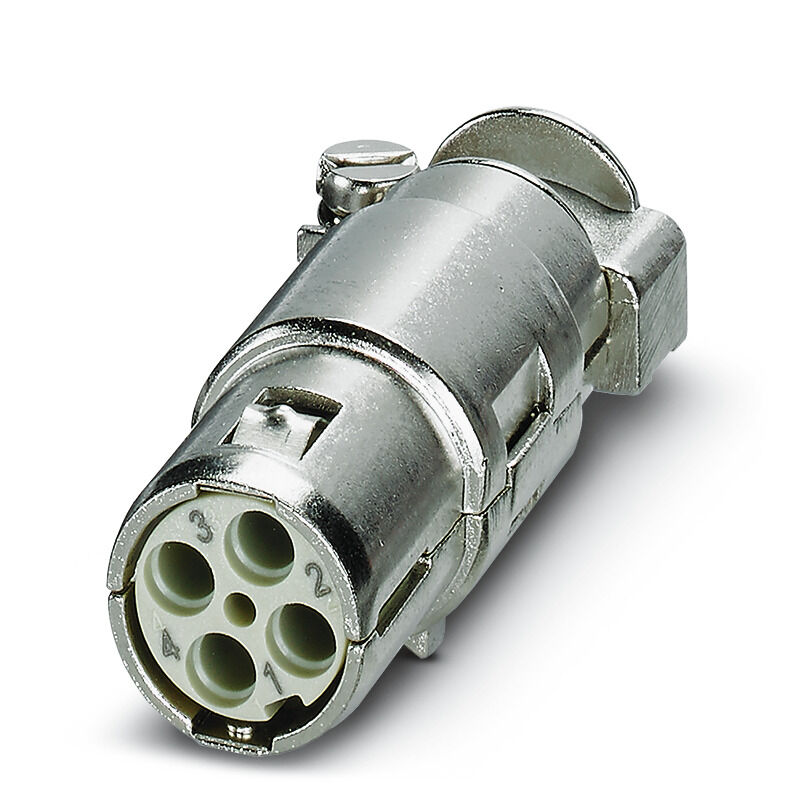

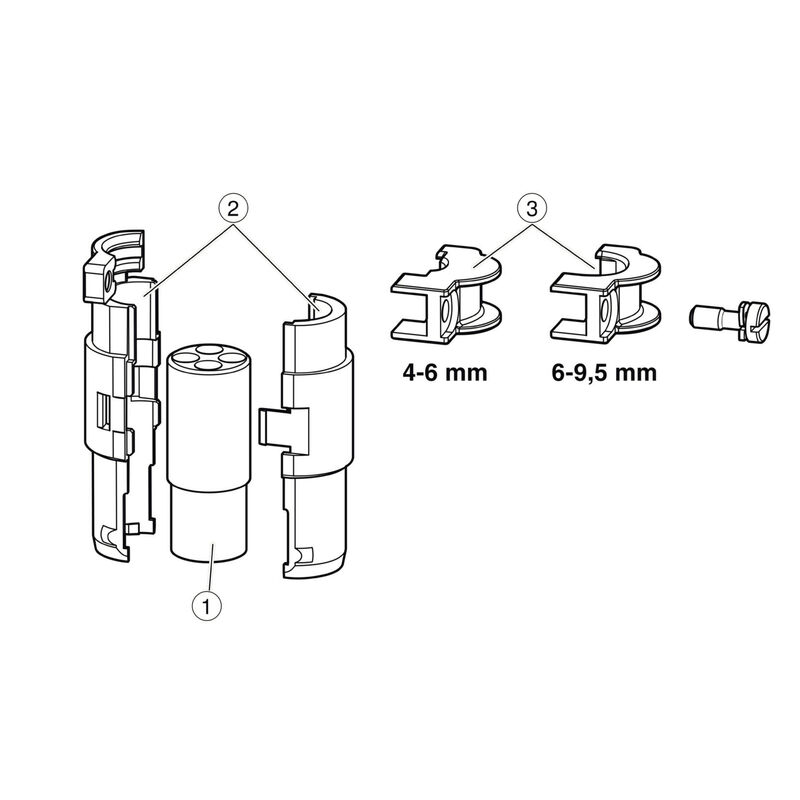

Egenskaber
| Version | Data use, 50 V, 10 A, Number of poles: 4, Crimp connection, Female, Required plug-in slots: |
| Order No. | 2748580000 |
| Type | HDC MBUS HD 4 F |
| GTIN (EAN) | 4050118890570 |
| Qty. | 1 Styk |
| Depth | 46 mm |
| Depth (inches) | 1,811 inch |
| Height | 15,5 mm |
| Height (inches) | 0,61 inch |
| Width | 18 mm |
| Width (inches) | 0,709 inch |
| Net weight | 32 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Number of poles | 4 |
| Plugging cycles | ≥ 500 |
| Rated current (DIN EN 61984) | 10 A |
| Rated voltage (DIN EN 61984) | 50 V |
| Type | Female |
| UL 94 flammability rating | V-0 |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Type of connection | Crimp connection |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188726) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748580000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
