Egenskaber

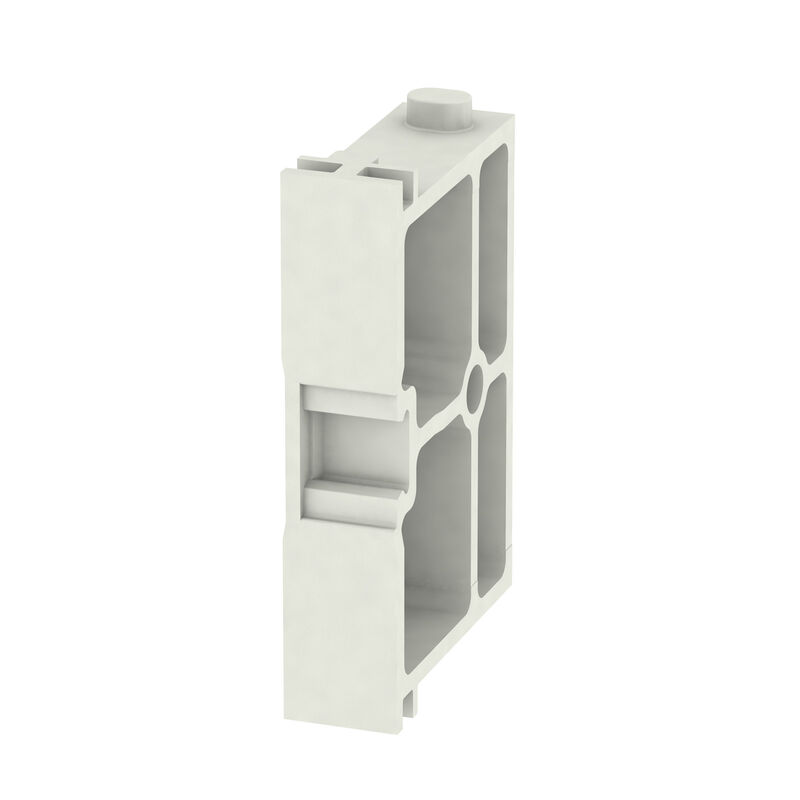

Version | Dummy module, Number of poles: 0, Male, Female, Required plug-in slots: 0.5 |
Order No. | 1429040000 |
Type | HDC MDU |
GTIN (EAN) | 4050118233421 |
Qty. | 1 Styk |

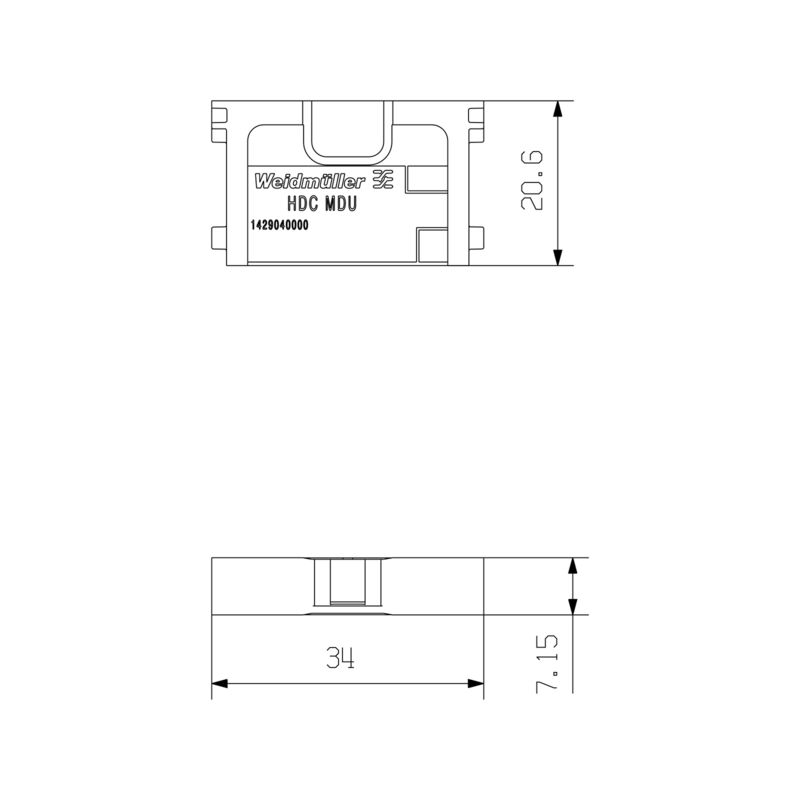

Depth | 34 mm |
Depth (inches) | 1,339 inch |
Height | 20,6 mm |
Height (inches) | 0,811 inch |
Width | 7,15 mm |
Width (inches) | 0,281 inch |
Net weight | 2,58 g |
Limit temperature | -40 °C ... 125 °C |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
SCIP | 1609748e-c278-4c9b-b3d1-e6215d2988cd |
Material | Polycarbonate, glass fibre reinforced |
Number of poles | 0 |
Plugging cycles | ≥ 500 |
Pollution severity | 3 |
Required plug-in slots | 0.5 |
Series | ModuPlug |
Type |
Male
Female |
UL 94 flammability rating | V-0 |
Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54175) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1429040000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1429040000) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
ETIM 6.0 | EC002312 |
ETIM 7.0 | EC002312 |
ETIM 8.0 | EC000438 |
ETIM 9.0 | EC000438 |
ECLASS 9.0 | 27-44-02-92 |
ECLASS 9.1 | 27-44-02-18 |
ECLASS 10.0 | 27-44-02-92 |
ECLASS 11.0 | 27-44-02-92 |
ECLASS 12.0 | 27-44-02-92 |
ECLASS 13.0 | 27-44-02-92 |
ECLASS 14.0 | 27-44-02-92 |
ROHS | Conform |
