Egenskaber

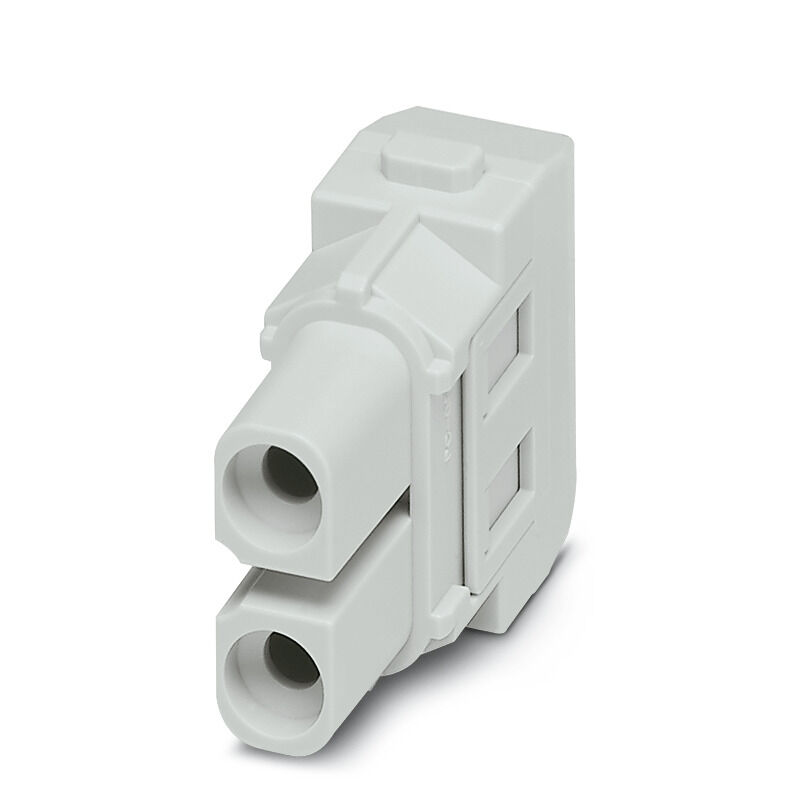

| Version | Power module, 830 V, 40 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1 |
| Order No. | 2748350000 |
| Type | HDC MHX 2 FC |
| GTIN (EAN) | 4050118890983 |
| Qty. | 5 Styk |

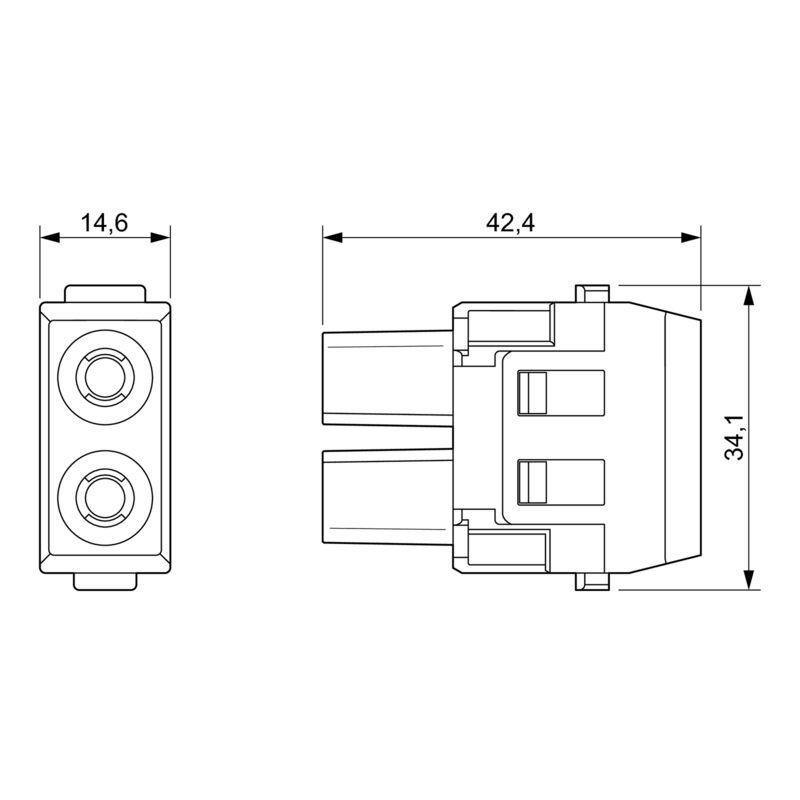

| Depth | 34 mm |
| Depth (inches) | 1,339 inch |
| Height | 42,4 mm |
| Height (inches) | 1,669 inch |
| Width | 34,2 mm |
| Width (inches) | 1,346 inch |
| Net weight | 11,31 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |

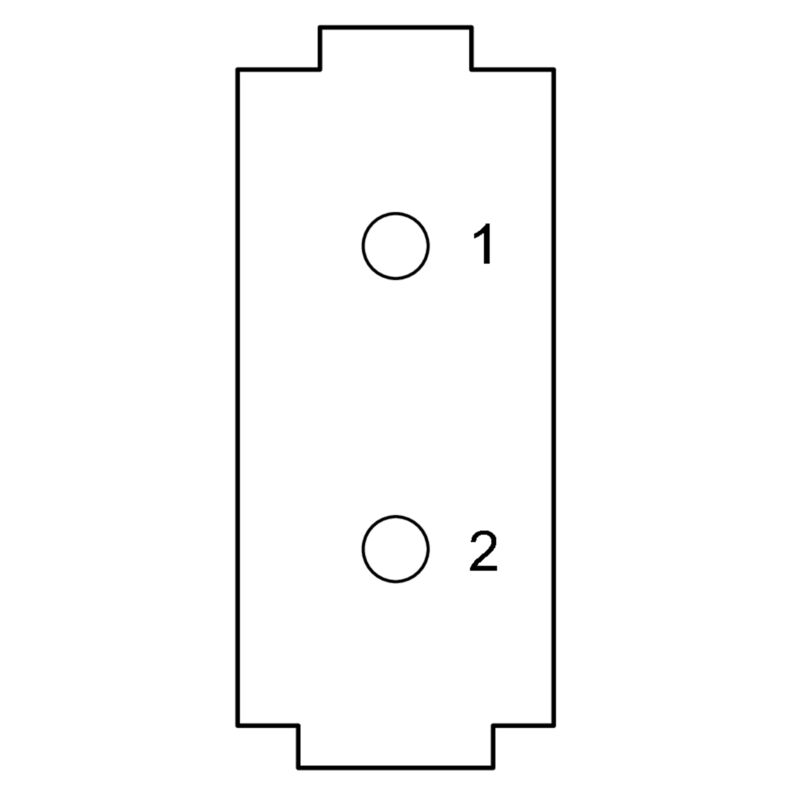

| Number of poles | 2 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |

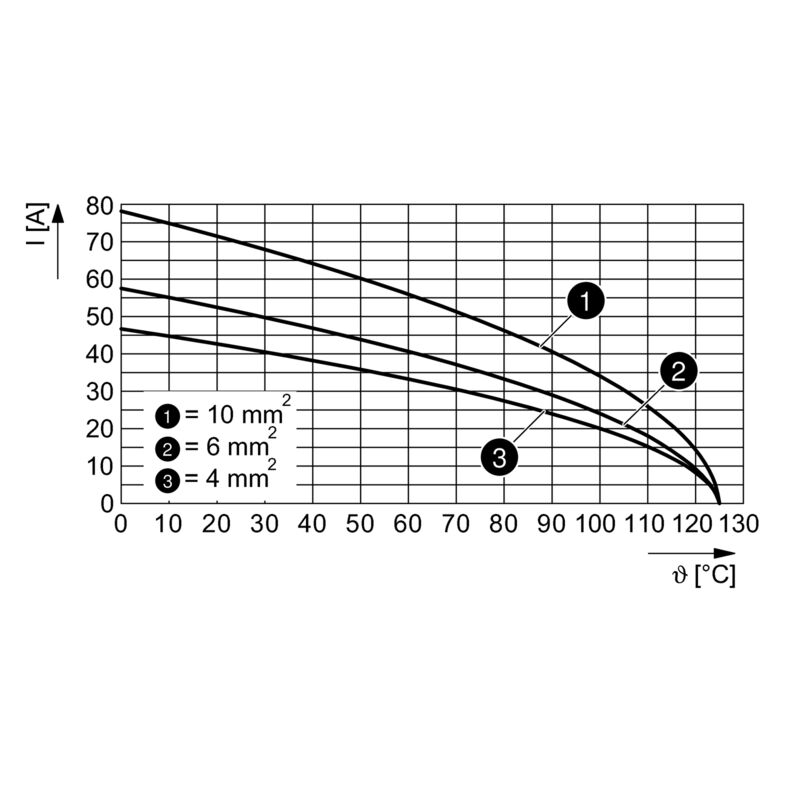

| Rated current (DIN EN 61984) | 40 A |
| Rated impulse voltage (DIN EN 61984) | 8 kV |
| Rated voltage (DIN EN 61984) | 830 V |
| Rated voltage according to UL/CSA | 600 V |
| Required plug-in slots | 1 |
| Surge voltage category | III |
| Type | Female |
| UL 94 flammability rating | V-0 |
| Connection type PE | Screw connection via module frame |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Type of connection | Crimp connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 16 |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188705) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748350000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E92202 |
