Egenskaber
| Version | Cross-connector bridge, Heavy duty connector assemblies |
| Order No. | 2709730000 |

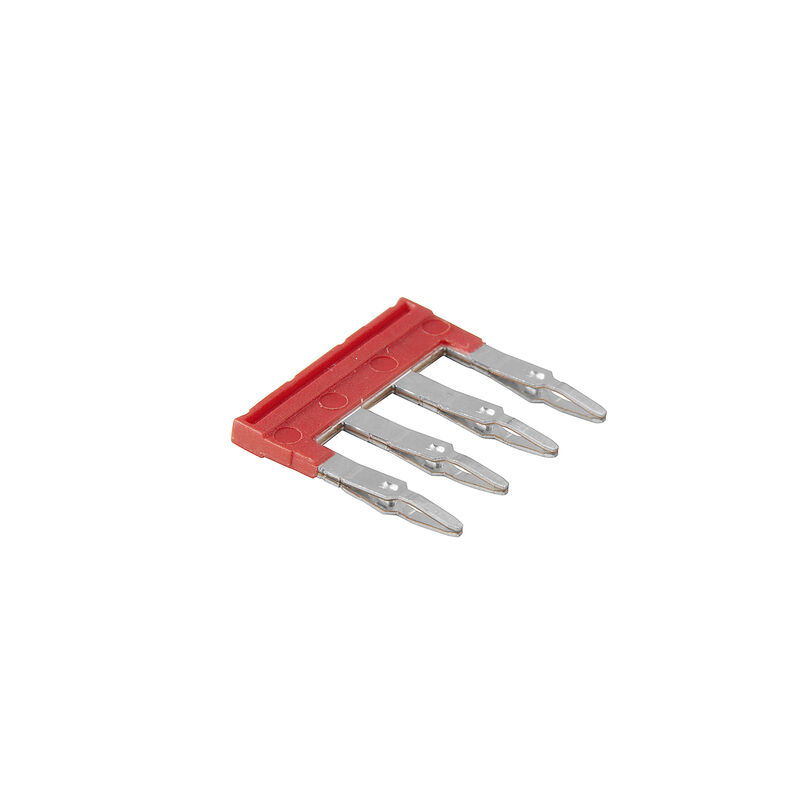

| Type | HDC MXCC4 4X |
| GTIN (EAN) | 4050118805673 |
| Qty. | 50 Styk |
| Net weight | 2,657 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66/6 |
| Version | For ModuPlug MHE 4X module |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_295704) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2709730000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.1 | 27-44-02-92 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:2636090000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Pin, Required plug-in slots: 0.5
-
Produkt ID:2636060000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
-
Produkt ID:2636070000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Pin, Required plug-in slots: 0.5
-
Produkt ID:2636080000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
Er tilbehør til
-
Produkt ID:2636070000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Pin, Required plug-in slots: 0.5
-
Produkt ID:2636090000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Pin, Required plug-in slots: 0.5
-
Produkt ID:2636060000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
-
Produkt ID:2636080000Pakningsenhed:1 Styk
Signal module, 250 V, 16 A, Number of poles: 4, PUSH IN with actuator, Female, Required plug-in slots: 0.5
