Egenskaber

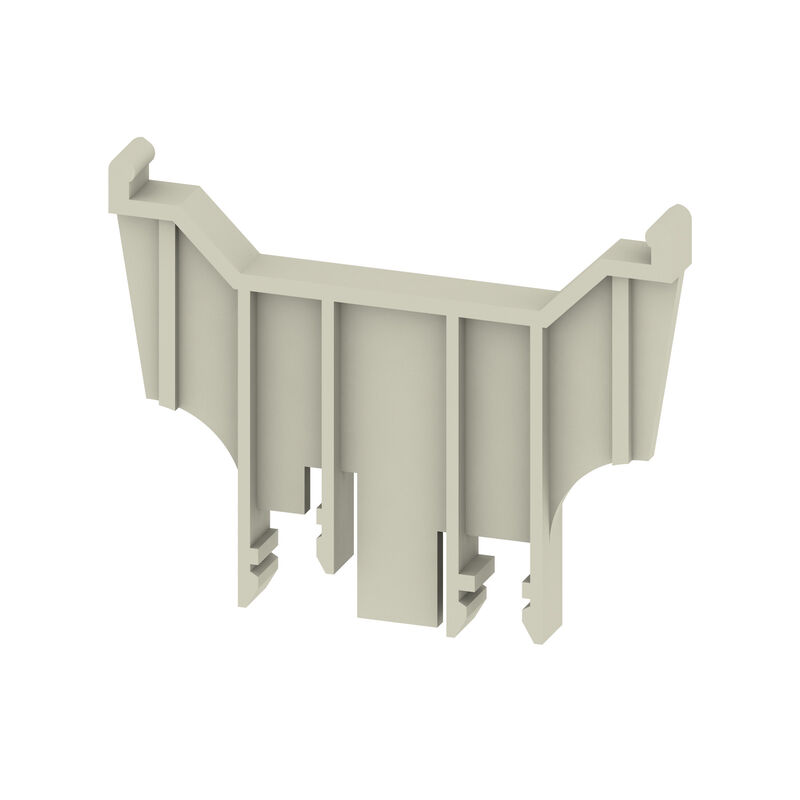

| Version | End and partition plate for terminals, beige, Height: 70 mm, Width: 7 mm, V-2 |
| Order No. | 0634300000 |
| Type | HP EK132/2 AD250 |
| GTIN (EAN) | 4008190022426 |
| Qty. | 20 Styk |
| Depth | 49,5 mm |
| Depth (inches) | 1,949 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 7 mm |
| Width (inches) | 0,276 inch |
| Net weight | 7,6 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | Mounting plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0634300000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-33 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
