Egenskaber

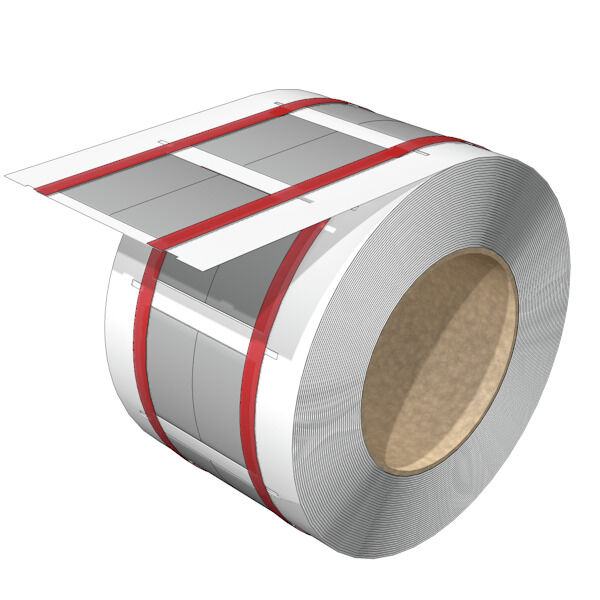

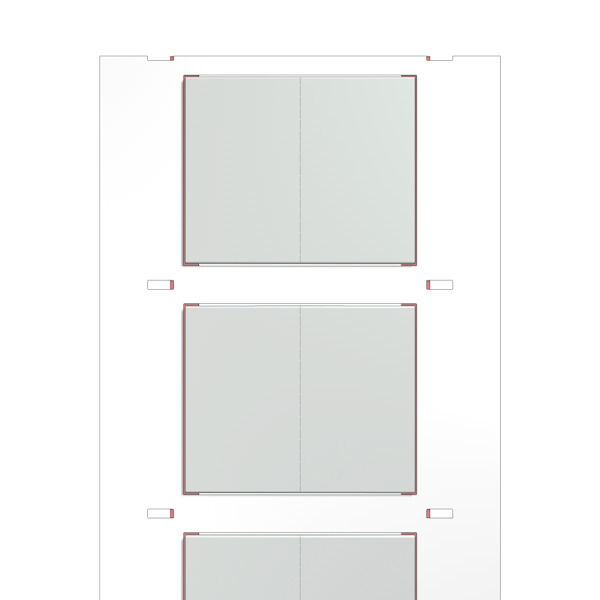

| Version | Conductor and cable markers, 12.7 - 25.4 mm, 24.9 x 40.5 mm, white |
| Order No. | 2621700000 |
| Type | HS-FR 12.7-25.4/25 MM W |
| GTIN (EAN) | 4050118625349 |
| Qty. | 400 Styk |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 24,9 mm |
| Height (inches) | 0,98 inch |
| Width | 40,5 mm |
| Width (inches) | 1,594 inch |
| Net weight | 1,414 g |
| Operating temperature range | -55...125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyolefine |
| Operating temperature range | -55...125 °C |
| Operating temperature range, max. | 125 °C |
| Operating temperature range, min. | -55 °C |
| Size of labelling field | 40.5 x 24.9 mm |
| Width | 40,5 mm |
| Conductor cross-section, max. | 120 mm² |
| Conductor cross-section, min. | 35 mm² |
| Conductor O.D. | 12.7 - 25.4 mm |
| Conductor O.D., max. | 25,4 mm |
| Conductor O.D., min. | 12,7 mm |
| Cross-section for connected wire | 35 - 120 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Wire connection cross section AWG, max. | AWG 4/0 |
| Wire connection cross section AWG, min. | AWG 2 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2621700000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
