Egenskaber

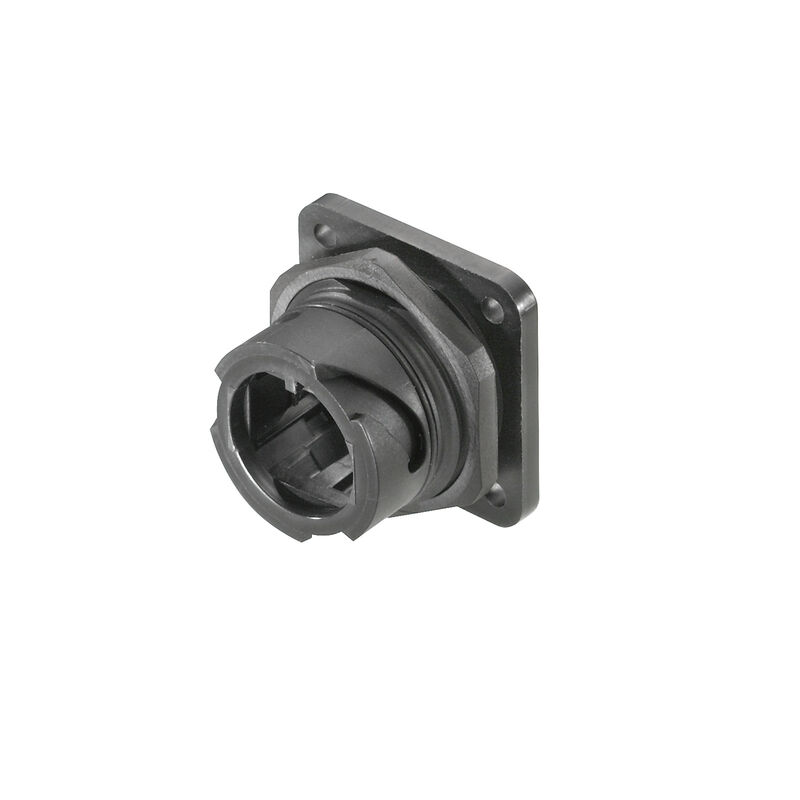

| Version | Empty enclosure, Flange-mounted housing, IP67 |
| Order No. | 1016960000 |
| Type | IE-BH-V01P |
| GTIN (EAN) | 4032248738939 |
| Qty. | 10 Styk |
| Depth | 22,8 mm |
| Depth (inches) | 0,898 inch |
| Height | 32 mm |
| Height (inches) | 1,26 inch |
| Width | 32 |
| Width (inches) | 1,26 inch |
| Net weight | 1,76 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | 11b17e97-f803-4c09-9278-b20f22f15f81 |
| Colour | black |
| Configuration | Plug housing with labelling/marking holder: 9*11 mm; suitable for holding RJ45 and fibre-optic inserts |
| Housing main material | PA UL 94 V0 |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Connector standard | IEC 61076-3-106 Var. 1 |
| Approval/Certificate/Document of Conformity | [DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87561) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1016960000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90841) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-02 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-01-04 |
| ECLASS 14.0 | 27-19-01-04 |
| ROHS | Conform |
