Egenskaber
| Version | Flange insert, for flange insert, Hybrid |
| Order No. | 1069010000 |

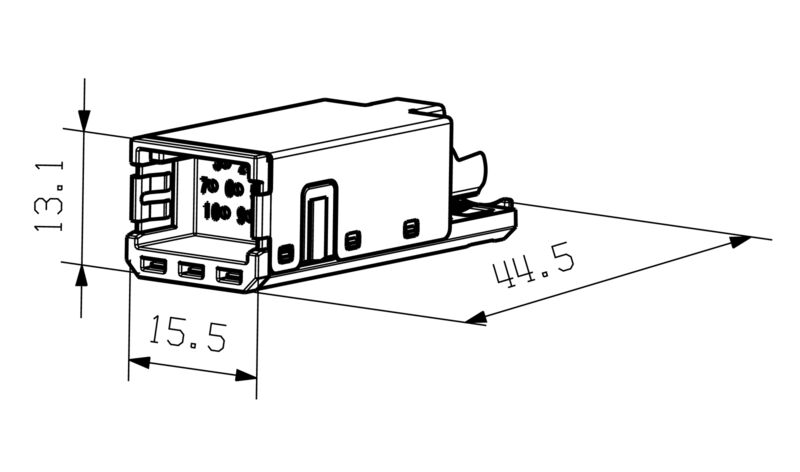

| Type | IE-BI-HYB-10P |
| GTIN (EAN) | 4032248823970 |
| Qty. | 10 Styk |
| Net weight | 30,6 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | Cat.5 (ISO/IEC 11801) |
| Connection 1 | Hybrid (Q10) |
| Connection 2 | Crimp |
| Housing main material |
Zinc diecast
Nickel silver PA 66 |
| Insulation cross-section, max. | 2,2 mm |
| Insulation cross-section, min. | 1 mm |
| Plugging cycles | 500 |
| Protection degree | IP67 with housing |
| Shielding | 360° all-round enclosure |
| Wire connection cross section, finely stranded, max. | 0,75 mm² |
| Wire connection cross section, finely stranded, min. | 0,08 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 20 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 27 |
| Contact resistance | ≤ 10 mΩ |
| Rated current | 3 A per contact |
| Rated voltage | 24 V |
| Volume resistance | <10 mΩ |
| Certificate no. (cULus) | E316369 |
| Product information | Hybrid, 10-pole. Inserts for plug-in connectors Variant 14 |
| Approval/Certificate/Document of Conformity |
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418)
[PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253855) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1069010000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90843) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-09-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
