Egenskaber

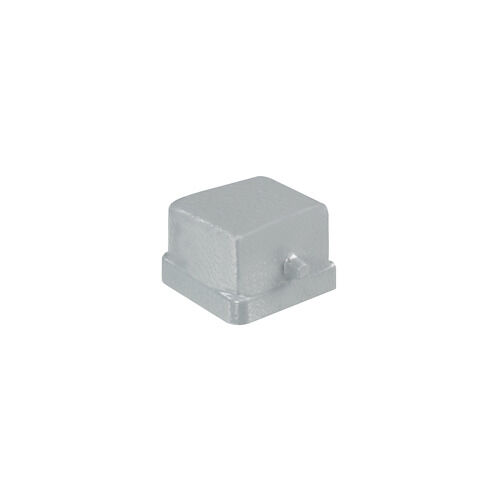

| Version | Flange-mounted housing, protective cap |
| Order No. | 1968930000 |
| Type | IE-BP-V05M |
| GTIN (EAN) | 4032248692125 |
| Qty. | 10 Styk |
| Depth | 17,5 mm |
| Depth (inches) | 0,689 inch |
| Net weight | 11,778 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Colour | grey |
| Housing main material | diecast aluminium |
| Protection degree | IP67 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_192278) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1968930000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002314 |
| ETIM 7.0 | EC002314 |
| ETIM 8.0 | EC002314 |
| ETIM 9.0 | EC002314 |
| ECLASS 9.0 | 27-44-02-08 |
| ECLASS 9.1 | 27-44-02-08 |
| ECLASS 10.0 | 27-44-02-08 |
| ECLASS 11.0 | 27-44-02-08 |
| ECLASS 12.0 | 27-44-02-08 |
| ECLASS 13.0 | 27-44-02-08 |
| ECLASS 14.0 | 27-44-02-08 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1963530000Pakningsenhed:10 Styk
Empty enclosure, Flange-mounted housing, Variant 5 to IEC 61076-3-106, IP67
-
Produkt ID:1963460000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 5, IDC, EIA/TIA 586 A, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1963510000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 5, RJ45 / RJ45 coupling, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1963700000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 5, IDC, PROFINET, Cat.5 (ISO/IEC 11801)
