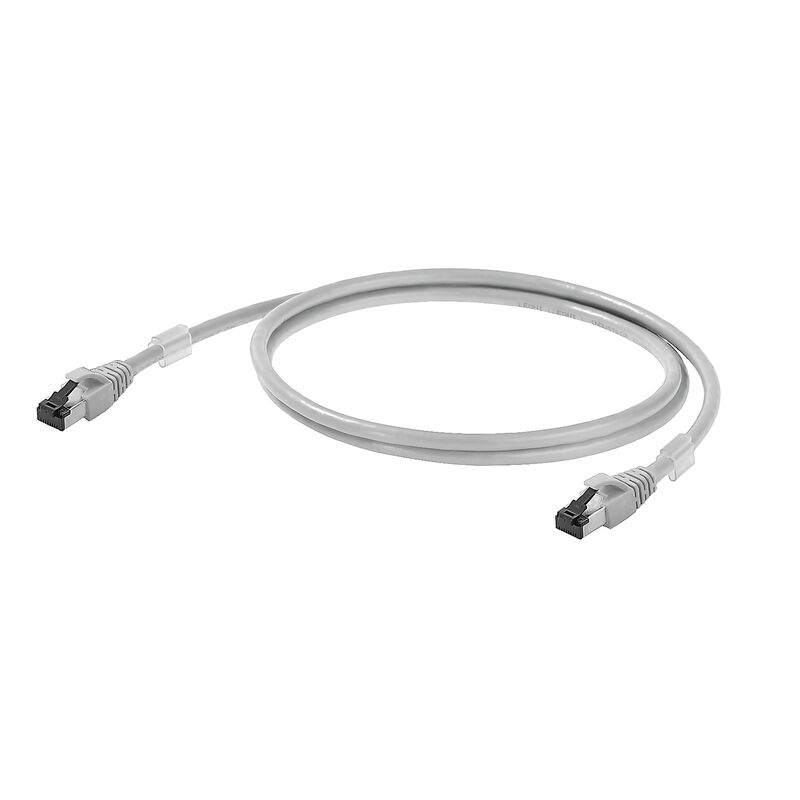

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 0.4 m

Tuotteen tunnus 1165940004
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 Samankaltaiset tuotteet 33
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 0.4 m
Order No.
1165940004
Type
IE-C6FP8LD0004M40M40-D
GTIN (EAN)
4050118479072
Qty.
1 items

Dimensions and weights

Length
0,4 m
Length (inches)
15,748 inch
Net weight
26 g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Connector standard
IEC 60603-7-51
Č. osvědčení (cULus)
E316369

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Cordones flexibles
7
Couleur de la gaine
grey
Farbsequenz Adern - Adernpaare
white - blue, white - orange, white - green, white - brown
izolacja
PE
Keresztmetszet
4*2*AWG 27/7 - 4*2*0.1 mm²
Kompletní stínění
Shielding braid made from copper wiring
Manteldiameter, max.
5,9 mm
Material sheath
LSZH
Overlap of shielding braid
60 %
Schermatura
S/FTP
Sheath diameter, min.
5,5 mm
Wire pair shielding
Aluminium foil
Średnica izolacji
1,04 mm
와이어 개수
8

Electrical properties of cable

Capacité pour 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Clase de separación según EN 50174-2
d
Coupling attenuation up to 1000 MHz
80 dB
Csatolási ellenállás 10 MHz/m-en
5 mΩ
Driftspänning (UL-märkning)
30 V AC / 42.4 V DC
Operating voltage
50 V DC
Resistance differential
5 %
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
Transmission rate
10 Gbit/s
Задержка наклона
2,5 ns/100m

Mechanical and material properties of cable

Colour
grey
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
