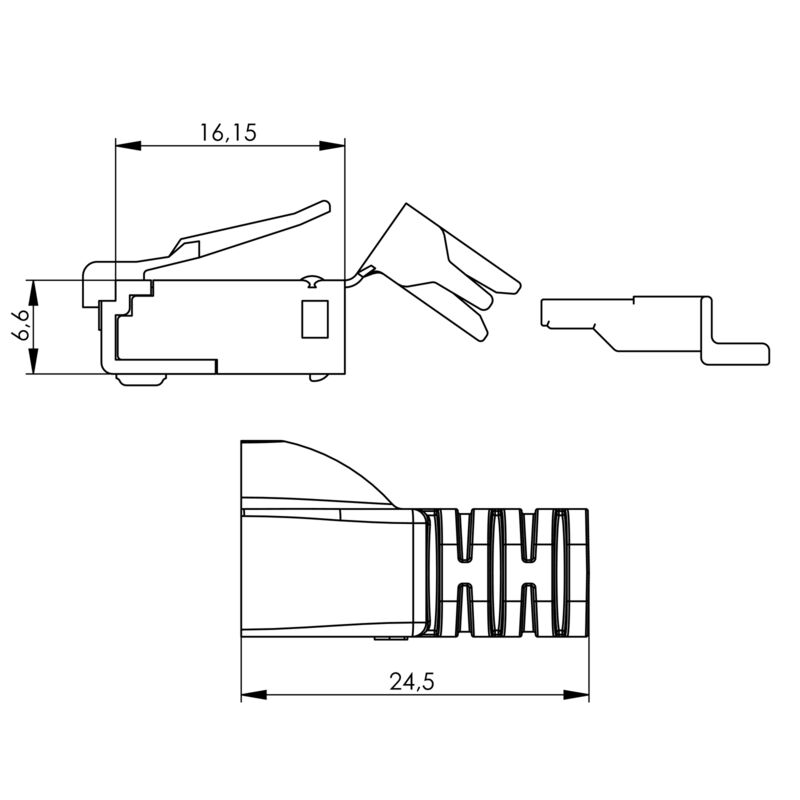

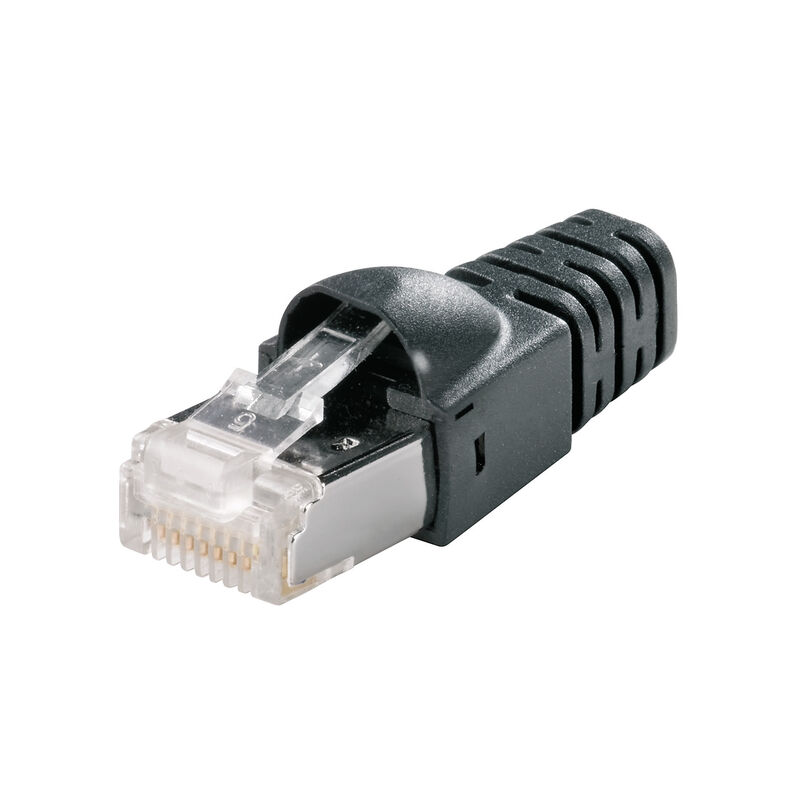

IE-P63

RJ45 plug-in connector, with kink protection; 5.5 - 6.2 mm, Cat.6_A / Class E_A (ISO/IEC 11801 2010), IP20

Produkt ID 8813110000

Egenskaber

General ordering data

Version	RJ45 plug-in connector, with kink protection; 5.5 - 6.2 mm, Cat.6_A / Class E_A (ISO/IEC 11801 2010), IP20
Order No.	8813110000
Type	IE-P63
GTIN (EAN)	4032248512867
Qty.	10 Styk

Dimensions and weights

Net weight

5,3 g

Temperatures

Storage temperature	-40 °C...80 °C
Operating temperature	-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Connection 1	RJ45
Connection 2	Crimp
Description of article	with kink protection; 5.5 - 6.2 mm
Insulation cross-section, min.	0,85 mm
Insulation cross-section, max.	1,05 mm
Cable pull-out force, min.	89 N
Category	Cat.6_A / Class E_A (ISO/IEC 11801 2010)
Bending protection	moulded
Contact material	Phosphorus bronze
Contact surface	Gold-plated
Connection diameter, solid	0.36...0.51 mm
Conductor connection cross-section, solid (AWG)	AWG 27...AWG 24
Connection diameter, flexible	0.46...0.61 mm
Conductor connection cross-section, flexible (AWG)	AWG 27...AWG 24
MICE classification M	M₁
MICE classification I	I₁
MICE classification C	C₁
MICE classification E	E₃
Sheath diameter, min.	5,5 mm
Sheath diameter, max.	6,2 mm
Bending protection sleeve material	PVC, UL 94-V0
Shielding material	0.5 mm brass, 2 µm nickel
Shielding	360° all-round enclosure
Protection degree	IP20
Insertion force	20 N
Plugging cycles	750
Material insulator	Polycarbonate PC, UL 94 V-0

Electrical properties

Contact resistance	≤ 20 mΩ
Current-carrying capacity at 50 °C	1 A
Dielectric strength, contact / contact	≥ 1000 V AC/DC
Dielectric strength, contact / shield	≥ 1500 V AC/DC
Insulation strength	500 MΩ
PoE / PoE+	conforming to IEEE 802.3af

General standards

Connector standard

IEC 60603-7-51
