Egenskaber

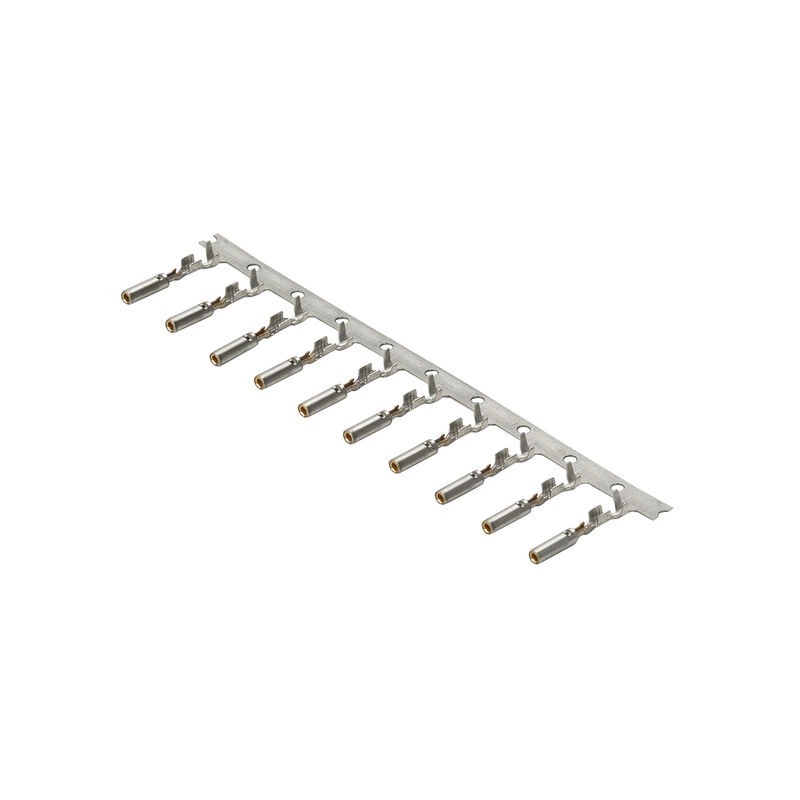

| Version | Crimp contact, for plug insert, Hybrid |
| Order No. | 1096180000 |
| Type | IE-PIC-HYB-S-0,5-300 |
| GTIN (EAN) | 4032248869152 |
| Qty. | 300 Styk |
| Net weight | 0,27 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Wire connection cross section, finely stranded, max. | 0,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,2 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 20 |
| Wire cross-section, finely stranded, min. (AWG) | AWG 24 |
| Rated voltage | 24 V |
| Product information | Hybrid, 10-pole. Inserts for plug-in connectors Variant 14 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90843) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-09-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:1119580000Pakningsenhed:1 Styk
Pressing tool, Crimping tool for contacts, 0.08mm², 1mm², FoderBcrimp
ToolsCrimping tools...for turned/stamped contacts... for contacts in the Weidmüller RSV and DSTV-HD systemCrimping tools
Er tilbehør til
-
-
Produkt ID:1962520000Pakningsenhed:10 Styk
Empty enclosure, Plug housing, Variant 4 to IEC 61076-3-106, IP67
-
Produkt ID:1962530000Pakningsenhed:10 Styk
Empty enclosure, Plug housing, bending protection, Variant 4 to IEC 61076-3-106, IP67
-
Produkt ID:1012460000Pakningsenhed:10 Styk
Empty enclosure, Plug housing, bending protection, IP67
-
-
-
-
Produkt ID:1962560000Pakningsenhed:10 Styk
Empty enclosure, Plug housing, bending protection, Variant 1 to IEC 61076-3-106, IP67
-
Produkt ID:1962550000Pakningsenhed:10 Styk
Empty enclosure, Plug housing, Variant 1 to IEC 61076-3-106, IP67
