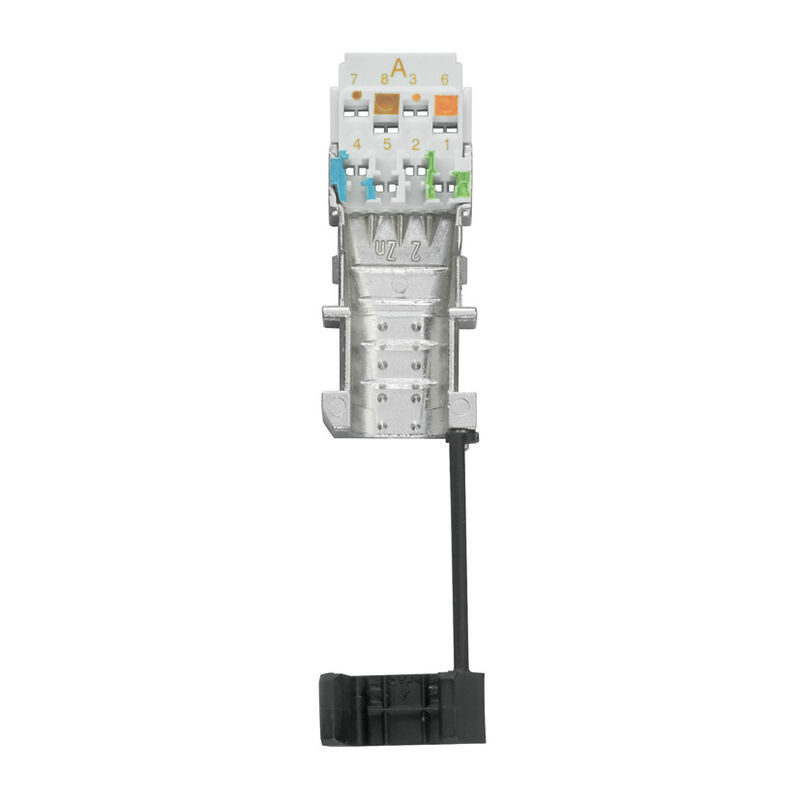

IE-PS-RJ45-FH-BK-A

RJ45 IDC plug, Cat.6_A / Class E_A (ISO/IEC 11801 2010), 8-core, EIA/TIA T568 A

Produkt ID 1132040000

Egenskaber

General ordering data

Version	RJ45 IDC plug, Cat.6_A / Class E_A (ISO/IEC 11801 2010), 8-core, EIA/TIA T568 A
Order No.	1132040000
Type	IE-PS-RJ45-FH-BK-A
GTIN (EAN)	4032248912155
Qty.	10 Styk

Dimensions and weights

Net weight

19,8 g

Temperatures

Operating temperature

-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Fire load	77 kJ
Halogen	No
Material locking lever	PA UL94-V0
Material strain relief	PA UL94-V0
Connection 1	RJ45
Connection 2	IDC
Wiring	8-core EIA/TIA T568 A
Housing main material	Zinc diecast
Insulation cross-section, min.	0,85 mm
Insulation cross-section, max.	1,6 mm
Category	Cat.6_A / Class E_A (ISO/IEC 11801 2010)
Contact material	Phosphorus bronze
Contact surface	Gold over nickel
Connection diameter, solid	0.41...0.64 mm
Conductor connection cross-section, solid (AWG)	AWG 26/1...AWG 22/1
Conductor connection cross-section, solid	0.13...0.32 mm²
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26/7...AWG 22/7
Wire connection cross section, finely stranded, min.	0,141 mm²
Conductor connection cross-section, flexible	0.14...0.35 mm²
Conductor connection cross-section, extremely flexible	, Approval of the cable by Weidmüller necessary
Conductor connection cross-section, extremely flexible (AWG)	, Approval of the cable by Weidmüller necessary
Note, very finely stranded line connection	Approval of the cable by Weidmüller necessary
MICE classification M	M₁
MICE classification I	I₁
MICE classification C	C₁
MICE classification E	E₃
Sheath diameter, min.	5,5 mm
Sheath diameter, max.	8,5 mm
Shielding	360° all-round enclosure
Protection degree	IP20
Insertion force	≤ 30 N
Plugging cycles	750
Material insulator	PA UL94-V0
Ability to reconnect	≥ 10 cycles (for the same or larger cross-section)

Electrical properties

Contact resistance	≤ 20 mΩ
Current-carrying capacity at 50 °C	1 A
Dielectric strength, contact / contact	≥ 1000 V AC/DC
Dielectric strength, contact / shield	≥ 1500 V AC/DC
Insulation strength	≥ 500 MΩ
PoE / PoE+	conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities	PROFINET installation instructions
Certificate no. (cULus)	E316369
Connector standard	IEC 60603-7-51
IP protection classes	IEC 60529
UL standard for communication accessories	UL 1863

Downloads

Approval/Certificate/Document of Conformity	[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) [CC-Link IE-PS-RJ45-FH-BK](https://mdcop.weidmueller.com/mediadelivery/asset/900_58432)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_257112)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1132040000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1132040000)
User Documentation	[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065) [MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_67976)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183)

Classifications

ETIM 6.0	EC001121
ETIM 7.0	EC001121
ETIM 8.0	EC001121
ETIM 9.0	EC001121
ECLASS 9.0	27-44-03-90
ECLASS 9.1	27-44-03-90
ECLASS 10.0	27-44-03-90
ECLASS 11.0	27-44-03-90
ECLASS 12.0	27-44-03-90
ECLASS 13.0	27-44-03-90
ECLASS 14.0	27-44-03-90

Approvals

Approvals	![CCLINK](/picture/CCLINK.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E316369
