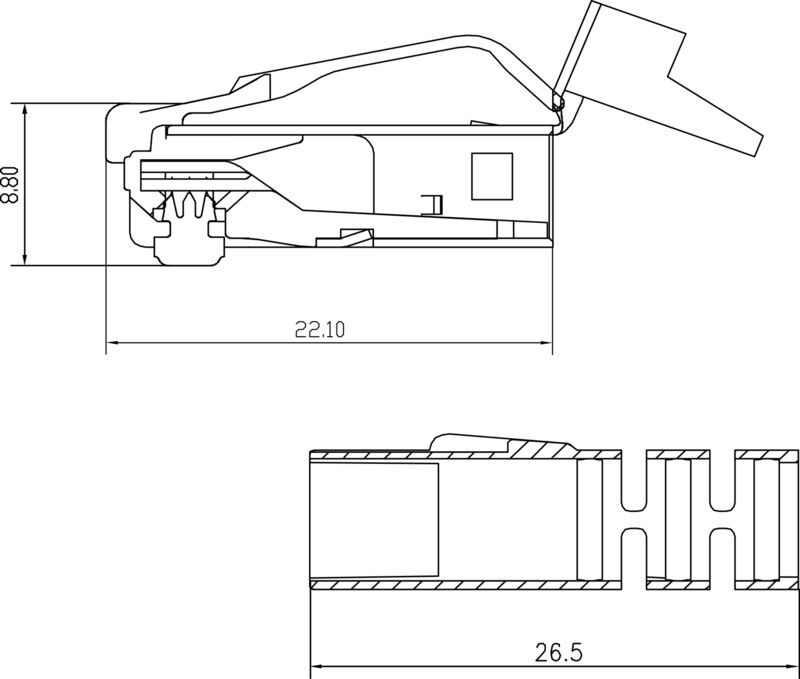

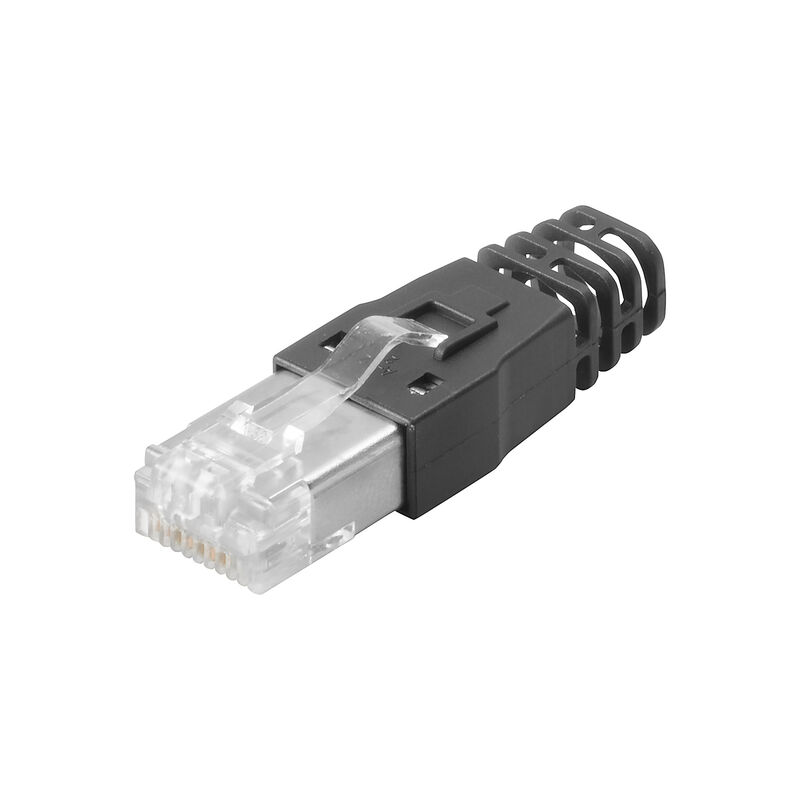

IE-PS-RJ45-TH-BK-P

RJ45 crimp plug, with kink protection; 6.5 - 7.5 mm, Cat.5 (ISO/IEC 11801)

Produkt ID 2584980000

Egenskaber

General ordering data

Version	RJ45 crimp plug, with kink protection; 6.5 - 7.5 mm, Cat.5 (ISO/IEC 11801)
Order No.	2584980000
Type	IE-PS-RJ45-TH-BK-P
GTIN (EAN)	4050118593556
Qty.	10 Styk

Dimensions and weights

Net weight

4,5 g

Temperatures

Storage temperature	-40 °C...70 °C
Operating temperature	-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Connection 1	RJ45
Connection 2	Crimp
Description of article	with kink protection; 6.5 - 7.5 mm
Wiring	PROFINET
Colour	Miscellaneous
Insulation cross-section, min.	1,3 mm
Insulation cross-section, max.	1,6 mm
Category	Cat.5 (ISO/IEC 11801)
Contact material	Copper alloy
Connection diameter, solid	0.57...0.64 mm
Conductor connection cross-section, solid (AWG)	AWG 23...AWG 22
Connection diameter, flexible	0.57...0.64 mm
Conductor connection cross-section, flexible (AWG)	AWG 23...AWG 22
Conductor connection cross-section, flexible	...0.35 mm²
Sheath diameter, max.	7,5 mm
Bending protection sleeve material	Polyamide PA6, UL 94-V0
Shielding	360° all-round enclosure
Protection degree	IP20
Plugging cycles	750

Electrical properties

Contact resistance	≤ 10 mΩ
Dielectric strength, contact / contact	≥ 1000 V AC/DC
Dielectric strength, contact / shield	≥ 1500 V AC/DC
Insulation strength	500 MΩ
PoE / PoE+	conforming to IEEE 802.3af
Rated current	1.5 A
Rated voltage	150 V

General standards

Connector standard

IEC 60603-7

Downloads

Approval/Certificate/Document of Conformity	[PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_252725)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2584980000)
User Documentation	[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065) [MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93591)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001121
ETIM 7.0	EC001121
ETIM 8.0	EC001121
ETIM 9.0	EC001121
ECLASS 9.0	27-44-03-90
ECLASS 9.1	27-44-03-90
ECLASS 10.0	27-44-03-90
ECLASS 11.0	27-44-03-90
ECLASS 12.0	27-44-03-90
ECLASS 13.0	27-44-03-90
ECLASS 14.0	27-44-03-90

Approvals

ROHS

Conform
