Egenskaber

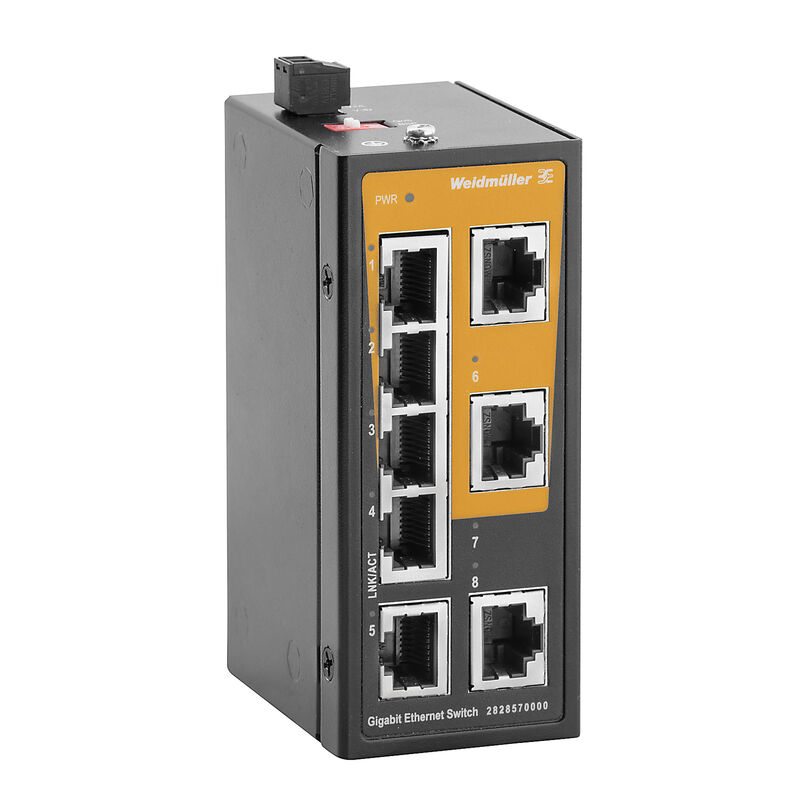

| Version | Network switch, unmanaged, Gigabit Ethernet, Number of ports: 8x RJ45, IP40, -10 °C...60 °C |
| Order No. | 2828570000 |
| Type | IE-SW-ELB-08-8GT |
| GTIN (EAN) | 4064675369912 |
| Qty. | 1 Styk |
| Depth | 64 mm |
| Depth (inches) | 2,52 inch |
| Height | 103 mm |
| Height (inches) | 4,055 inch |
| Width | 43,5 mm |
| Width (inches) | 1,713 inch |
| Net weight | 195 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -10 °C...60 °C |
| Humidity | 5 to 95 % (non-condensing) |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 95f06c58-199a-4ab7-817c-c2503ba62133 |
| EMC standards |
EN 55032
EN 55024 CISPR 32 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 Vrms IEC 61000-4-8 |
| Free fall | According to IEC 60068-2-31 |
| Safety standard |
UL 61010-1
UL 61010-2-201 |
| Shock | according to IEC 60068-2-27 |
| Vibration | according to IEC 60068-2-6 |
| Humidity | 5 to 95 % (non-condensing) |
| Operating altitude |
|
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | -10 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Time interval | 5 years |
| Function DIP switch |
1x for enabling QoS (according to IEEE 802.1p)
1x for enabling/disabling the broadcast storm protection |
| LED indicator |
Power LED: PWR
Port LED: LNK/ACT, 10/100M (RJ45 port) |
| Number of ports | 8x RJ45 |
| RJ45 ports |
10/100/1000BaseT(X)
auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port |
| Network traffic filter | Quality of Service (QoS) |
| Industrial protocol support |
PROFINET device acc. to conformance class A
CC-Link IE Field CC-Link IE TSN CC-A |
| MTBF |
|
| Connection type | 1 removable 2-pin terminal block |
| Current consumption |
|
| Overload current protection | Yes |
| Reverse polarity protection | Yes |
| Voltage supply |
12/24/48 V DC
24 V AC 1 single input |
| Voltage supply range |
|
| Bandwidth backplane | 16 Gbit/s |
| Jumbo frame support | up to 9 KB |
| MAC table size | 4 K |
| Packet buffer size | 1,5 Mbit |
| Housing main material | Metal |
| Protection degree | IP40 |
| Speed | Gigabit Ethernet |
| Switch | unmanaged |
| Type of mounting | DIN rail |
| Data switching | Store and Forward |
| Flow control | IEEE 802.3x flow control |
| Standard |
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX IEEE 802.3ab for 1000BASE-T IEEE 802.3x for flow control IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS) |
| Approval/Certificate/Document of Conformity |
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_303320)
[CC-Link IE Field certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_318135) [CC-Link IE TSN certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_318136) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_298742) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_300131) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_301088) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304009) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2828570000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2828570000) |
| User Documentation | [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_302767) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000734 |
| ETIM 7.0 | EC000734 |
| ETIM 8.0 | EC000734 |
| ETIM 9.0 | EC000734 |
| ECLASS 9.0 | 19-17-01-06 |
| ECLASS 9.1 | 19-17-01-06 |
| ECLASS 10.0 | 19-17-04-02 |
| ECLASS 11.0 | 19-17-04-02 |
| ECLASS 12.0 | 19-17-04-02 |
| ECLASS 13.0 | 19-17-04-02 |
| ECLASS 14.0 | 19-17-04-02 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
