IE-XR-RJ45/RJ45-2
IE-XR-RJ45/RJ45-2

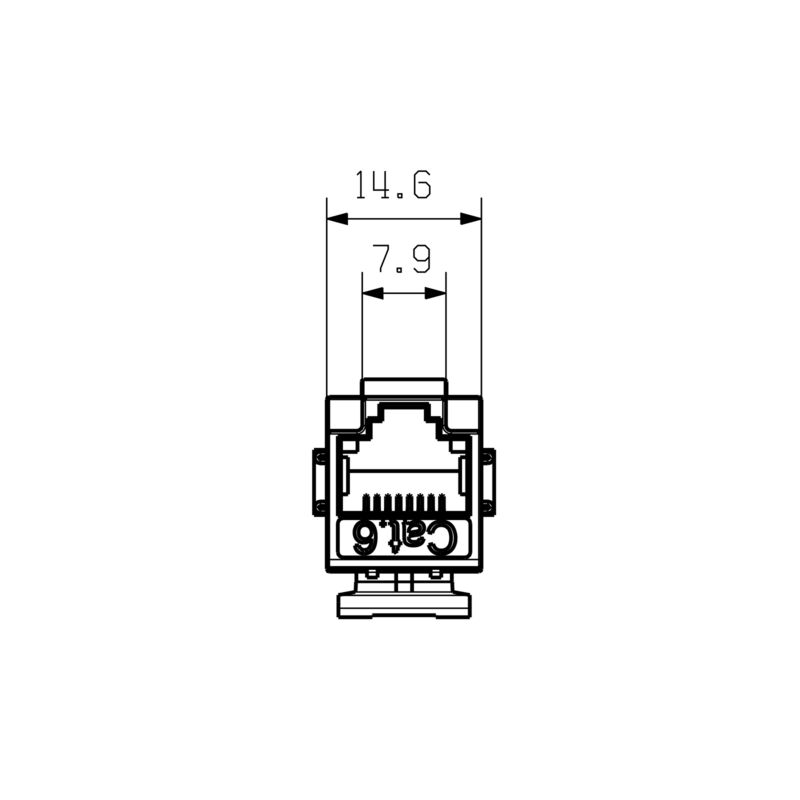

Dimensioned drawing
IE-XR-RJ45/RJ45-2

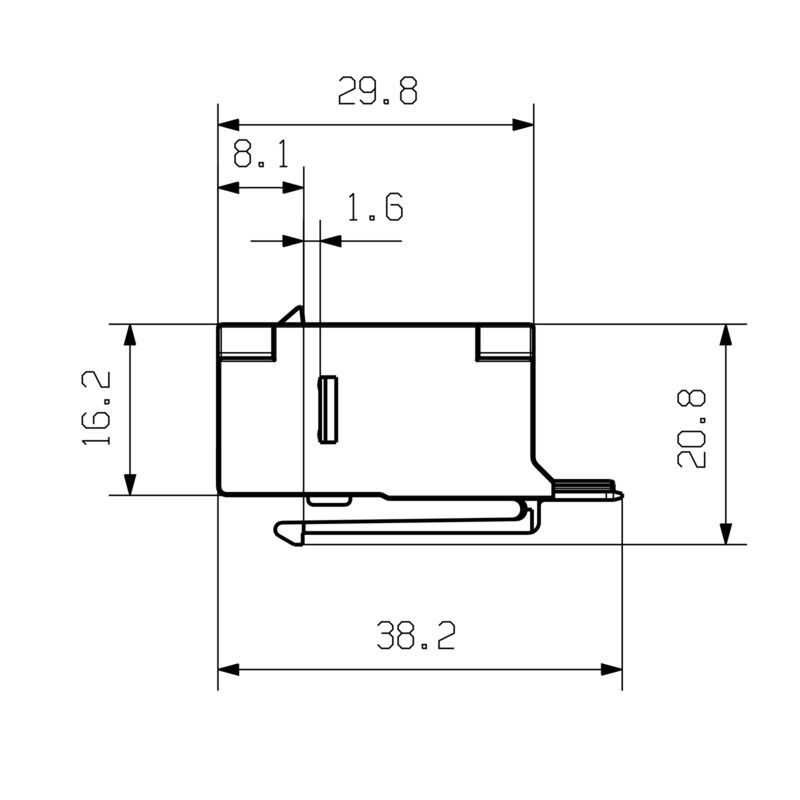

Dimensioned drawing
IE-XR-RJ45/RJ45-2

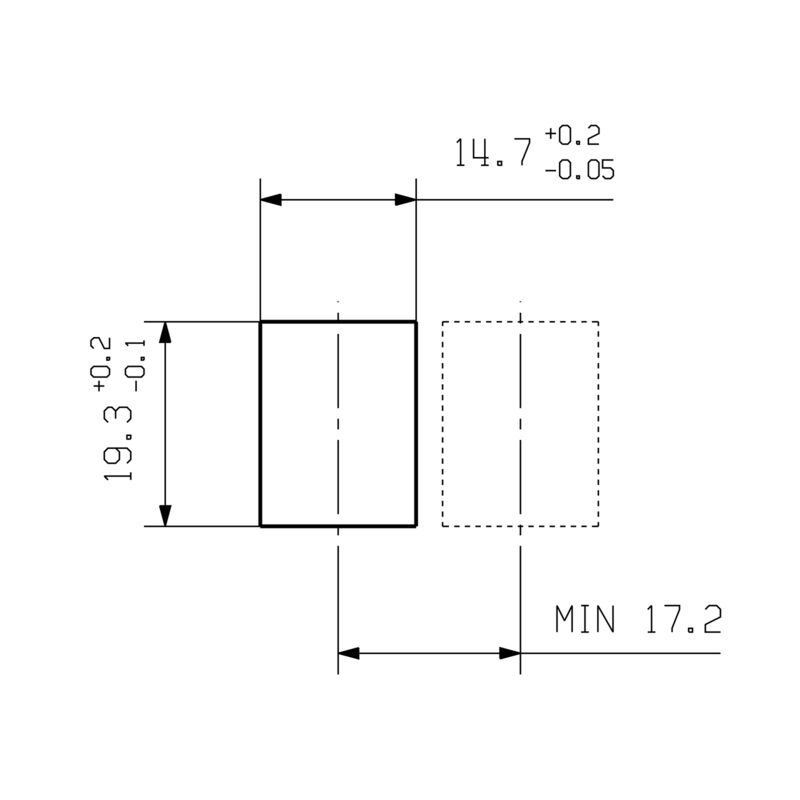

Installation cut-out

IE-XR-RJ45/RJ45-2

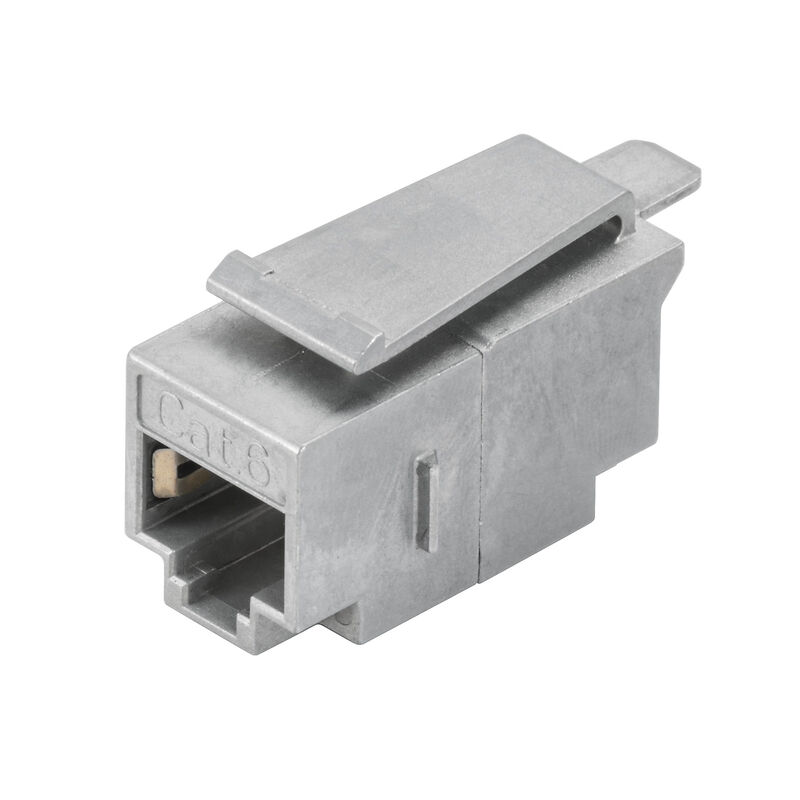

Mounting flange, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20

Item No. 8952950000
Download data sheet Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 3
Dopuszczenia General ordering data Wymiary i masa Temperatury Environmental Product Compliance Dati generali Electrical properties General standards Classifications

Dopuszczenia

ROHS
Zgodny

General ordering data

Version
Mounting flange, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20
Order No.
8952950000
Type
IE-XR-RJ45/RJ45-2
GTIN (EAN)
4032248744329
Ilość
24 szt.

Wymiary i masa

Masa netto
21,333 g

Temperatury

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Bez SVHC powyżej 0,1 wt%

Dati generali

Connection 1
RJ45
Kapslingsmaterial
Zinkpressgjutning
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Shielding
360° shield contact
Protection degree
IP20
Insertion force
≤ 30 N
Plugging cycles
750

Electrical properties

Contact resistance
≤ 20 mΩ
Current-carrying capacity (at 50 °C)
1 A
Dielectric strength, contact / contact
≥ 1000 V AC/DC
Dielectric strength, contact / shield
≥ 1500 V AC/DC
PoE / PoE+
secondo IEEE 802.3at

General standards

Connector standard
IEC 60603-7-5

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
