Egenskaber

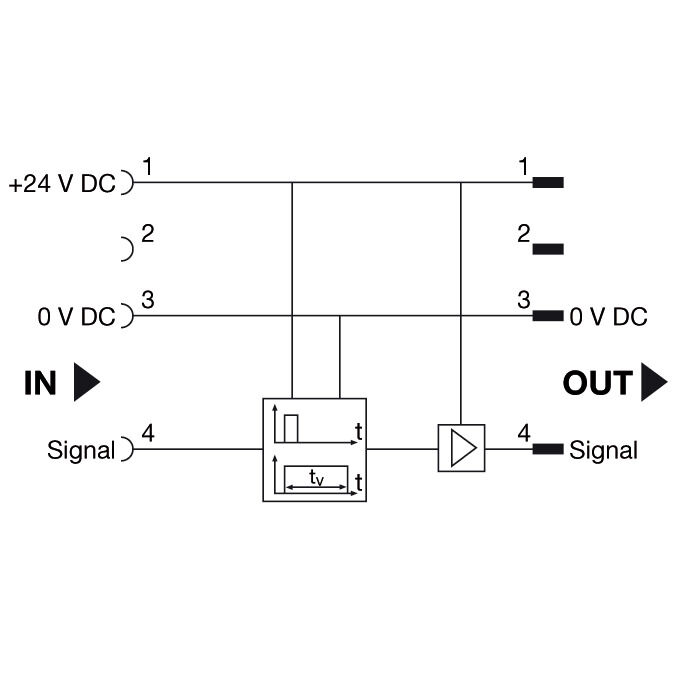

| Version | JACKPAC, Pulse stretcher, Number of contacts: 1, NO contact, AgSnO, Rated control voltage: 18...24...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded |
| Order No. | 8836630000 |
| Type | JPTA100MS 24VDC PNP M12 |
| GTIN (EAN) | 4032248544264 |
| Qty. | 1 Styk |
| Depth | 83 mm |
| Depth (inches) | 3,268 inch |
| Height | 14,4 mm |
| Height (inches) | 0,567 inch |
| Width | 36 mm |
| Width (inches) | 1,417 inch |
| Net weight | 50 g |
| Storage temperature | -20 °C...85 °C |
| Operating temperature | 0 °C...60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e07945fd-9150-48b3-990d-28d78ed7c6c9 |
| Rated control voltage | 18...24...30 V DC |
| Rated control voltage | 24 V DC ± 25 % |
| Rated current DC | 3,5...7,0...10,0 mA |
| Min. pulse duration | 1 ms |
| Rated control voltage | 18...24...30 V DC |
| Continuous current |
|
| Max. switching voltage, DC | 30 V |
| Continuous current | 0.4 A |
| Switch-off delay | 100 ms |
| Switch-off delay |
|
| Switch-off delay | ≤ 100 ms |
| Max. switching current | 400 mA |
| Continuous current | 0.4 A |
| Max. switching current | 400 mA |
| Switch-off delay | 100 ms |
| Suitable for front mounting | No |
| Test button available | No |
| Mechanical switch position indicator | No |
| Rated voltage | 32 V |
| Surge voltage category | I |
| Pollution severity | 2 |
| Protection degree | IP67 |
| Impulse withstand voltage | 330 V |
| Rated voltage | 32 V |
| Pollution severity | 2 |
| Surge voltage category | I |
| Impulse withstand voltage | 330 V |
| Protection degree | IP67 |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULus) | E141197 |
| Switching voltage, max. | 30 V DC |
| Certificate no. (cULus) | E141197 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151639) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8836630000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8836630000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001439 |
| ETIM 7.0 | EC001439 |
| ETIM 8.0 | EC001439 |
| ETIM 9.0 | EC001439 |
| ECLASS 9.0 | 27-37-16-05 |
| ECLASS 9.1 | 27-37-16-05 |
| ECLASS 10.0 | 27-37-16-05 |
| ECLASS 11.0 | 27-37-16-05 |
| ECLASS 12.0 | 27-37-16-05 |
| ECLASS 13.0 | 27-37-16-05 |
| ECLASS 14.0 | 27-37-16-05 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
