Eigenschappen

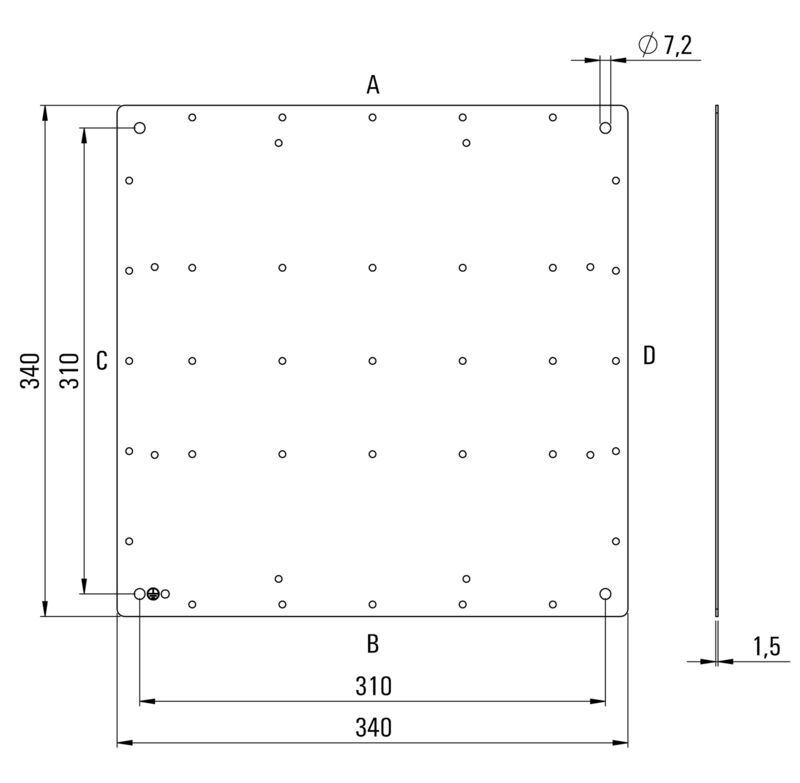

| Version | Klippon EB (Essential Box), Mounting plate, Height: 340 mm, Width: 340 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, silver |
| Order No. | 8000074173 |
| Type | KEB MOPL 4040 MSZN |
| GTIN (EAN) | 4064675425182 |
| Qty. | 1 items |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Height | 340 mm |
| Height (inches) | 13,386 inch |
| Width | 340 mm |
| Width (inches) | 13,386 inch |
| Net weight | 1.350 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Sheet steel |
| Material thickness | 1,5 mm |
| Surface finish | galvanized |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305311) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000074173) |
| Catalogues | [Calogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ETIM 10.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ECLASS 15.0 | 27-40-06-39 |
| ROHS | Conform |
