Egenskaber

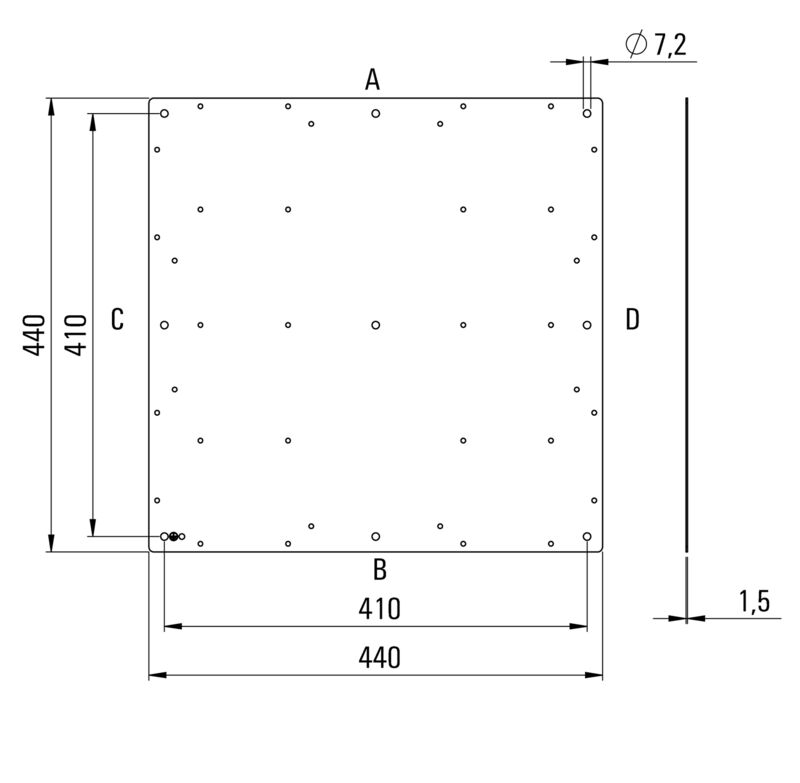

| Version | Klippon EB (Essential Box), Mounting plate, Height: 440 mm, Width: 440 mm, Depth: 1.5 mm, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 8000074322 |
| Type | KEB MOPL 5050 S2N H |
| GTIN (EAN) | 4064675425311 |
| Qty. | 1 Styk |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Height | 440 mm |
| Height (inches) | 17,323 inch |
| Width | 440 mm |
| Width (inches) | 17,323 inch |
| Net weight | 2.245 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Stainless steel 1.4301 (304) |
| Material thickness | 1,5 mm |
| Surface finish | untreated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224948) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000074322) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:8000071024Pakningsenhed:1 Styk
Klippon EBx HS (Essential Box Ex - Hinge Screw), Empty enclosure, Height: 500 mm, Width: 500 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), Brushed, silver
