Egenskaber

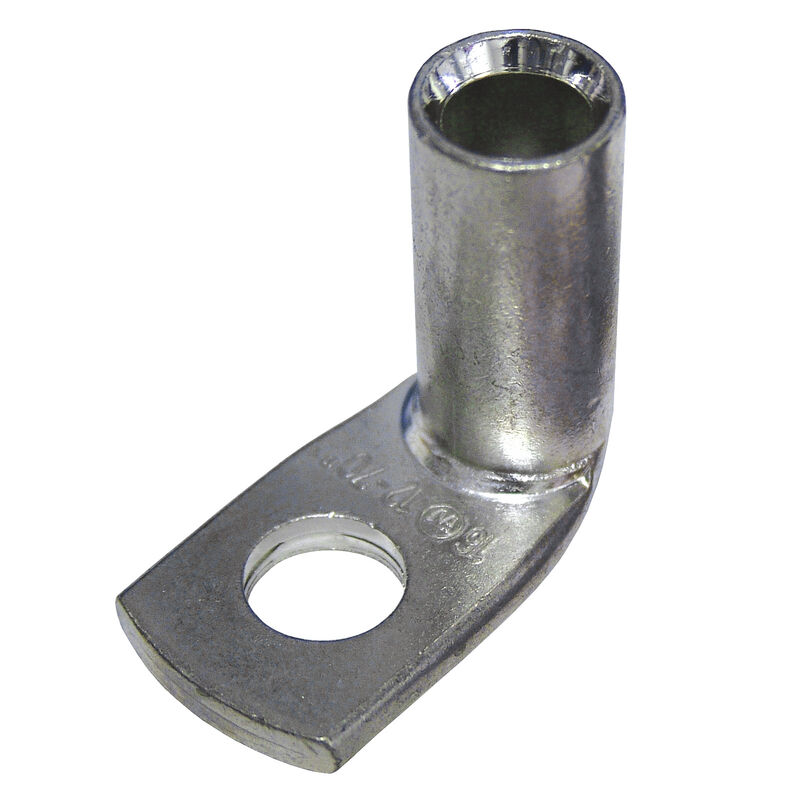

| Version | cable lug, terminal end,70 mm² |
| Order No. | 1497640000 |
| Type | KWPN-M8/-70 90 |
| GTIN (EAN) | 4050118307047 |
| Qty. | 25 Styk |
| Net weight | 59,3 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Version | DIN series 46235, 90° |
| Conductor cross-section | 70 mm² |

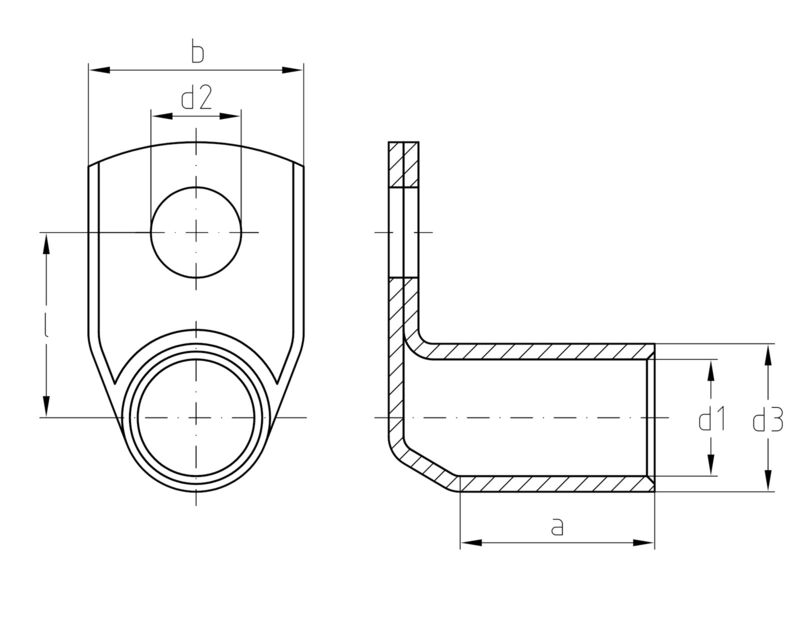

| Connection length (I) | 20,8 mm |
| Flange width (b) | 24 mm |
| Hole | M8 |
| Identification number Cu | 16 K |
| Inside diameter of flange (d2) | 8,4 mm |
| Inside diameter of shaft (d1) | 11,3 mm |
| Insulation | not available |
| Outside diameter of shaft (d3) | 16,5 mm |
| Shaft length (a) | 28 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1497640000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001050 |
| ETIM 7.0 | EC001050 |
| ETIM 8.0 | EC001050 |
| ETIM 9.0 | EC001050 |
| ECLASS 9.0 | 27-40-02-03 |
| ECLASS 9.1 | 27-40-02-03 |
| ECLASS 10.0 | 27-40-02-03 |
| ECLASS 11.0 | 27-40-02-03 |
| ECLASS 12.0 | 27-40-02-03 |
| ECLASS 13.0 | 27-40-02-03 |
| ECLASS 14.0 | 27-40-02-03 |
| ROHS | Conform |
