Egenskaber
| Version | cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm² |
| Order No. | 9200090000 |
| Type | LIR 1,5M4 V |
| GTIN (EAN) | 4032248409853 |
| Qty. | 100 Styk |
| Depth | 5,9 mm |
| Depth (inches) | 0,232 inch |
| Width | 22,4 mm |
| Width (inches) | 0,882 inch |
| Net weight | 0,71 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |

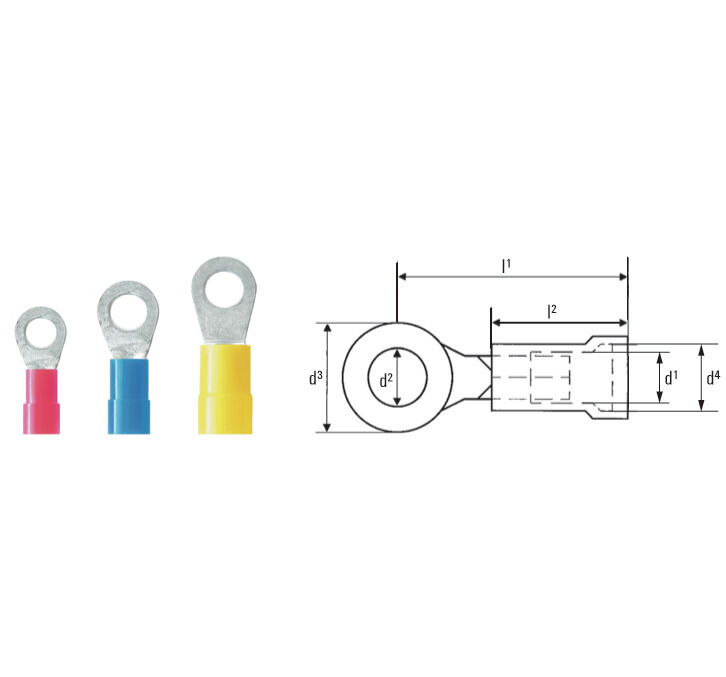

| Description of article | Insulated ring-cable connector 1.5 mm² / M4 |
| Conductor cross-section | 1,5 mm² |
| Conductor cross-section, max. | 1,5 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Connection density (S1) | 0,75 mm |
| Connection length (I) | 18,3 mm |
| Dimension | M 4 |
| Dimension (bolt) | M 4 |
| Identification colour | red |
| Inside diameter (d1) | 4,3 mm |
| Insulation | Available |
| Material/plastic | PVC |
| Outside diameter (d) | 8 mm |
| Plastic collar diameter (D) | 4 mm |
| Plastic collar length (b) | 11,3 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9200090000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001059 |
| ETIM 7.0 | EC001059 |
| ETIM 8.0 | EC001059 |
| ETIM 9.0 | EC001059 |
| ECLASS 9.0 | 27-40-02-92 |
| ECLASS 9.1 | 27-40-02-12 |
| ECLASS 10.0 | 27-40-02-92 |
| ECLASS 11.0 | 27-40-02-92 |
| ECLASS 12.0 | 27-40-02-92 |
| ECLASS 13.0 | 27-40-02-92 |
| ECLASS 14.0 | 27-40-02-92 |
| ROHS | Conform |
