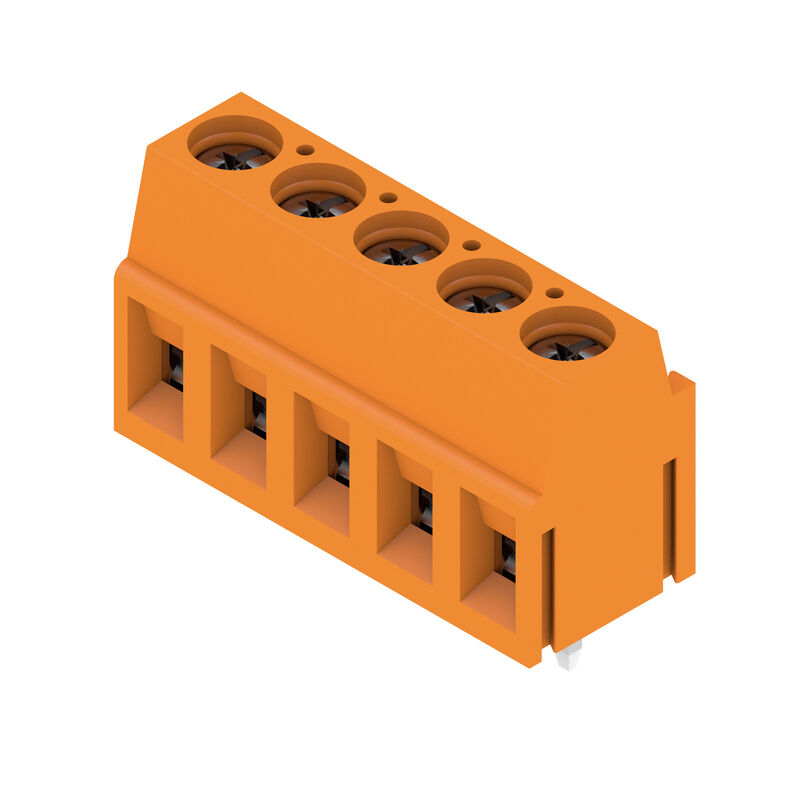

LM 5.00/05/90 3.5SN OR BX
Product image
LM 5.00/05/90 3.5SN OR BX
Product image
LM 5.00/05/90 3.5SN OR BX
Dimensional drawing
LM 5.00/05/90 3.5SN OR BX
Graph
Derating curve valid for 5.00 & 5.08 pitch

LM 5.00/05/90 3.5SN OR BX

Printed circuit board terminals, 5.00 mm, Number of poles: 5, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.5 mm², Box

Product ID 1845310000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 3 Verwante producten 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E60693

General ordering data

Utförande
Printed circuit board terminals, 5.00 mm, Number of poles: 5, 90°, Solder pin length (l): 3.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.5 mm², Box
Art.nr.
1845310000
Typ
LM 5.00/05/90 3.5SN OR BX
GTIN (EAN)
4032248359035
Förp.
72 items
Product data
IEC: 630 V / 17.5 A / 0.2 - 2.5 mm²
UL: 300 V / 15 A / AWG 24 - AWG 14
Packaging
Box

Dimensions and weights

Djup
10 mm
Byggdjup (tum)
0,394 inch
Höjd
17,3 mm
Height (inches)
0,681 inch
Height of lowest version
13,8 mm
Bredd
25,55 mm
Width (inches)
1,006 inch
Nettovikt
3,96 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Produktfamilj
OMNIMATE Signal - series LM
Ledaranslutningsteknik
Clamping yoke connection
Montering på kretskortet
THT solder connection
Ledarutgångsriktning
90°
Delning i mm (P)
5 mm
Delning i tum (P)
0,197 "
Antal poler
5
Polradstal
1
Uppgraderbar av kunden
Yes
Number of rows
1
maximalt radmonterbara poler per rad
24
Lödstiftlängd (l)
3,5 mm
Dimensioner för lödstift
0.95 x 0.8 mm
Diameter bestyckningshål (D)
1,3 mm
Tolerans diameter bestyckningshål (D)
+ 0,1 mm
Antal lödstift per pol
1
Skruvmejselklinga
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,5 Nm
Clamping screw
M 2.5
Stripping length
6 mm
L1 in mm
20 mm
L1 in inches
0,787 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
1.20 mΩ
Insulation resistance
≥ 108 Ω

Material data

Isoleringsmaterial
Wemid (PA)
Färgkod
orange
Färgtabell (jämförbar)
RAL 2000
Isoleringsmaterialgrupp
I
CTI (Comparative Tracking Index)
≥ 600
Isolationsmotstånd
≥ 108 Ω
Brännbarhetsklass enligt UL 94
V-0
Kontaktmaterial
Cu-alloy
Kontaktyta
tinned
Ytbehandling
1-3 μm Ni
4-6 μm SN
Typ av förtenning
matt
Skiktstruktur för lödanslutningen
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Anslutningsområde, min.
0,2 mm²
Anslutningsområde, max.
2,5 mm²
Ledardiameter, AWG, min.
AWG 24
Ledardiameter, AWG, max
AWG 14
entrådig, min. H05(07) V-U
0,2 mm²
entrådig, max. H05(07) V-U
2,5 mm²
fintrådig, min. H05(07) V-K
0,2 mm²
fintrådig, max. H05(07) V-K
2,5 mm²
med AEH med krage DIN 46 228/4, min.
0,25 mm²
med ändhylsa med krage DIN 46 228/4, max.
1,5 mm²
med ändhylsa, DIN 46228 pt 1, min.
0,25 mm²
med ändhylsa enligt DIN 46 228/1, max.
1,5 mm²
Passtift enligt EN 60999 a x b; ø
2.4 mm x 1.5 mm; 1.9mm
Anslutningsbar ledare
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Referenstext
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Märkström, min. antal poler (Tu=20°C)
17,5 A
Märkström, max. antal poler (Tu=20°C)
16 A
Märkström, min. antal poler (Tu=40°C)
17,5 A
Märkström, max. antal poler (Tu=40°C)
14,2 A
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
630 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
320 V
Märkspänning vid överspänningskat./Nedsmutsningsgrad III/3
250 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad II/2
4 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
4 kV
Märkstötspänning vid överspänningsk./Nedsmutsningsgrad III/3
4 kV
Korttidströmhållfasthet
3 x 1s with 120 A

Rated data acc. to CSA

Institut (CSA)
CSA
Certifikat nr. (CSA)
200039-1815154
Märkspänning (användargrupp B / CSA)
300 V
Märkspänning (användargrupp D / CSA)
300 V
Märkström (användargrupp B / CSA)
18 A
Märkström (användargrupp D / CSA)
10 A
Ledardiameter AWG, min.
AWG 24
Ledardiameter AWG, max.
AWG 14
Hänvisning till godkännandevärden
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certifikat nr (cURus)
E60693
Märkspänning (användargrupp B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
15 A
Märkström (användargrupp D / UL 1059)
10 A
Ledardiameter AWG, min.
AWG 24
Ledardiameter AWG, max.
AWG 14
Hänvisning till godkännandevärden
Specifications are maximum values, details - see approval certificate.

Packing

Förpackning
Box
VPE-längd
151 mm
VPE-bredd
92 mm
VPE-höjd
51 mm

Type tests

Test: Hållfasthet för märkningar
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, type of material, approval marking UL, approval marking CSA, durability
  • Evaluation:
    available
Test: Klämbar area
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Test beträffande ledare som skadats och lossnat oavsiktligt
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Frånslagstest
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K1.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Important note

IPC-konformitet
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hänvisningstext
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
