Egenskaber

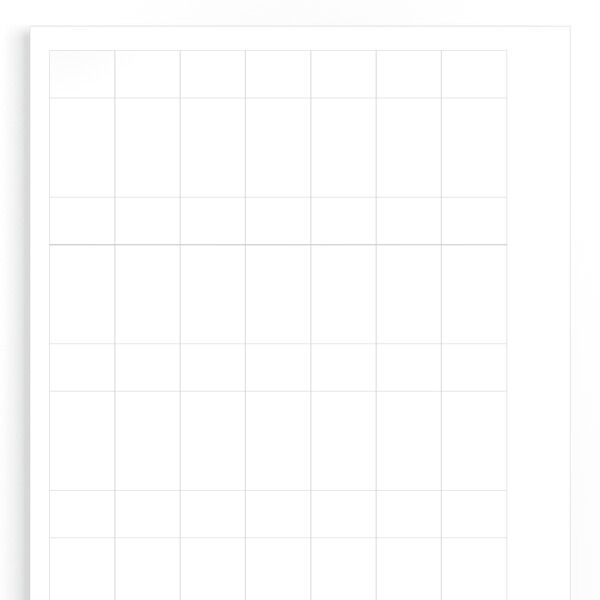

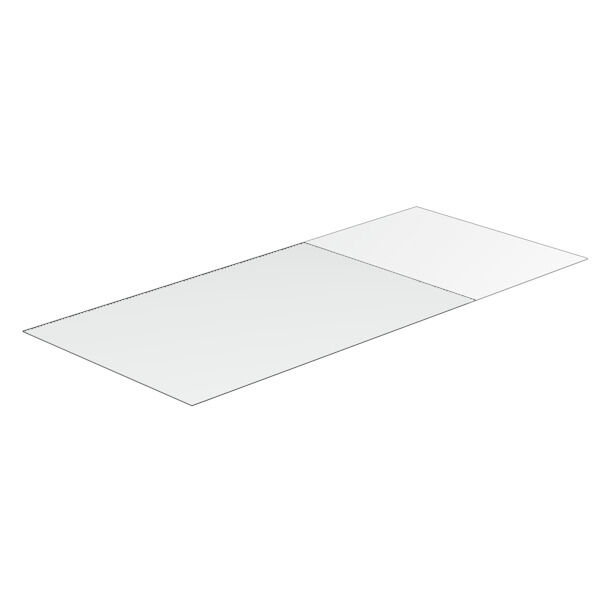

| Version | LaserMark, Conductor and cable markers, 5.9 - 12.3 mm, 25.4 x 57 mm, white |
| Order No. | 1768380000 |
| Type | LM WO 25.4/57 WS |
| GTIN (EAN) | 4032248110025 |
| Qty. | 10 Styk |
| Depth | 0,025 mm |
| Depth (inches) | 0,001 inch |
| Height | 25,4 mm |
| Height (inches) | 1 inch |
| Width | 57 mm |
| Width (inches) | 2,244 inch |
| Net weight | 10 g |
| Operating temperature range | -40...150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Acrylate |
| Colour | white |
| Halogen | No |
| Material | Polyester film |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 Label sheet = 35 Conductor and cable markers |
| Number of markers per packaging unit | 350 |
| Number of markers per packaging unit |
|
| Number per sheet | 35 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 25.4 x 18 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 57 mm |
| Conductor cross-section, max. | 120 mm² |
| Conductor cross-section, min. | 25 mm² |
| Conductor O.D. | 5.9 - 12.3 mm |
| Conductor O.D., max. | 12,3 mm |
| Conductor O.D., min. | 5,9 mm |
| Cross-section for connected wire | 25 - 120 mm² |
| Halogen | No |
| Text field height | 18,5 mm |
| Text field width | 25,4 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63507) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1768380000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1768380000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
