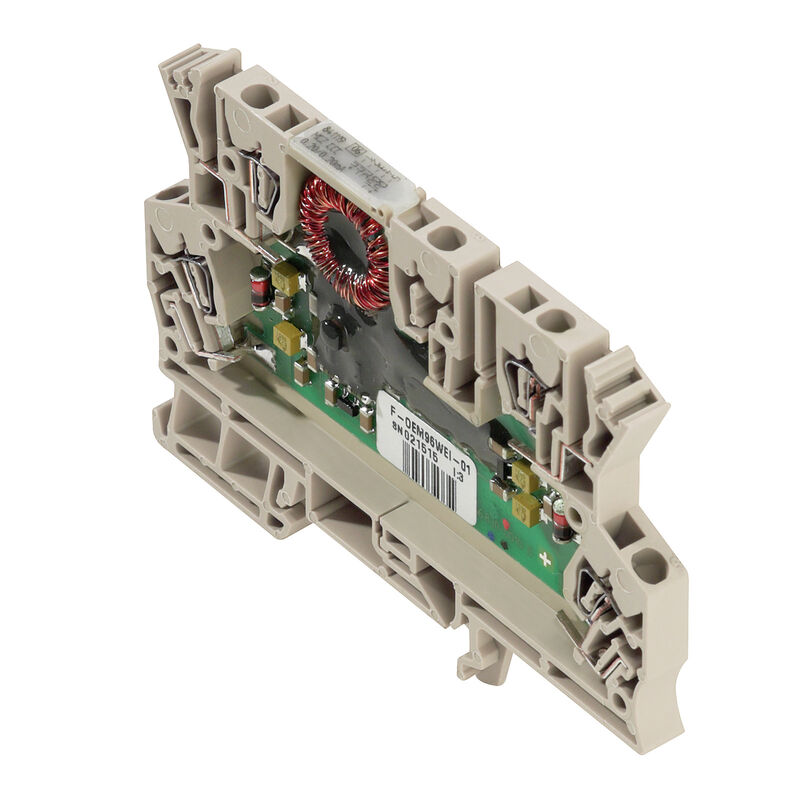

MCZ CCC 0-20MA/0-20MA

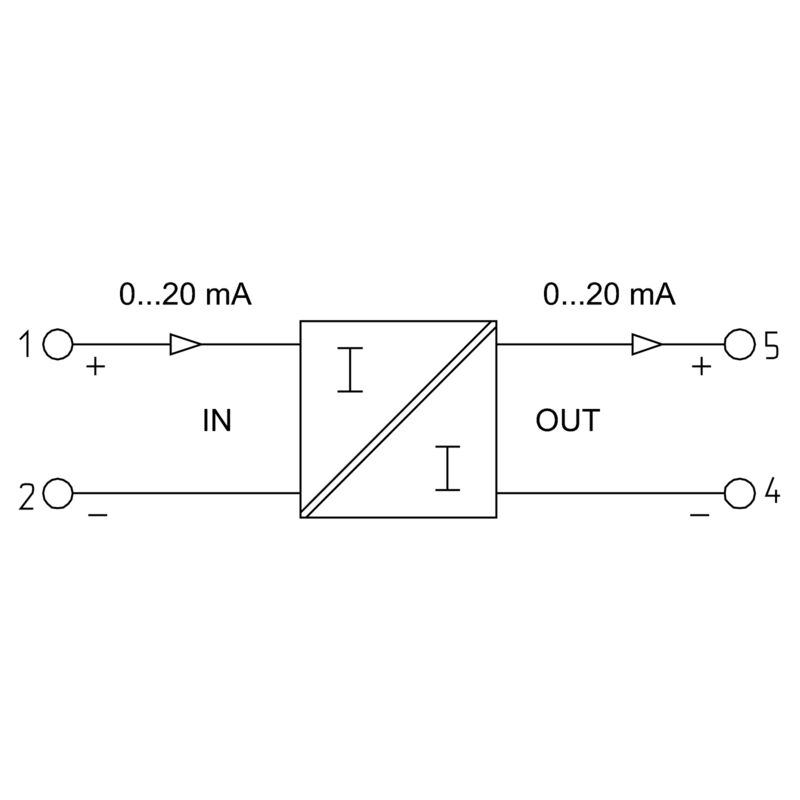

Passive isolator, Input : 0-20 mA, (loop powered), Output : 0-20 mA

Produkt ID 8411190000

Egenskaber

General ordering data

Version	Passive isolator, Input : 0-20 mA, (loop powered), Output : 0-20 mA
Order No.	8411190000
Type	MCZ CCC 0-20MA/0-20MA
GTIN (EAN)	4008190992736
Qty.	10 Styk

Dimensions and weights

Depth	63,2 mm
Depth (inches)	2,488 inch
Width	6 mm
Width (inches)	0,236 inch
Length	91 mm
Length (inches)	3,583 inch
Net weight	44,3 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...60 °C

Probability of failure

SIL in compliance with IEC 61508

None

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	35d83707-6a3b-45b5-b9f8-6ba8184c863e

Input

Input current	0(4)...20 mA current loop
Number of inputs	1
Pick-up current	<100 µA
Voltage drop	2.5....3 V at 20 mA

Output

Cut-off frequency (-3 dB)	100 Hz
Load impedance current	≤ 500 Ω
Number of outputs	1
Output current	0...20 mA

General data

Accuracy	<0.1 % of end value
Configuration	none
Galvanic isolation	between input/output
Long-term drift	0
Rail	TS 35
Temperature coefficient	≤ 50 ppm/K of measured value at 0 Ω load resistance
Voltage supply	via the input measuring circuit

Insulation coordination

EMC standards	EN 61000-6
Galvanic isolation	between input/output
Pollution severity	2
Rated voltage	100 V
Surge voltage category	I
Test voltage	0,3 kV

Connection data

Type of connection	Tension-clamp connection
Clamping range, rated connection	1,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	1,5 mm²
Wire connection cross section AWG, min.	AWG 26
Wire connection cross section AWG, max.	AWG 16
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	1,5 mm²
Wire cross-section, solid, min. (AWG)	AWG 26
Wire cross-section, solid, max. (AWG)	AWG 16
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross section, finely stranded, max.	1,5 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire cross-section, finely stranded, max. (AWG)	AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1,5 mm²

Downloads

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_172826)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55032)
Engineering Data	[Zuken E3.S](LINK/CAE_EN.html)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8411190000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8411190000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8411190000&norm=0)
User Documentation	[Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35954)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002653
ETIM 7.0	EC002653
ETIM 8.0	EC002653
ETIM 9.0	EC002653
ECLASS 9.0	27-21-01-20
ECLASS 9.1	27-21-01-20
ECLASS 10.0	27-21-01-20
ECLASS 11.0	27-21-01-20
ECLASS 12.0	27-21-01-20
ECLASS 13.0	27-21-01-20

Tender specification sheets

Long specification

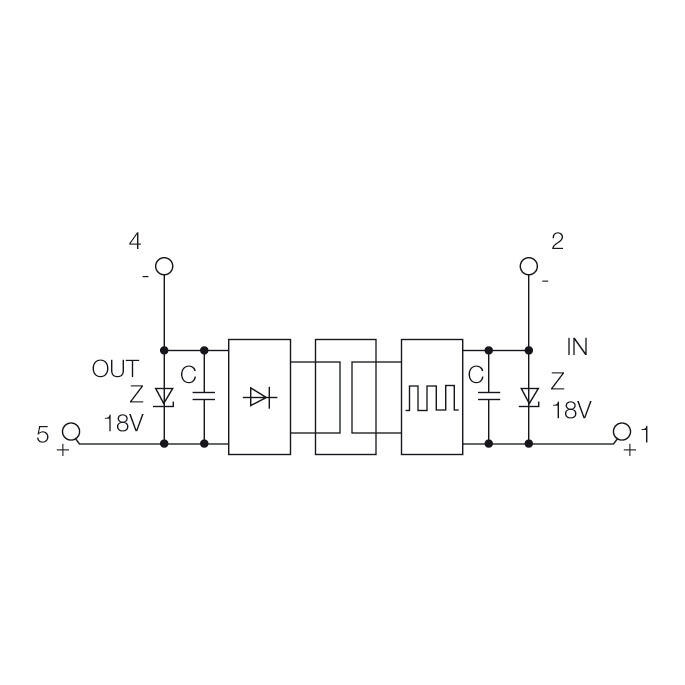

Standard signal passive isolator, input-loop powered
1-channel passive isolator in 6 mm width input-loop powered,
for transmitting and isolating analogue DC current signals 0/4...20 mA.

Add-on housing for TS35 rail mounting
Dimensions: L/W/H 91/ 6/ 63.2 mm
Tension-clamp connection / Nominal cross-section 1.5 mm²Protection degree: IP 20

Input                         0/4...20 mA
Voltage drop 2.5... 3 V at 20 mA
Output                                             0/4...20 mA
Load resistance             < 500 Ohm
Transmission error               < 0,1 % v. E.
Auxiliary power                                     0/4...20 mA input current loop
Ambient
temperature range -25 °C...+60 °C
Isolation                                EN 50178 , 2-way isolation up to 510 Veff
Approvals cURus, CSA

Type MCZ CCC 0-20mA/0-20mA

Short specification

Standard signal passive isolator, input-loop powered
1-channel signal passive isolator in 6 mm width with input current loop feed,
for transmitting and isolating analogue DC current signals from 0/4 to 20 mA

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E141197
