Egenskaber

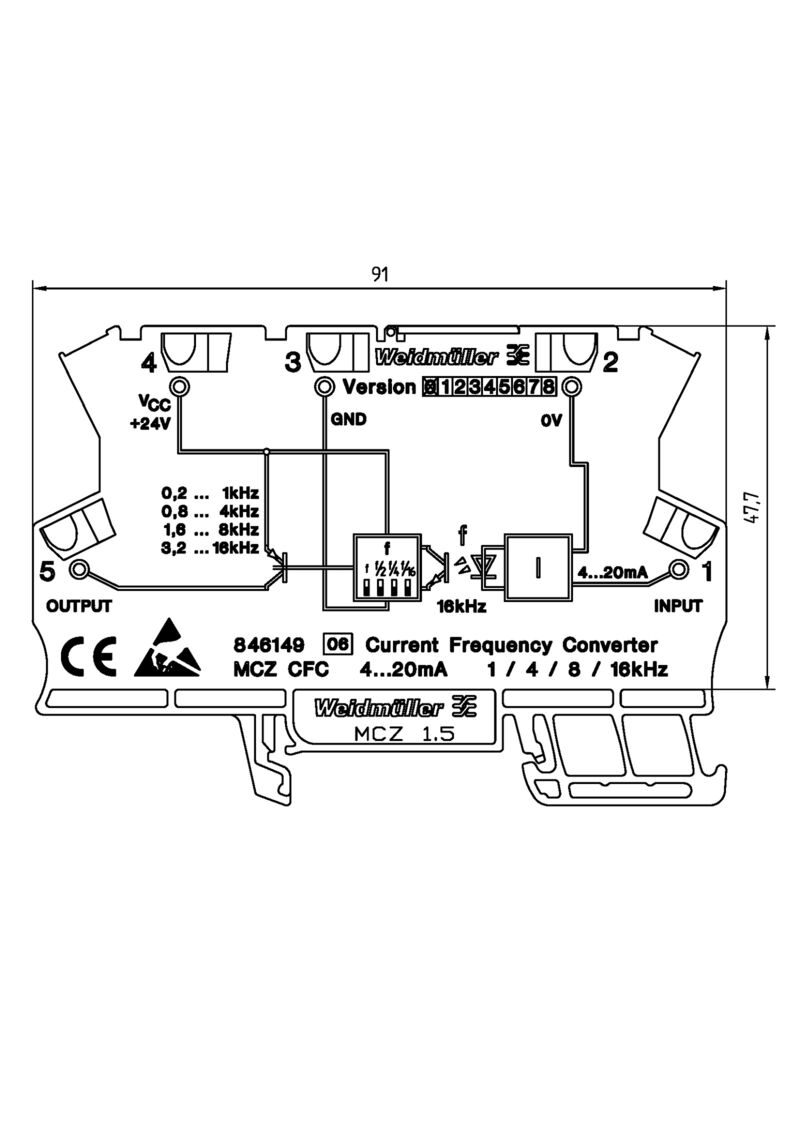

| Version | DC/f transformer, Input : 4-20 mA, Output frequency: 0...1/ 4/ 8/ 16 kHz |
| Order No. | 8461490000 |
| Type | MCZ CFC 4-20MA |
| GTIN (EAN) | 4032248037797 |
| Qty. | 10 Styk |
| Depth | 63,2 mm |
| Depth (inches) | 2,488 inch |
| Width | 6 mm |
| Width (inches) | 0,236 inch |
| Length | 91 mm |
| Length (inches) | 3,583 inch |
| Net weight | 27,5 g |
| Storage temperature | -20 °C...85 °C |
| Operating temperature | 0 °C...60 °C |
| SIL in compliance with IEC 61508 | None |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c2a21576-d875-4548-ae68-5e7f85ddf0c7 |
| Input current | 4...20 mA |
| Input resistance, current | 50 Ω |
| Number of inputs | 1 |
| Voltage drop | 5.8...6.4 V at 20 mA |
| Load impedance current | ≤ 600 Ω |
| Number of outputs | 1 |
| Output current | max. 20 mA |
| Output frequency | 0...1/ 4/ 8/ 16 kHz |
| Output level | PNP, Ub-0.7 V |
| Accuracy | 0.15 % v. FSR |
| Current consumption | 14 mA without load |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Long-term drift | 0 |
| Rail | TS 35 |
| Temperature coefficient | ≤ 250 ppm/K |
| Voltage supply | 24 V DC ± 10 % |
| EMC standards | EN 61000-6 |
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Impulse withstand voltage | 1.5 kV |
| Insulation voltage | 1 kV DC |
| Insulation voltage input or output/rail | 4 kVeff / 1 min. |
| Pollution severity | 2 |
| Rated voltage | 100 V |
| Surge voltage category | III |
| Test voltage | 0,3 kV |
| Type of connection | Tension-clamp connection |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 1,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35494) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96375) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8461490000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8461490000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8461490000&norm=0) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_43969) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 9.0 | EC002918 |
| ECLASS 9.0 | 27-21-01-28 |
| ECLASS 9.1 | 27-21-01-28 |
| ECLASS 10.0 | 27-21-01-28 |
| ECLASS 11.0 | 27-21-01-28 |
| ECLASS 12.0 | 27-21-01-28 |
| ECLASS 13.0 | 27-21-01-28 |
| Approvals |  |
| ROHS | Conform |
