Egenskaber
| Version | Tools, Stripping and cutting tool |
| Order No. | 9205760000 |

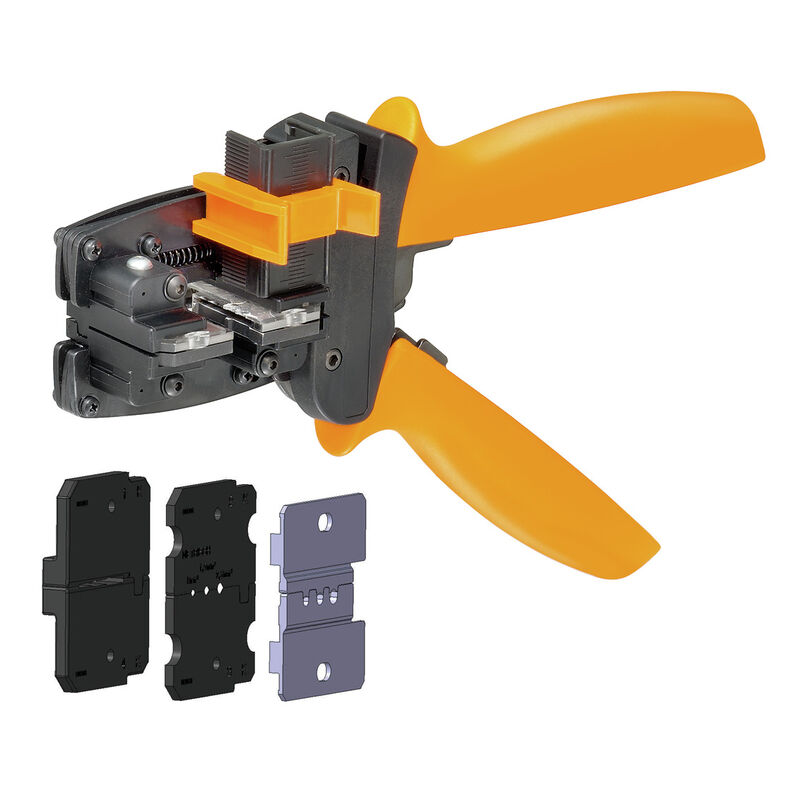

| Type | MULTI-STRIPAX GKW LW |
| GTIN (EAN) | 4032248790449 |
| Qty. | 1 Styk |
| Depth | 40 mm |
| Depth (inches) | 1,575 inch |
| Height | 85 mm |
| Height (inches) | 3,346 inch |
| Width | 250 mm |
| Width (inches) | 9,842 inch |
| Net weight | 550 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| Description of article | Stripping and cutting tool for GKW LW |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| max. cutting capacity, fine-strand | 6 mm² |
| max. cutting capacity, ribbon | 10,2 mm x 4 mm |
| max. cutting capacity, solid | 2,5 mm² |
| Stripping length, min. | 2 mm |
| Stripping range AWG, max. | 13 AWG |
| Stripping range AWG, min. | 14 AWG |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101170) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002109 |
| ETIM 7.0 | EC002109 |
| ETIM 8.0 | EC002109 |
| ETIM 9.0 | EC002109 |
| ECLASS 9.0 | 21-04-37-06 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-37-06 |
| ECLASS 11.0 | 21-04-37-06 |
| ECLASS 12.0 | 21-04-37-06 |
| ECLASS 13.0 | 21-04-37-06 |
| ECLASS 14.0 | 21-04-37-06 |
