Egenskaber
| Version | Pre-assembled cable, PAC, Cable LiYY, 0.25 mm² |
| Order No. | 7789648015 |

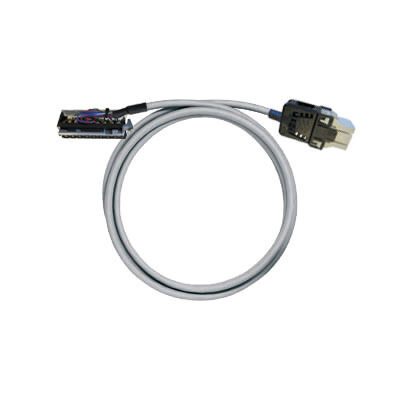

| Type | PAC-CJ1W-RV12-V0-1M5 |
| GTIN (EAN) | 4032248340552 |
| Qty. | 1 Styk |
| Net weight | 197 g |
| Storage temperature | -10...60 °C |
| Operating temperature | -10...50 |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant |
| Cable | Cable LiYY |
| Cable length | 1.5 |
| Connector PLC side | OMRON CJ-OD507-18P 18P |
| Interface connector | WEIDMUELLER RSV 12P MALE |
| Material | PVC |
| Number of poles, min. | 20-pole |
| Outer diameter | 8.6 ± 1 mm |
| Suitable for | Digital signals |
| Wire cross-section | 0,25 mm² |
| Capacity wire / shield | 300 pF/m |
| Capacity wire / wires | 300 pF/m |
| High voltage test | 1 KV/1s |
| Permissible current strength per path, max. | 1 A |
| Rated voltage | ≤ 250 Vdc ≤ 250 Vac |
| Resistance | ≤ 80 mΩ/m |
| Total current, max. | 3 A |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000237 |
| ETIM 7.0 | EC000237 |
| ETIM 8.0 | EC000237 |
| ETIM 9.0 | EC000237 |
| ECLASS 9.0 | 27-24-22-20 |
| ECLASS 9.1 | 27-24-22-20 |
| ECLASS 10.0 | 27-24-22-20 |
| ECLASS 11.0 | 27-24-22-20 |
| ECLASS 12.0 | 27-24-22-20 |
| ECLASS 13.0 | 27-24-22-20 |
| ECLASS 14.0 | 27-24-22-20 |
| ROHS | Conform |
