Egenskaber
| Version | Cable LiYCY, 0.14 mm² |
| Order No. | 1536820010 |

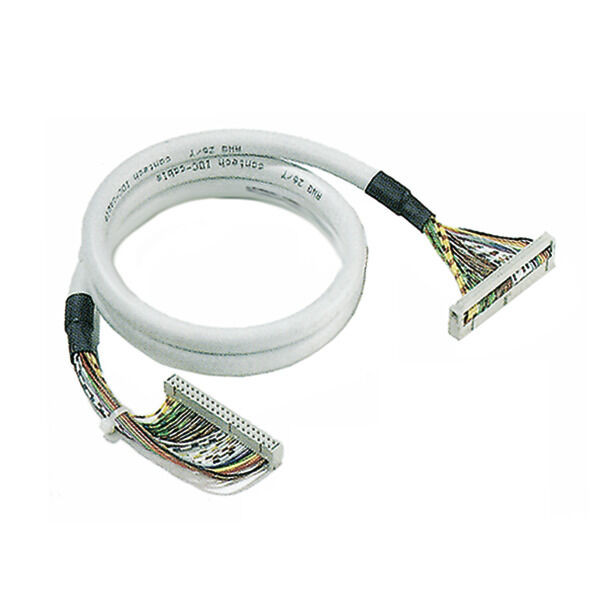

| Type | PAC-YOK-MIL50-V0-1M |
| GTIN (EAN) | 4032248217090 |
| Qty. | 1 Styk |
| Net weight | 215 g |
| Storage temperature | -10...60 °C |
| Operating temperature | -10...50 |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4bbf2c0d-0764-4fc8-bb24-9351c28c190d |
| Cable | Cable LiYCY |
| Cable length | 1 |
| Connector PLC side | HE10 50 P |
| Interface connector | HE10 50 P |
| Material | PVC |
| Number of poles, min. | 50-pole |
| Outer diameter | 11,5 ± 1 mm |
| Suitable for | Digital signals |
| Wire cross-section | 0,14 mm² |
| Capacity wire / shield | 300 pF/m |
| Capacity wire / wires | 300 pF/m |
| High voltage test | 1 KV/1s |
| Permissible current strength per path, max. | 1 A |
| Rated voltage | ≤ 60 Vdc ≤ 25 Vac |
| Resistance | ≤ 150 mΩ/m |
| Total current, max. | 3 A |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000237 |
| ETIM 7.0 | EC000237 |
| ETIM 8.0 | EC000237 |
| ETIM 9.0 | EC000237 |
| ECLASS 9.0 | 27-24-22-20 |
| ECLASS 9.1 | 27-24-22-20 |
| ECLASS 10.0 | 27-24-22-20 |
| ECLASS 11.0 | 27-24-22-20 |
| ECLASS 12.0 | 27-24-22-20 |
| ECLASS 13.0 | 27-24-22-20 |
| ECLASS 14.0 | 27-24-22-20 |
| ROHS | Conform |
