PAS CMR 4,5...10 A DC

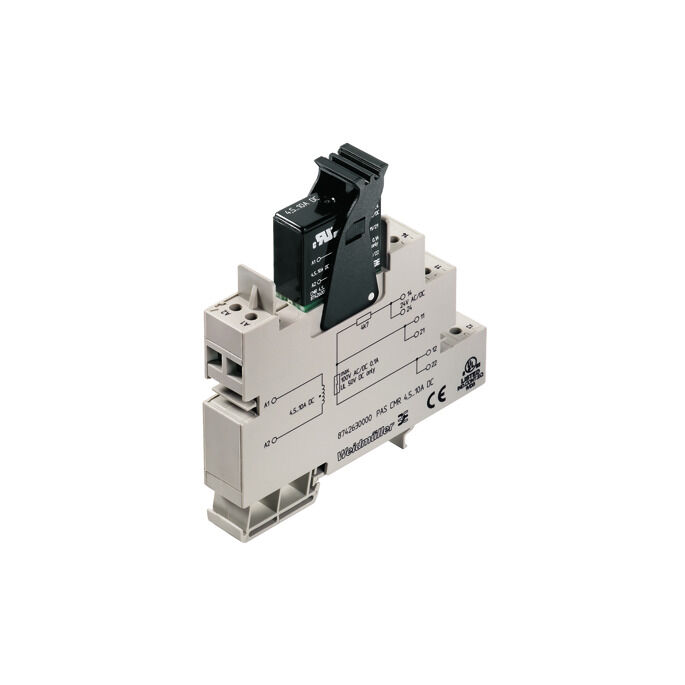

Product image
PAS CMR 4,5...10 A DC
Electric symbol
PAS CMR 4,5...10 A DC

PAS CMR 4,5...10 A DC

Current monitoring, 4.5...10 A DC, 1, Screw connection

Produkt ID 8742630000
Download datablad Produktdownloads
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Caractéristiques générales Insulation coordination Input Output Connection data Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Current monitoring, 4.5...10 A DC, 1, Screw connection
Order No.
8742630000
Type
PAS CMR 4,5...10 A DC
GTIN (EAN)
4032248413942
Qty.
10 Styk

Dimensions and weights

Depth
95 mm
Depth (inches)
3,74 inch
Height
95 mm
Height (inches)
3,74 inch
Width
15,3 mm
Width (inches)
0,602 inch
Length
92 mm
Length (inches)
3,622 inch
Net weight
55 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Probability of failure

SIL(IEC 61508 준수)
None

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Caractéristiques générales

Configuration
none
Mounting rail
TS 35
Nominal power consumption
1,5 VA
Protection degree
IP20
Temperature coefficient
350 ppm/K

Insulation coordination

EMC standards
EN 55011
EN 61000-6-1, 2, 3, 4
Galvanic isolation
zwischen Eingang ⁄ Ausgang ⁄ Versorgung ⁄ Relais
Impulse withstand voltage
6 kV
Insulation voltage
4 kVeff / 1 min.
Pollution severity
2
Rated voltage
300 V
Surge voltage category
III

Input

Corrente max.
30 A for 10 s
Corriente de entrada
4.5...10 A DC
Impulzus hossza
min. 1 ms
Input resistance, current
<50 mΩ
Práh zapínacího proudu
≤ 4.5 A
Resistance of sensor circuit
50 Ω
Sicher aus
≤ 600 mA

Output

Contact assembly
1 NO contact
Contact material
RH/Rd (Reed contact)*
Continuous current
100 mA
Max. switching frequency
20 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
100 V
Number of outputs
1
Switching current
2 A
Switching voltage AC, min.
1 V
Switching voltage DC, min.
1 V
Temperature coefficient
350 ppm/K

Connection data

Вид соединения
Screw connection
Clamping range, rated connection
1,5 mm²
Clamping range, min.
2,5 mm²
Clamping range, max.
2,5 mm²

Classifications

ETIM 8.0
EC002654
ETIM 9.0
EC002654
ETIM 10.0
EC002654
ECLASS 14.0
27-21-01-22
ECLASS 15.0
27-21-01-22

Tender specification sheets

Long specification

Limit-value monitoring of DC currents up to 10 A with switching output
limit-value monitoring component for measuring DC currents 4.5...10 A with
switching output. The monitoring unit is designed so that it can be plugged onto the mounting base.


Pluggable unit on base, for mounting on TS35 DIN rail
Dimensions: L/W/H 92/ 15.3/ 95 mm
Screw connection / Nominal cross-section 2.5 mm2
Protection degree: IP 20

Input                         4.5 ...10 A DC / Reed relay coil
Switch-on threshold         < 4,5  A
Switch-off threshold       < 600 mA
Output                                             1 NO / Reed contact
Switching current max 100 mA AC/DC
Switching voltage 100 V AC / 50 V DC
Ambient
temperature range 0 °C...+55 °C

Secure isolation                   EN 50178, 2-way isolation up to 6 kV
Test voltage                               4 kVeff / 1 min. input against output
Rated
voltage                                          300 V AC/DC at overvoltage category III and pollution degree 2
Approvals cULus




Type                                                             PAS CMR 4.5...10 A DC


Short specification

Limit-value monitoring of DC currents up to 10 A with switching output
limit-value monitoring component for measuring DC currents  4.5...10 A with
switching output. The monitoring unit is designed so that it can be plugged onto the mounting base.
