Egenskaber
| Version | Communication module |
| Order No. | 2467340000 |

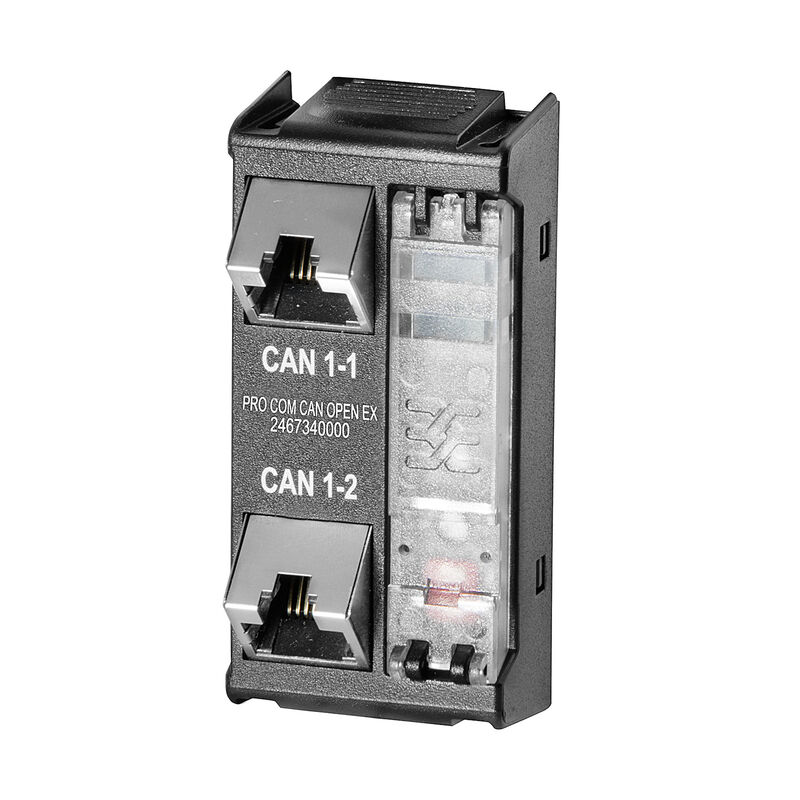

| Type | PRO COM CAN OPEN EX |
| GTIN (EAN) | 4050118481822 |
| Qty. | 1 Styk |
| Depth | 33,6 mm |
| Depth (inches) | 1,323 inch |
| Height | 74,4 mm |
| Height (inches) | 2,929 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 76 g |
| Operating temperature | -25 °C...70 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1df9fee4-69cb-4b0a-a401-554c8cdbf60e |
| MTTF |
|
| Protection degree | IP20 |
| Weight | 36 g |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
| Institute (cULus) | CULUS |
| Institute (cULusEX) | CULUSEX |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85825) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_81584)
[Quick start guide -- IOT-GW30: CANopen communication with PROtop](https://mdcop.weidmueller.com/mediadelivery/asset/900_251152) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2467340000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2467340000) |
| Product Change Notification | [PRO COM CAN OPEN Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_174805) |
| Software | [Device description -- EDS File](https://mdcop.weidmueller.com/mediadelivery/asset/900_67847) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_192128) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-04-07-92 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-24-26-08 |
| ECLASS 13.0 | 27-24-26-08 |
| Approvals |         |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
