Egenskaber
| Version | P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 4, Number of connections: 16, Colour: black, Colour of operational elements: white, TS 35 x 7.5 |
| Order No. | 1173840000 |

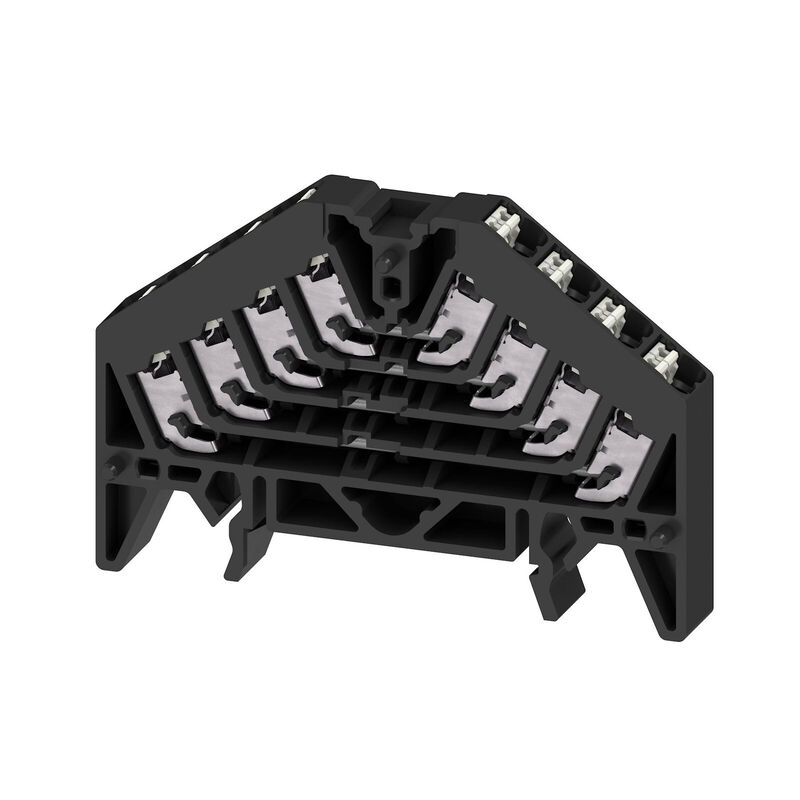

| Type | PRV 4 SW 35X7.5 WS |
| GTIN (EAN) | 4032248966349 |
| Qty. | 20 Styk |
| Depth | 47 mm |
| Depth (inches) | 1,85 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 9,2 mm |
| Width (inches) | 0,362 inch |
| Net weight | 21,31 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Material of operational elements | PBT |
| Colour | black |
| Colour of operational elements | white |
| UL 94 flammability rating | V-0 |
| Version |
PUSH IN connection
One end without connector |
| End cover plate required | Yes |
| Number of levels | 4 |
| Number of clamping points per level | 4 |
| Number of potentials per tier | 4 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 x 7.5 |
| Explosion-tested version | No |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 1,5 mm² |
| Clamping range, min. | 0,13 mm² |
| Connection cross-section, stranded, max. | 1,5 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | Inclined / angled |
| Number of connections | 16 |
| Stripping length | 10 mm |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 1,5 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-2406089 |
| Current size B (CSA) | 10 A |
| Current size D (CSA) | 10 A |
| Voltage size B (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section max. (CSA) | 16 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Number of poles | 4 |
| Rail | TS 35 x 7.5 |
| Standards |
IEC 60947-7-1
DIN EN 60079 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section AWG, min. | AWG 24 |
| Rated cross-section | 1,5 mm² |
| Rated voltage | 250 V |
| Rated current | 10 A |
| Current at maximum wires | 13 A |
| Standards |
IEC 60947-7-1
DIN EN 60079 |
| Volume resistance according to IEC 60947-7-x | 1,83 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Power loss in accordance with IEC 60947-7-x | 0,56 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Current size B (cURus) | 10 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Wire cross section max. (cURus) | 16 AWG |
| Wire cross section min. (cURus) | 26 AWG |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36325)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284535) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224735) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1173840000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1173840000) |
| User Documentation |
[Beipackzettel_PRV_PPV.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35353)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-05 |
| ECLASS 14.0 | 27-25-01-05 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
Tilbehør
-
-
-
Produkt ID:1173700000Pakningsenhed:10 Styk
P-series, Partition plate, grey, 2 mm, Unprinted
-
Produkt ID:1230070000Pakningsenhed:10 Styk
P-series, Partition plate, grey, 2 mm, Printed A-D, horizontally
-
Produkt ID:1230050000Pakningsenhed:10 Styk
P-series, Partition plate, grey, 2 mm, Printed 1-4, horizontally
-
Produkt ID:1230060000Pakningsenhed:10 Styk
P-series, Partition plate, grey, 2 mm, Printed 0-3, horizontally
-
Produkt ID:1208970000Pakningsenhed:360 Styk
WS, Terminal marker, 7.8 x 9.2 mm, Pitch in mm (P): 9.20 Weidmueller, grey
-
Produkt ID:1267990000Pakningsenhed:20 Styk
P-series, Marker holder, blue, Number of levels: 4, TS 35 x 7.5
-
Produkt ID:1173600000Pakningsenhed:20 Styk
P-series, Marker holder, black, Number of levels: 4, TS 35 x 7.5
-
Produkt ID:2749260000Pakningsenhed:1 Styk
Screwdriver, Blade width (B): 2 mm, Blade length: 60 mm, Blade thickness (A): 0.4 mm
-
Produkt ID:1162610000Pakningsenhed:20 Styk
End bracket, black, TS 35, V-2, Wemid, Width: 8 mm, 100 °C
-
-
-
