Egenskaber
| Version | Test adapter (terminal), 230 V |
| Order No. | 0299600000 |

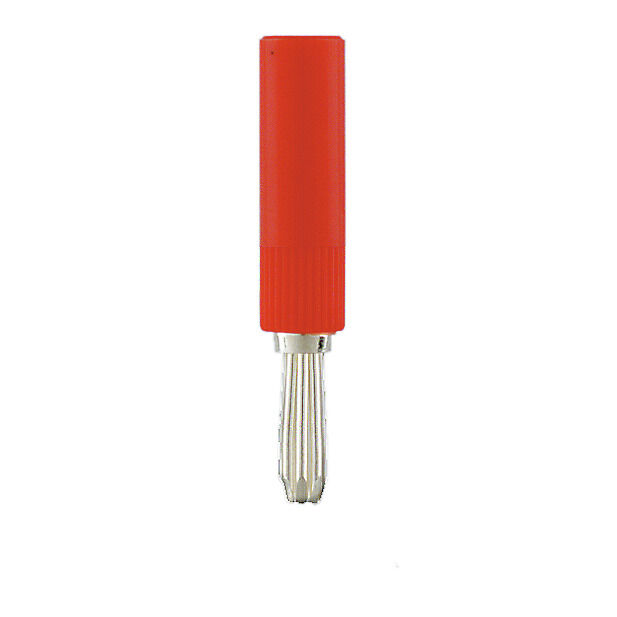

| Type | PS 4 F.STB 4 |
| GTIN (EAN) | 4008190074043 |
| Qty. | 20 Styk |
| Depth | 42 mm |
| Depth (inches) | 1,654 inch |
| Height | 7,7 mm |
| Height (inches) | 0,303 inch |
| Width | 7,7 mm |
| Width (inches) | 0,303 inch |
| Net weight | 3,16 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8d191f1d-272c-40a1-8319-7de6fe5d9746 |
| Material | Polyamide 66 |
| Colour | red |
| UL 94 flammability rating | V-2 |
| Version | Test plug |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| With snap-in pegs | No |
| Connection cross-section, stranded, max. | 4 mm² |
| Stripping length | 5 mm |
| Type of connection | Plug-in connection |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Pitch in mm (P) | 7,7 mm |
| Installation advice | Direct mounting |
| Number of poles | 1 |
| Operating temperature range, max. | 100 °C |
| Rated voltage | 230 V |
| Engineering Data |
[CAD data -- 02965_PS_4_F.STB_4_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38105)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58964) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0299600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0299600000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002555 |
| ETIM 7.0 | EC002555 |
| ETIM 8.0 | EC002555 |
| ETIM 9.0 | EC002555 |
| ECLASS 9.0 | 27-14-11-48 |
| ECLASS 9.1 | 27-14-11-48 |
| ECLASS 10.0 | 27-14-11-48 |
| ECLASS 11.0 | 27-14-11-48 |
| ECLASS 12.0 | 27-14-11-48 |
| ECLASS 13.0 | 27-25-03-04 |
| ECLASS 14.0 | 27-25-03-04 |
| ROHS | Conform |
