Egenskaber

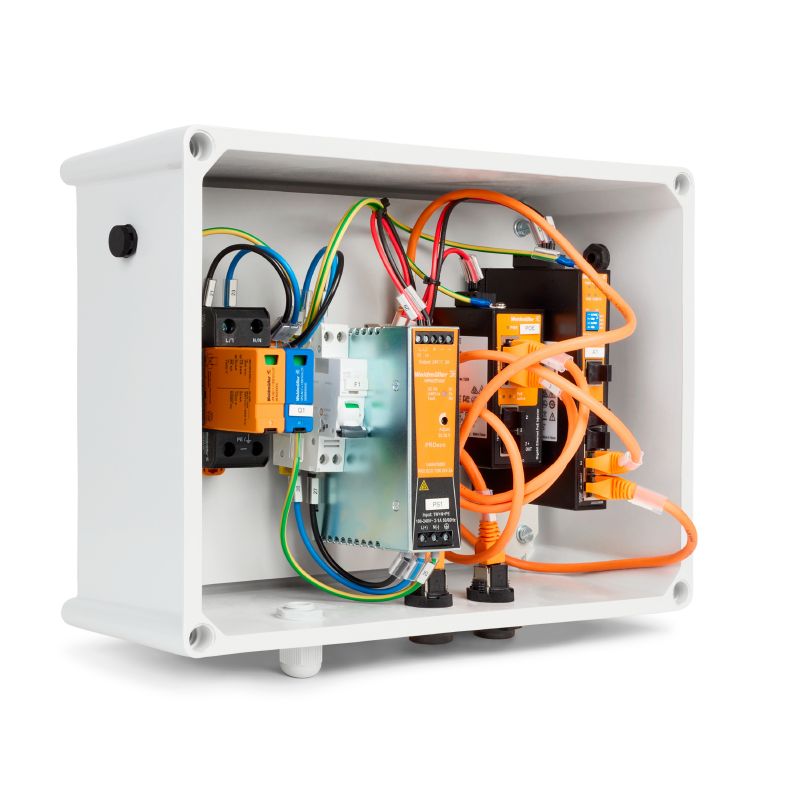

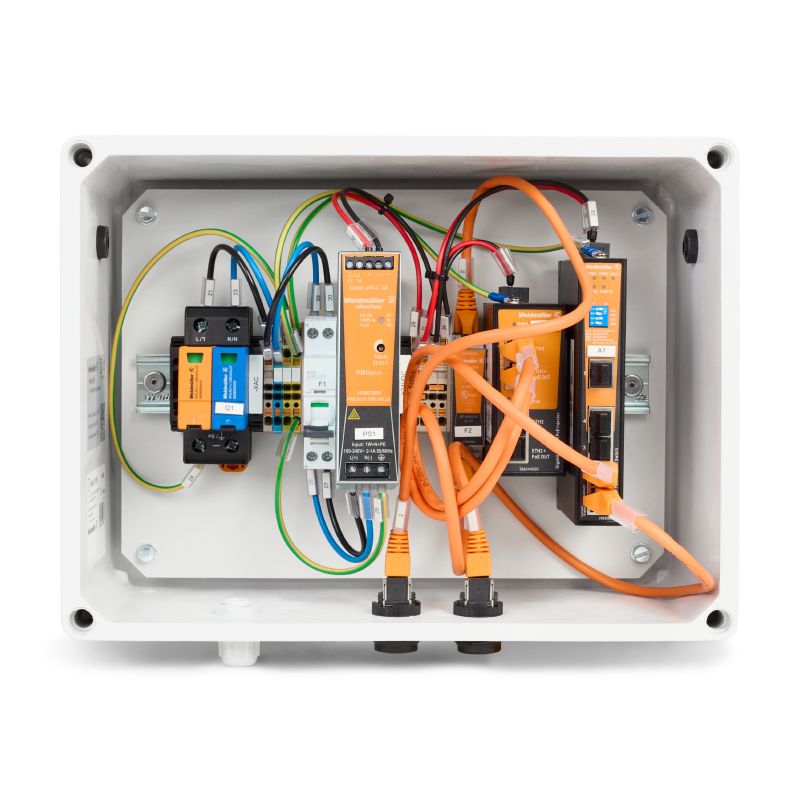

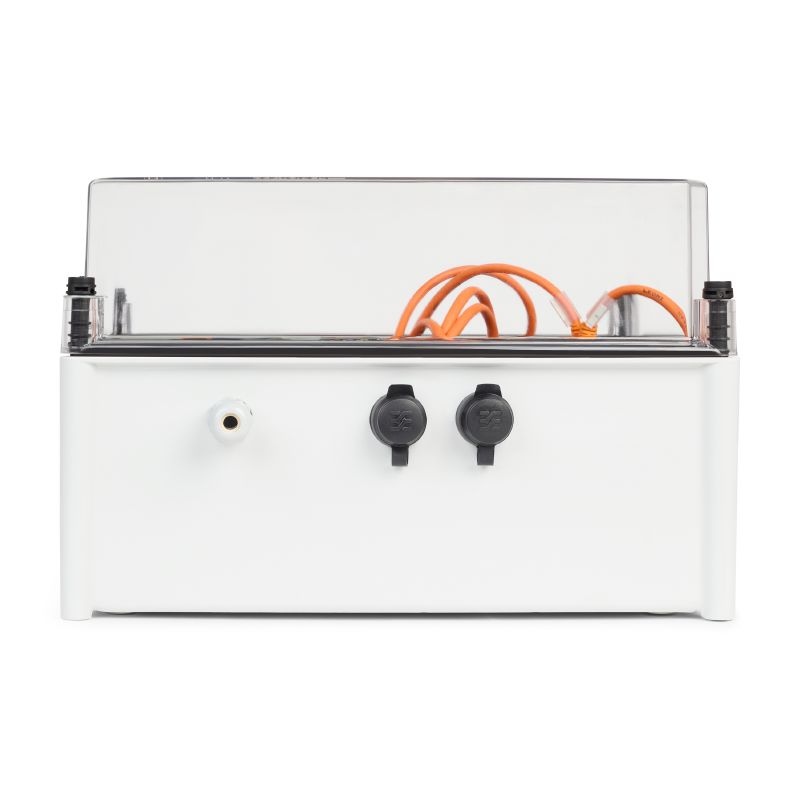

| Version | Photovoltaics, Assembled enclosure, Communication module, 230 V AC, Surge protection I, Battery powered, Current monitoring, Monitoring components, Limit value monitoring, Communication Box, RJ45, PoE |
| Order No. | 8000135184 |
| Type | PV CPCI16TXUXDXAXWXR2WW |
| GTIN (EAN) | 4099987006750 |
| Qty. | 1 Styk |
| Depth | 180 mm |
| Depth (inches) | 7,087 inch |
| Height | 270 mm |
| Height (inches) | 10,63 inch |
| Width | 360 mm |
| Width (inches) | 14,173 inch |
| Net weight | 5.410 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6aI, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| Earthing | Directly at the VPU |
| Rated voltage | 230 V |
| Surge protection AC side | PU I 1+1 LCF 280V/12,5kA, without auxiliary contact |
| Surge protection WIA RS485 side (string monitoring) | No |
| Monitoring function |
Industrial Ethernet managed switch with RJ45 ports
Industrial PC PoE unmanaged injector Connection between field devices to SCADA through RS-485 |
| Supply | Battery PRO ECO 72W 24V 3A |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2:2020 |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [Declaration of of conformity utility communication boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_318636) |
| Engineering Data | [Thermal Report](https://mdcop.weidmueller.com/mediadelivery/asset/900_317248) |
| Technical Documentation | [Mechanical Drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_317247) |
| User Documentation | [PV Communication Box User Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_257190) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |  |
| ROHS | Conform |
