Egenskaber

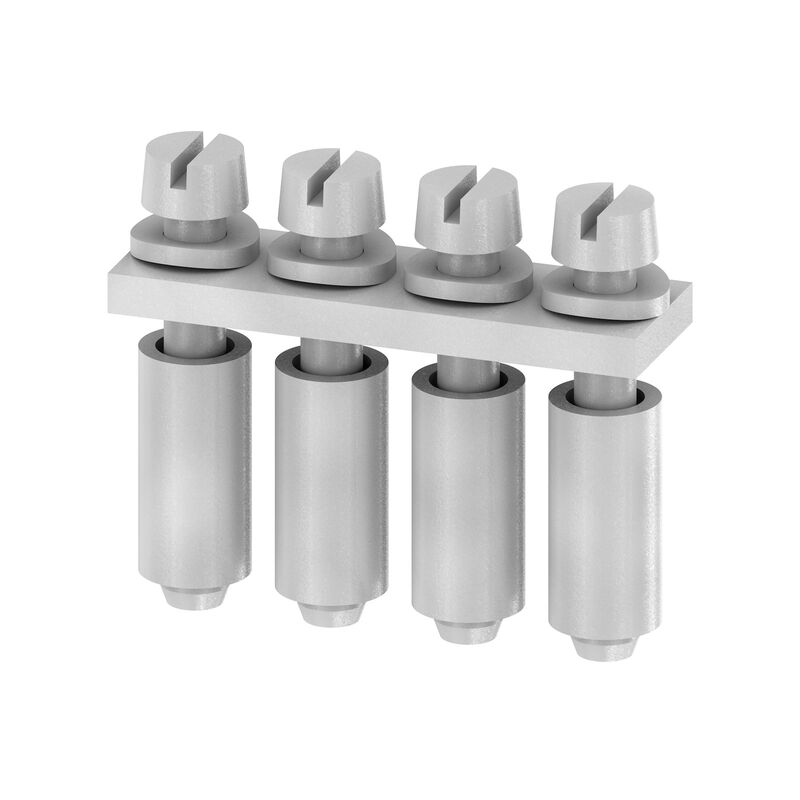

| Version | Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 4, Pitch in mm (P): 5.00, Insulated: No, Width: 24.8 mm |
| Order No. | 0368000000 |
| Type | Q 4 SAKD2.5N |
| GTIN (EAN) | 4008190044909 |
| Qty. | 50 Styk |
| Depth | 20,5 mm |
| Depth (inches) | 0,807 inch |
| Height | 6 mm |
| Height (inches) | 0,236 inch |
| Width | 24,8 mm |
| Width (inches) | 0,976 inch |
| Net weight | 5,48 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 15ca0fd7-d890-4b34-9652-12e72c65fa2d |
| Material | CuSn |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 4 |
| Rated current, 2-pole | 24 A |
| Rated current, multi-pole | 24 A |
| Type | Cross-connector |
| Pitch in mm (P) | 5 mm |
| Installation advice | Direct mounting |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59060) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0368000000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0368000000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
