Egenskaber
| Version | Marking systems, Laser print |
| Order No. | 2705010000 |
| Type | RAILLASER |
| GTIN (EAN) | 4050118795202 |
| Qty. | 1 Styk |
| Depth | 3.860 mm |
| Depth (inches) | 151,968 inch |
| Width | 2.000 mm |
| Width (inches) | 78,74 inch |
| Floor space required | 3860x2000 mm |
| Net weight | 1.045.000 g |
| Operating temperature range | 15 ... 35 °C |
| Humidity | 0...95 % (no condensation) |
| Included in delivery |

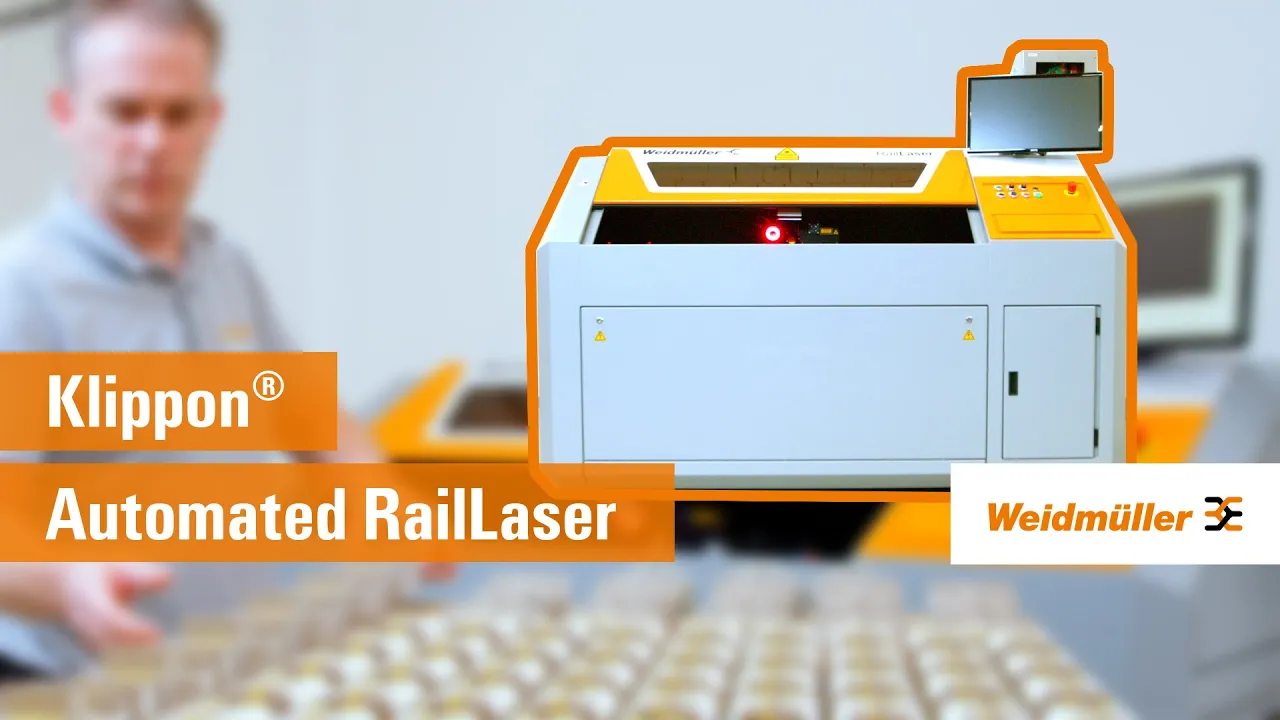

RailLaser
Keypad Manual Laser smoke exhaust |
| Interface |
USB
Ethernet Extraction system |
| Printing method | Laser print |
| Software | Weidmüller Configurator (WMC) |
| Voltage supply | 400 V AC / 32 A |
| Wavelength |
|
| Length of the terminal rail |
|
| DIN Rail compatibility |
TS35/7.5 (EN 60 715) perforated and unperforated
TS35/15 (EN 60 715) perforated and unperforated |
| Operator door function | opening / closing motor-driven |
| Laserclass according to EN60825-1 | Class 1 |
| Marking accuracy related to the X-axis | 0,2 mm |
| Noise level | below 78 dB (A) at a distance of one meter |
| Height of laser smoke exhaust | 990 mm |
| Width of laser smoke exhaust | 490 mm |
| Depth of of laser smoke exhaust | 430 mm |
| Weight of laser smoke exhaust | 80 kg |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000610 |
| ETIM 7.0 | EC000610 |
| ETIM 8.0 | EC000610 |
| ETIM 9.0 | EC000610 |
| ECLASS 9.0 | 36-61-04-04 |
| ECLASS 9.1 | 36-61-04-04 |
| ECLASS 10.0 | 36-61-04-04 |
| ECLASS 11.0 | 36-61-04-04 |
| ECLASS 12.0 | 36-61-04-04 |
| ECLASS 13.0 | 36-61-04-04 |
| ECLASS 14.0 | 36-61-04-04 |
| Approvals |  |
| ROHS | Conform |
