Rogowski coil, Diameter: 125 mm, Cable length: 6 m, 100…5000 A, Output : Pulse, mV signal

Tuotteen tunnus 2831100000
Lataa tietosivu Tuotelataukset
On lisävaruste 1 Samankaltaiset tuotteet 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions of live conductors Características eléctricas Technische Eigenschaften Input 通用参数 절연 조정 Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E469563

General ordering data

Utförande
Rogowski coil, Diameter: 125 mm, Cable length: 6 m, 100…5000 A, Output : Pulse, mV signal
Заказ №
2831100000
Typ
RCMA-B22-D125-6.0
GTIN (EAN)
4064675395690
Qty.
1 items

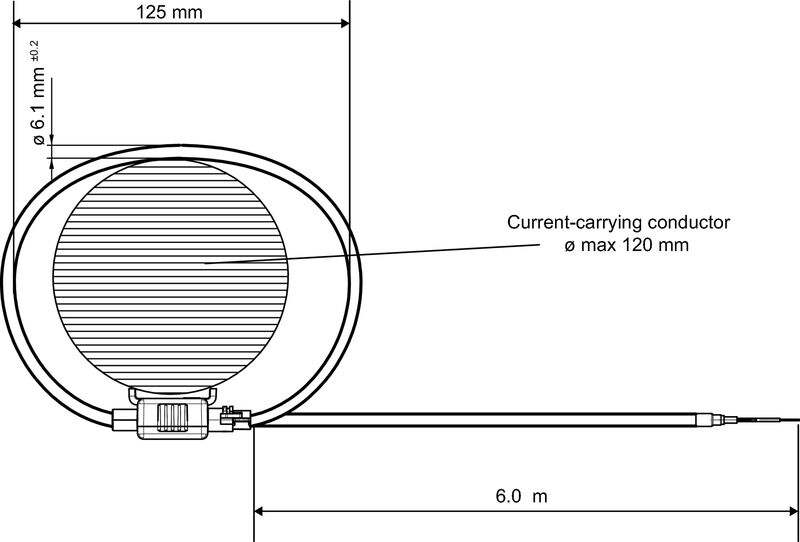

Dimensions and weights

Průměr
125 mm
Net weight
308 g

Temperatures

Skladovací teplota
-40 °C...80 °C
Provozní teplota
-40 °C...80 °C
Vlhkost při provozní teplotě
5 - 90 %, no condensation

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions of live conductors

Leiterart
Conductor rail
Round conductor
Non-insulated conductors
Rundleiter
125 mm

Características eléctricas

Frequenzband
50...60 Hz
Genauigkeitsklasse
0,5
Nennübersetzungsverhältnis
44.44 kA/V
Phasenverschiebung
0.004 °
Primärstrom
5,000 A
Sekundärspannung
22,5 mV (@ 50Hz Iprimary = 1 kA)
30 V (max)

Technische Eigenschaften

Délka kabelu
6 m
Průměr kabelu
6.1 mm
Spulenwiderstand
81 Ω
Stupeň krytí
IP57

Input

Frekvenční pásmo
50...60 Hz

通用参数

Konfigurace
none
Linearita
no linearity error
Stupeň krytí
IP57

절연 조정

Impulse withstand voltage
12.8 kV (1.2/50 ms)
Izolační napětí
7,4 kVwart. skut.(50 Hz, 1 min)
Jmenovité izolační napětí
1 00 0V förstärkt isolering i enlighet med IEC 61010-1, CAT III, PD2
1 000 V grundläggande isolering i enlighet med IEC 61010-1, CAT IV, PD2
600 V förstärkt isolering i enlighet med IEC 61010-1, CAT IV, PD2
Kategorie rázového napětí
III
Odport proti plazivým proudům (CTI)
600
Tolerance class
0,5
Závažnost znečištění
2

Part description

Popis produktu
The Rogowski coil RCMA-B22-DXX is intended for the electronic measurement of alternating current.
The Rogowski coil must only be used in conjunction with a Weidmüller transducer RCMC-5000-XX.

Functional description
The primary circuit (power circuit) and the secondary circuit (measurement circuit) are galvanically isolated by the Rogowski coil.
As there is no saturation effect, currents can be measured over a wide primary current range without any losses in accuracy.

Features
  • Conductor diameter of the measuring coil: 6.1 mm
  • Housing tabs for attachment with cable ties
  • Sealable bayonet fastening


Classifications

ETIM 8.0
EC002475
ETIM 9.0
EC002475
ETIM 10.0
EC002475
ECLASS 14.0
27-21-01-23
ECLASS 15.0
27-21-01-23
