Egenskaber
| Order No. | 8000118953 |

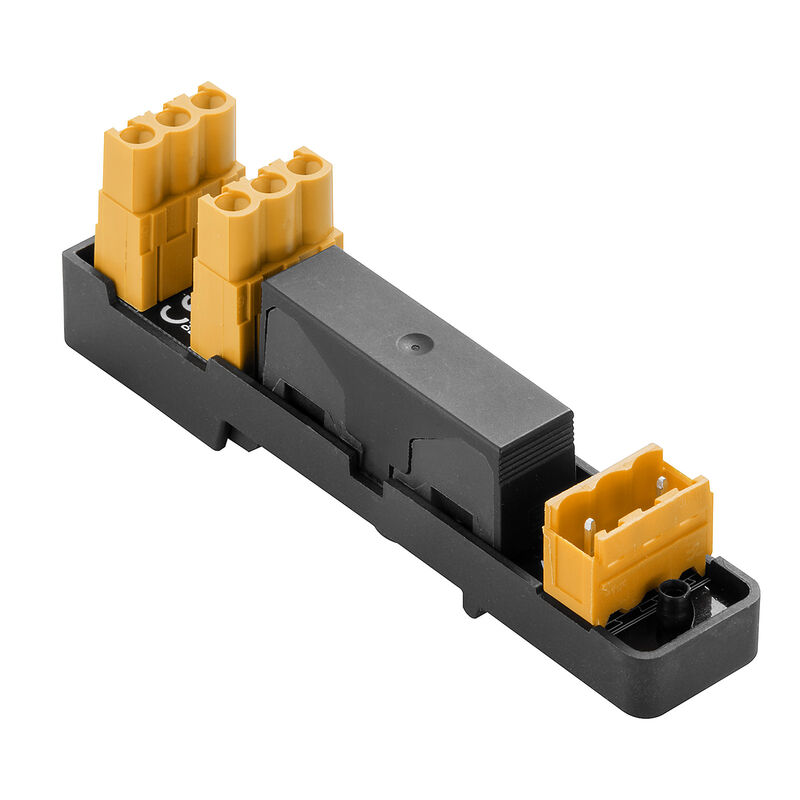

| Type | RS VERT SUPPLY BLL_F-6A |
| GTIN (EAN) | 4099986990661 |
| Qty. | 10 Styk |

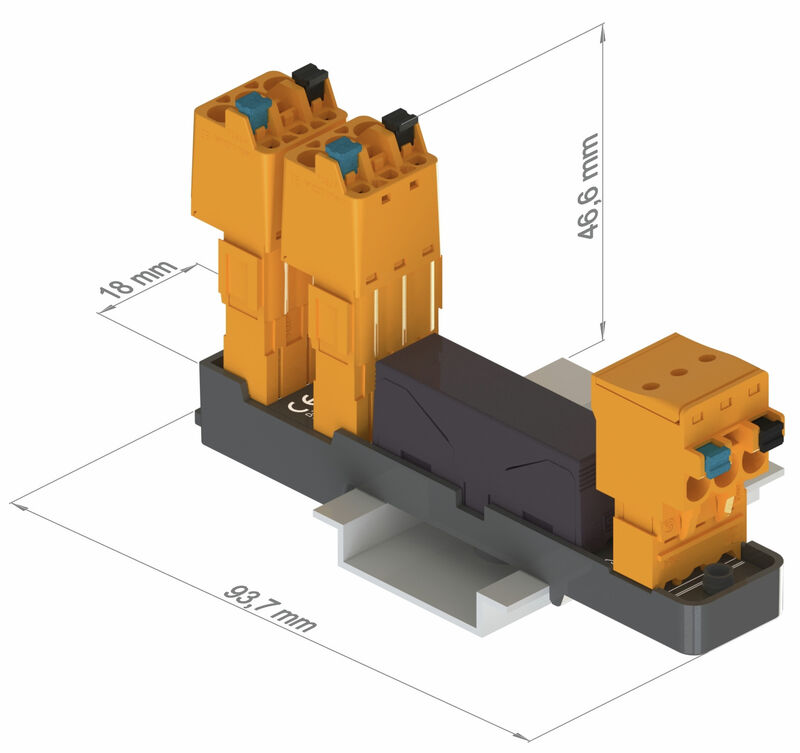

| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 93,7 mm |
| Height (inches) | 3,689 inch |
| Width | 17,9 mm |
| Width (inches) | 0,705 inch |
| Net weight | 25 g |
| Storage temperature | -40...70 °C |
| Operating temperature | -40...70 °C |
| Humidity at operating temperature | 0…85% (no condensation) |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 5eb1df1b-4147-4ed7-aadd-d25626fdf11f |

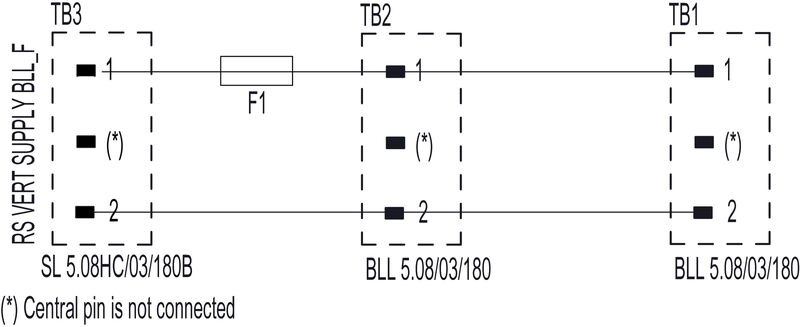

| Distribution PCB connectors | BLL 5.08/03/180 (no central pin) |
| Supply plug-in connectors | SL 5.08HC/03/180B (no central pin) |
| Protection degree | IP30 |
| Operating voltage | 230 V |
| Maximum current per distributor connection | 6 A |
| Rated insulation voltage | 250 V AC |
| Surge voltage category | III |
| Pollution severity | 2 |
| Pulse voltage test (1,2/50 μs) | 4 kV |
| Type of connection | Plug-in connection |
| Type of connection | Plug-in connection |
| Melting integral | 80 A²s |
| Rated breaking capacity | 25 kA |
| Voltage drop | 170 mV |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_269985) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_315851) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000118953) |
| User Documentation |
[EN Data Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_315793)
[DE Data Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_315861) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
