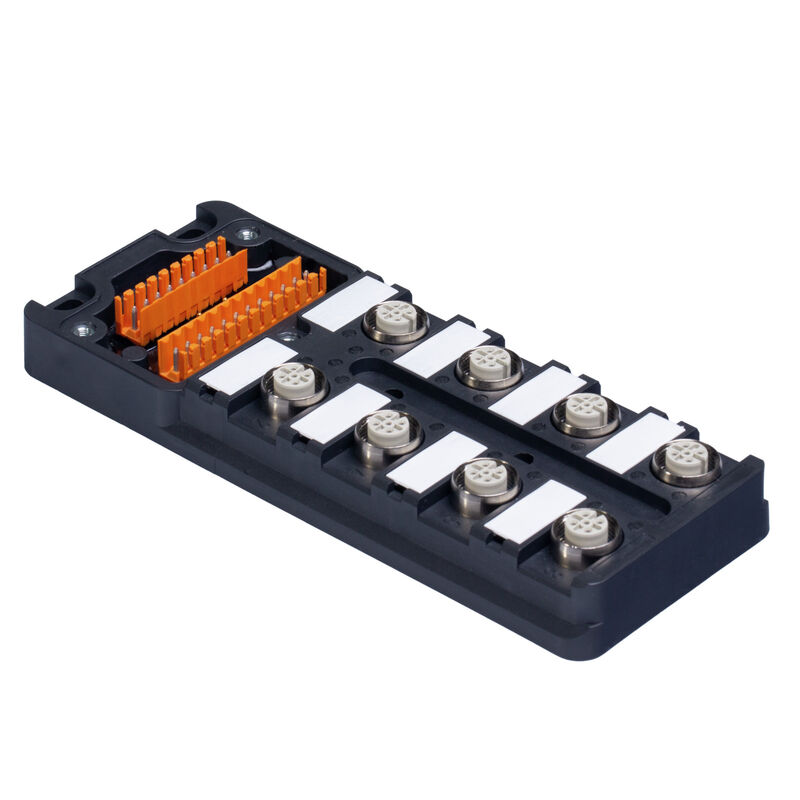

SAI-08D-VPHP-2A-M12O-NAM-EX
Similar to illustration

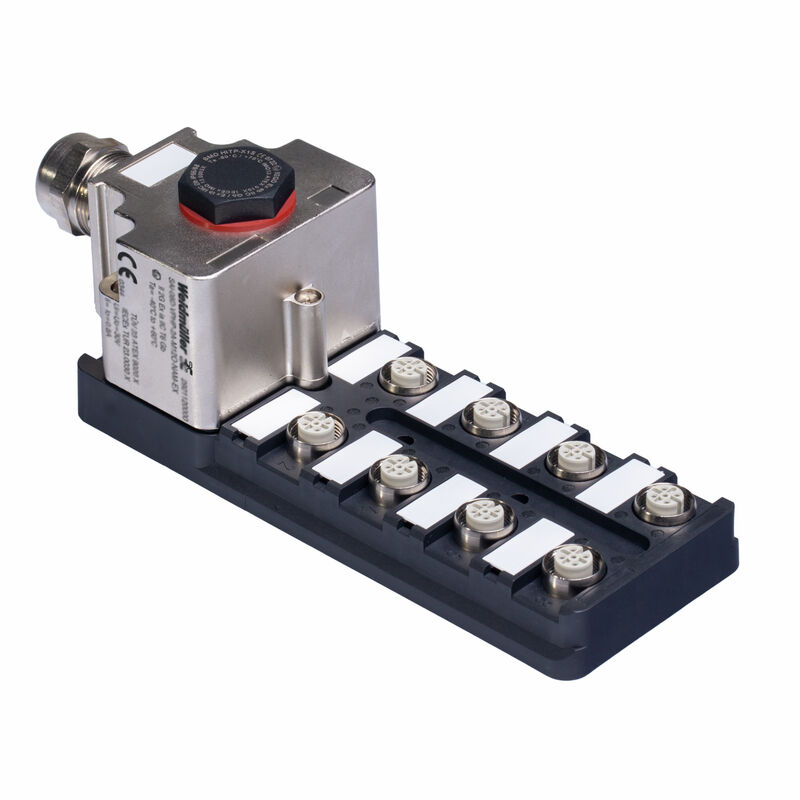

SAI-08D-VPHP-2A-M12O-NAM-EX
Similar to illustration

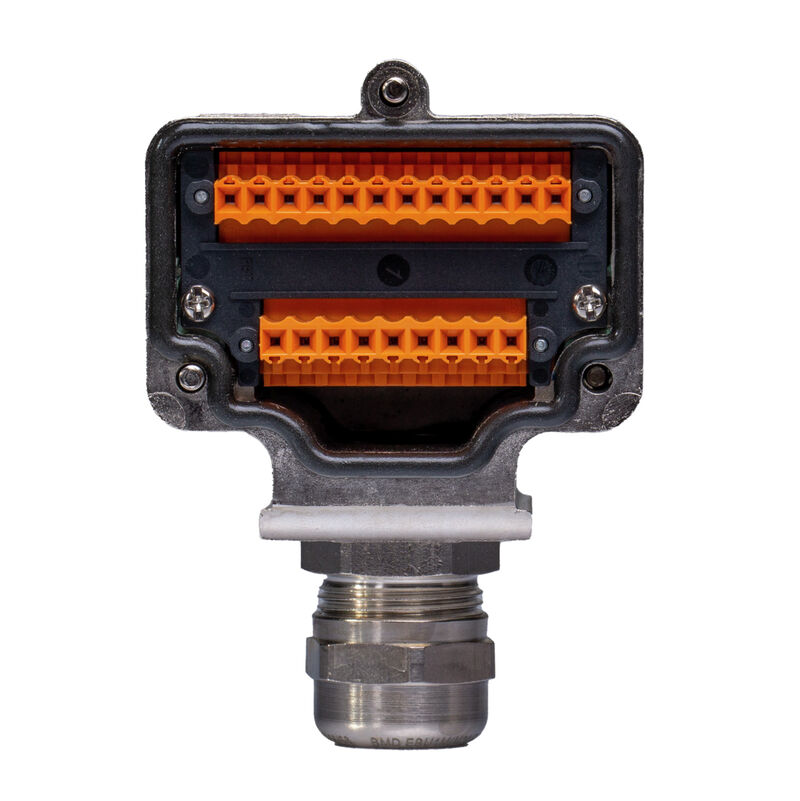

SAI-08D-VPHP-2A-M12O-NAM-EX
Similar to illustration
SAI-08D-VPHP-2A-M12O-NAM-EX
Podobné ilustraci
SAI-08D-VPHP-2A-M12O-NAM-EX
Dimensioned drawing
SAI-08D-VPHP-2A-M12O-NAM-EX
Schaltbild

SAI-08D-VPHP-2A-M12O-NAM-EX

Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire

Item No. 2921120000
Download data sheet Engineering Support Product Downloads
Accessories 8 Individual parts 3 Related products 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)

General ordering data

Version
Hood version Ex, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: 2-wire
Order No.
2921120000
Type
SAI-08D-VPHP-2A-M12O-NAM-EX
GTIN (EAN)
4099986612792
Qty.
1 items

Dimensions and weights

Depth
60 mm
Depth (inches)
2,362 inch
Height
61,3 mm
Height (inches)
2,413 inch
Length
152 mm
Length (inches)
5,984 inch
Net weight
250 g

Temperatures

Operating temperature
-40 - 60°C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
080d521b-fe82-472b-91b0-e57e0e68f901

Connection data

Tecnica di collegamento cavi
PUSH IN
케이블 글랜드
M 20
Clamping range, min.
0,14 mm²
Klemmbereich, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 16
Solid, min. H05(07) V-U
0,14 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,14 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,28 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1 mm²
Distributor outlet
Hood version Ex

Electrical data

Rated voltage, min.
0 V
Rated voltage, max.
30 V
Max. current-carrying capacity per slot
0,8 A
Total current
0.8 A
Current per signal
0,8 A

General technical data

Kódování zásuvné stanice
A-coded
Protection degree
IP66
IP67
Surge voltage category
III
Liczba biegunów
2
Number of contact sockets
8
Connection thread
M12
Pollution severity
3
Tenue au feu
V-0
Ciclos de enchufado
≤ 50
LED
No
LED initiator
No

Material data

Material O-Ring
FKM
Housing main material
Pocan (base module)
Zinc diecast (hood)
Housing colour
black (similar to RAL 9005)
materiał uszczelniający pokrywę
Polyurethane foamed
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Kontaktyta
Gold-plated
Contact carrier material
PBT (UL 94 V0)
Cable gland material
metal

Important note

Product information

Included in delivery:

  • 2 x Protection cap M12
  • 1 x Cable gland M20x1.5
  • 1 x Sealing Plug M20x1.5
  • 1 x MultiCard ESG 9/17 K Device marker


Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
