Egenskaber
| Version | Sensor-actuator passive distributor, M8, 10 m, Number of poles: 3, Number of contact sockets: 10 |
| Order No. | 2819160000 |

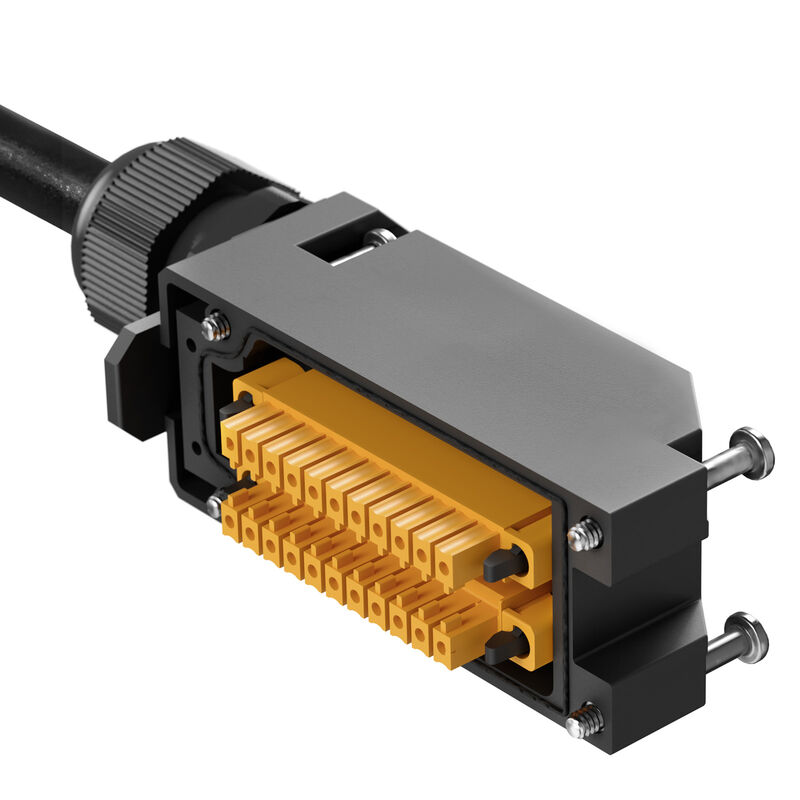

| Type | SAI-10Z-MXPP-3A-M08L-PNP-10U04 |
| GTIN (EAN) | 4064675330387 |
| Qty. | 1 Styk |
| Net weight | 917 g |
| Operating temperature | -25 - 80°C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Clamping range, min. | 0,08 mm² |
| Clamping range, max. | 1,5 mm² |
| Rated voltage, min. | 15 V |
| Rated voltage, max. | 30 V |
| Max. current-carrying capacity per slot | 2 A |
| Current per signal | 2 A |
| Electrical isolation available | No |
| Protection degree | IP67 |
| Number of poles | 3 |
| Number of contact sockets | 10 |
| Connection thread | M8 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| LED | No |
| LED initiator | No |
| Material O-Ring | FKM |
| Housing main material | PBT |
| Material of distributor | Plastic |
| Housing colour | black (similar to RAL 9005) |
| Hood sealing material | FKM |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Bending cycles | 2 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 10 x cable diameter |
| Colour coding |
white
green violet white / green white / grey white / yellow grey / brown blue brown Yellow / brown yellow black brown / green grey grey / pink pink red red / blue |
| Halogen | No |
| Number of poles | 3 |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | Yes |
| Cable length | 10 m |
| Suitable for cable carriers | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_303911) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2819160000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 9.0 | EC002585 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-08 |
| ECLASS 11.0 | 27-44-01-08 |
| ECLASS 12.0 | 27-44-01-08 |
| ECLASS 13.0 | 27-44-01-08 |
| ECLASS 14.0 | 27-44-01-08 |
| Approvals |   |
| ROHS | Conform |
