SAI-4/6/8 MH-MH BL 3.5

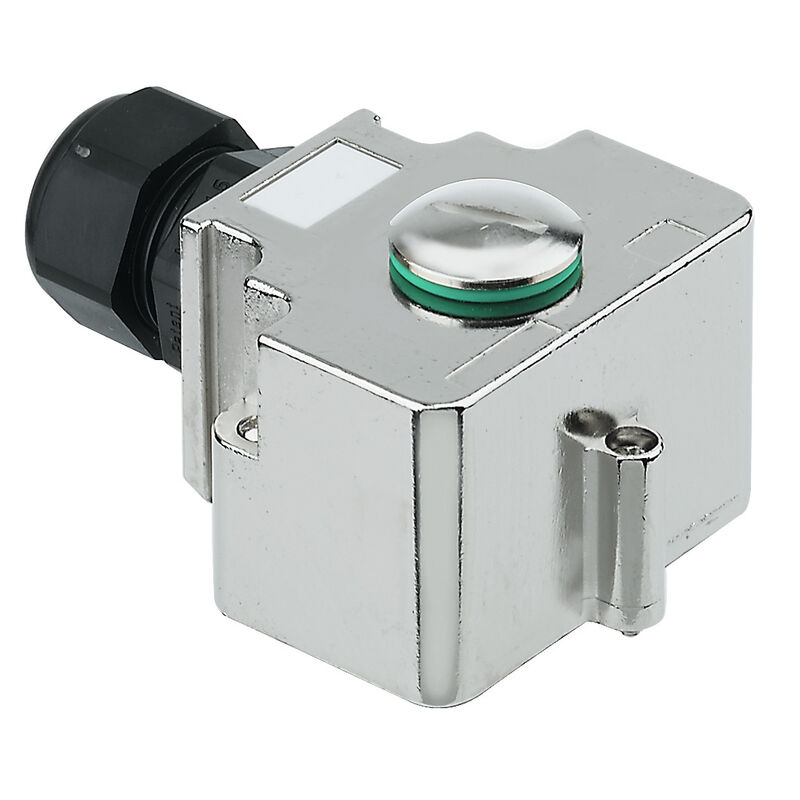

Similar to illustration
SAI-4/6/8 MH-MH BL 3.5
Similar to illustration

SAI-4/6/8 MH-MH BL 3.5

Hood version with M20 outlet, 30 V, , LED: No, LED initiator: No, Wiring type: None

Produkt ID 1724752000
Download datablad Engineering Support Product Downloads
Tilbehør 3 Anvendte produkter 9
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

ROHS
Conform

General ordering data

Version
Hood version with M20 outlet, 30 V, , LED: No, LED initiator: No, Wiring type: None
Order No.
1724752000
Type
SAI-4/6/8 MH-MH BL 3.5
GTIN (EAN)
4032248184576
Qty.
1 Styk

Dimensions and weights

Height
55 mm
Height (inches)
2,165 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
340 g

Temperatures

Operating temperature
-20 - 90°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Ledarytterdiameter, min.
10 mm
Conductor O.D., max.
14 mm
Cable gland
M 20
Clamping range, min.
0,08 mm²
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Storage space
gross
Fördelarutgång
Hood version with M20 outlet

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Test voltage
1 kV
Max. current-carrying capacity per slot
4 A
Total current
10 A
Current per signal
2 A
Разделение потенциалов имеется
No

General technical data

Вид защиты
IP68
Degré de pollution
3
Metoda wypalania
V-0
플러그 주기
≤ 50
LED
No
LED initiator
No

Material data

Housing main material
Zinc diecast (hood)
Verteilermaterial
metal
Housing colour
silver
Hood sealing material
Polyurethane foamed
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Diamètre extérieur du conducteur, min.
10 mm
Vezeték külső átmérő, max.
14 mm
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
