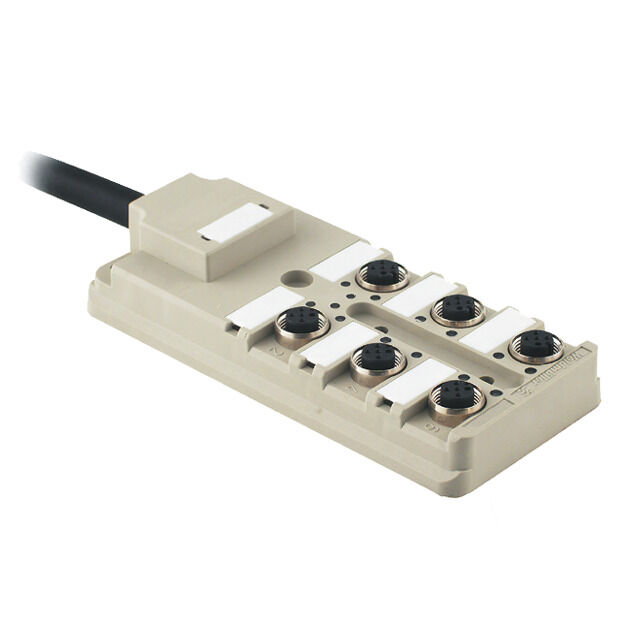

SAI-6-F 5P PUR 10M
SAI-6-F 5P PUR 10M

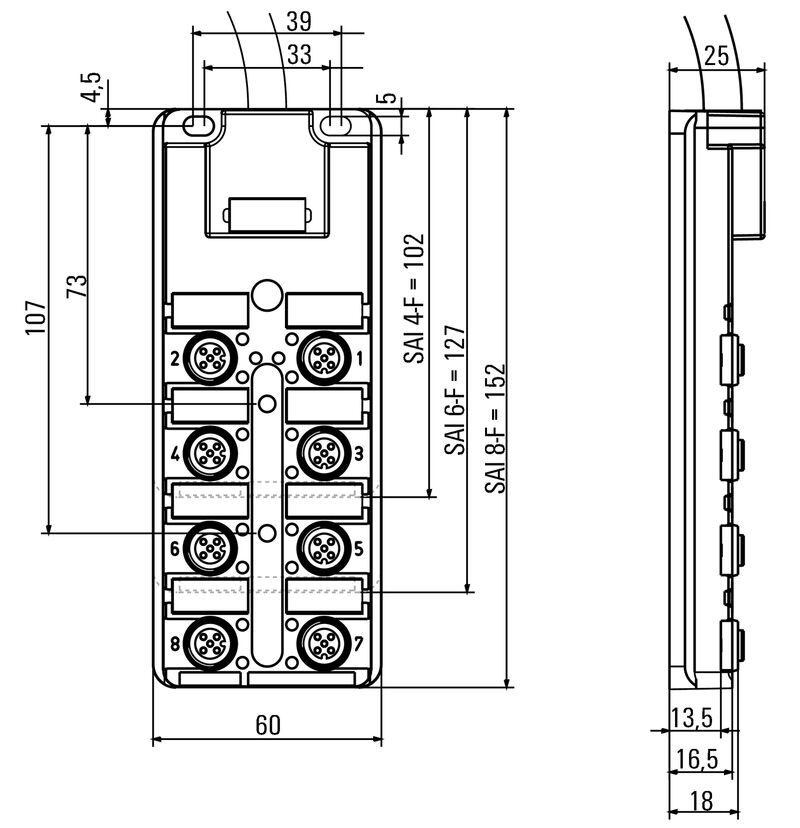

Dimensioned drawing
SAI-6-F 5P PUR 10M

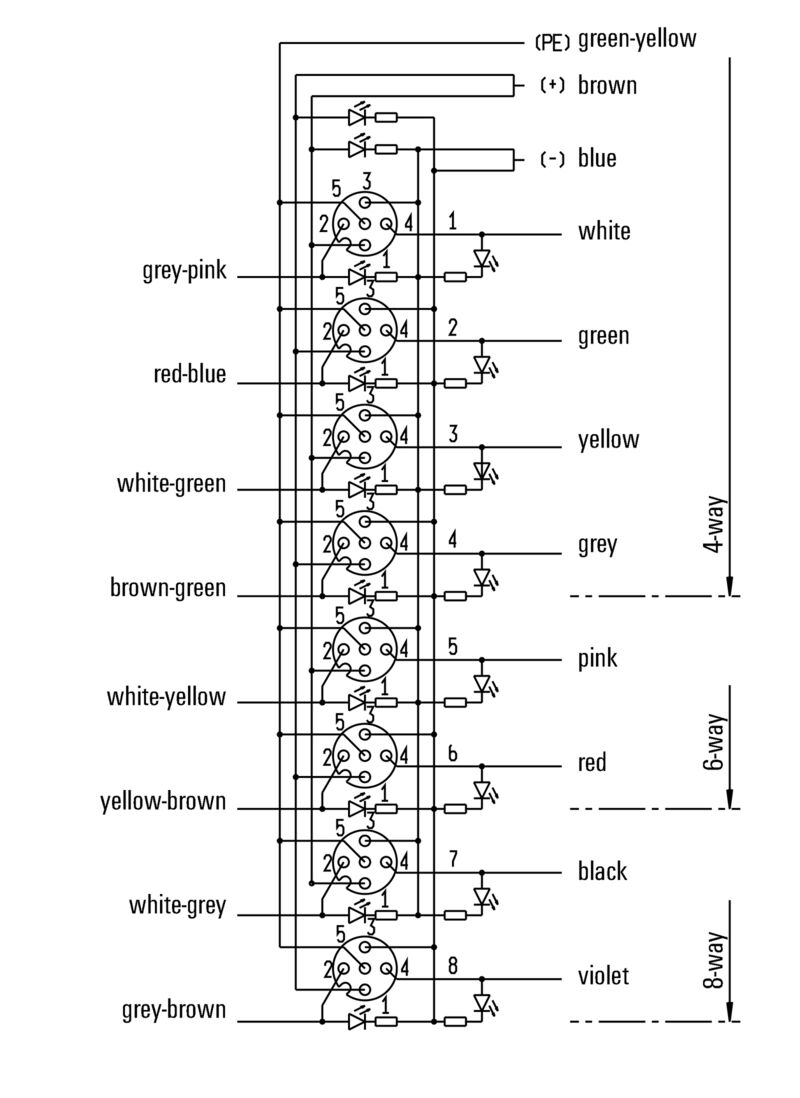

Wiring diagram

SAI-6-F 5P PUR 10M

Fixed cable version, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP, 10 m

Produkt ID 9456620000
Download datablad Engineering Support Product Downloads
Tilbehør 3 Anvendte produkter 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E141197

General ordering data

Version
Fixed cable version, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP, 10 m
Order No.
9456620000
Type
SAI-6-F 5P PUR 10M
GTIN (EAN)
4008190304614
Qty.
1 Styk

Dimensions and weights

Depth
127 mm
Depth (inches)
5 inch
Height
25 mm
Height (inches)
0,984 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
1.294 g

Temperatures

Operating temperature
-20 - 80°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Sheathing stripping length
100 mm
Distributor outlet
Fixed cable version

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Vizsgálati feszültség
1 kV
Max. current-carrying capacity per slot
4 A
Total current
9 A
Ток на сигнал
2 A
Electrical isolation available
No
Insulation resistance
109 Ω

General technical data

Plug-in station coding
A-coded
Protection degree
IP68
Number of poles
5
Number of contact sockets
6
Filettatura del collegamento
M12
Pollution severity
3
Fire behaviour
V-0
Plugging cycles
≤ 50
LED
Yes
LED initiator
Yes
LED colour for indicating operation
green
LED färg för E/A funktion
yellow

Material data

Material capotas
Pocan
Verteilermaterial
Plastic
하우징 색상
grey, RAL 7032
Hood sealing material
Viton
Raccord fileté femelle
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Colour coding
blue
brown
red / blue
white / green
brown / green
white / yellow
Yellow / brown
Green/yellow
white
green
yellow
grey
pink
red
grey / pink
Halogen
No
Number of poles
5
O.D.
8,8 mm
Sheath material
PUR
Sheathing colour
black
Shielded
No
Wire cross section (Print/Online)
12 x 0.34 mm² + 3 x 1.0 mm²
Cable length
10 m
Suitable for cable carriers
Yes

Classifications

ETIM 8.0
EC002585
ETIM 9.0
EC002585
ETIM 10.0
EC002585
ECLASS 14.0
27-44-01-08
ECLASS 15.0
27-44-01-08
