Egenskaber

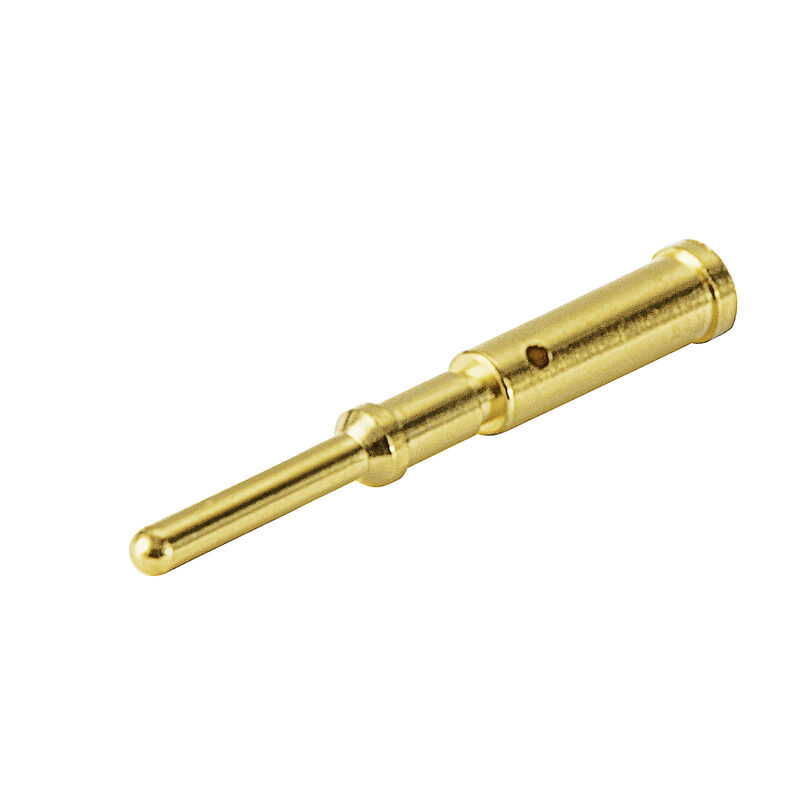

| Version | Crimp contact, Pin |
| Order No. | 2530920000 |
| Type | SAI-M12L-KSC-0.5 |
| GTIN (EAN) | 4050118541038 |
| Qty. | 50 Styk |

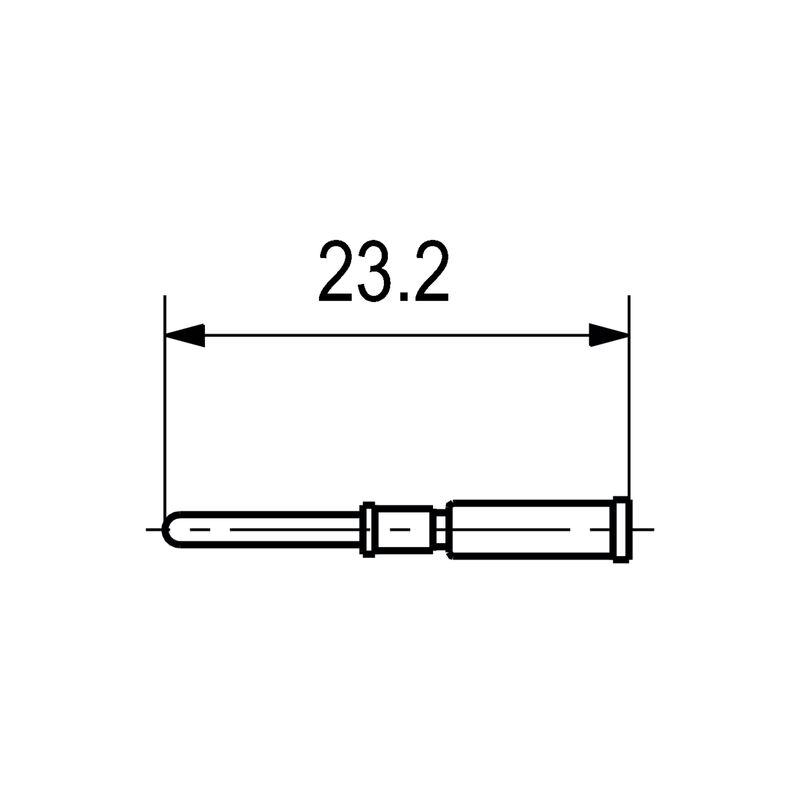

| Length | 23,2 mm |
| Length (inches) | 0,913 inch |
| Net weight | 0,66 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Contact material | Cu |
| Contact surface | Gold-plated |
| Plugging cycles | 500 |
| Pollution severity | 3 |
| Rated current | 16 A |
| Rated voltage | 63 V |
| Type of connection | Crimp connection |
| Connection 1 | M12 Contact |
| Connection 2 | Crimp |
| Contact material | Cu |
| Contact surface | Gold-plated |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 0,5 mm² |
| Plugging cycles | 500 |
| Connector standard | IEC 61076-2-111 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181336) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2530920000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:9018490000Pakningsenhed:1 Styk
Pressing tool, Crimping tool for contacts, 0.14mm², 4mm², W crimp
ToolsCrimping tools...for turned/stamped contacts... for milled contactsCrimping tools
Er tilbehør til
-
Produkt ID:2531020000Pakningsenhed:1 Styk
Field attachable connector, M12 plug
ConnectorsCircular ConnectorsM12 connectorsPowerPinCrimp connectionPlug-in connector without contacts
