Egenskaber
| Version | Sensor/Actuator plug-in connector, Empty enclosure |
| Order No. | 1170280000 |

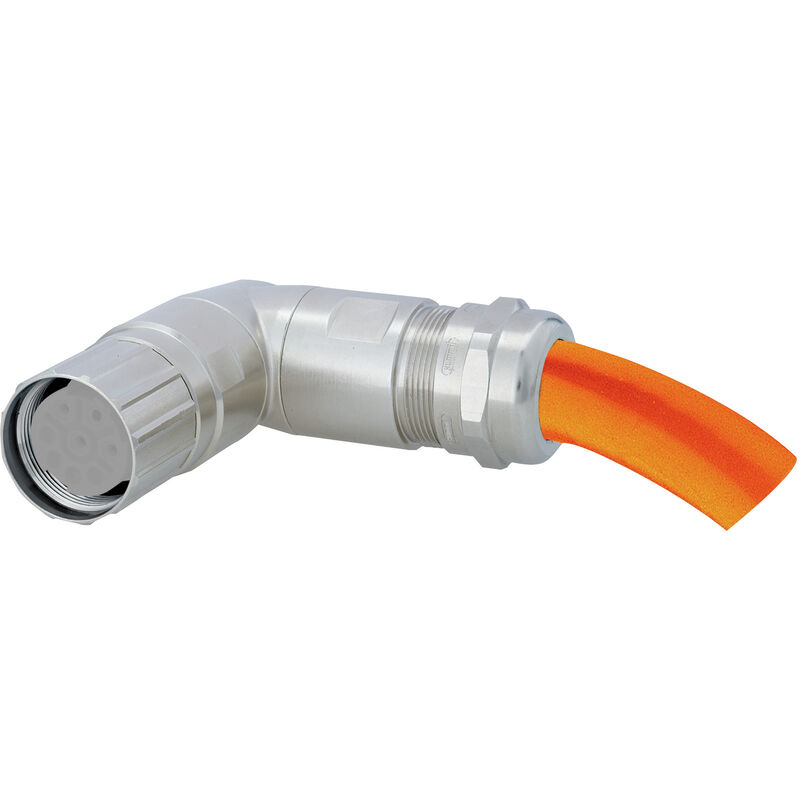

| Type | SAI-M23-GSW-L-7/12 |
| GTIN (EAN) | 4032248962327 |
| Qty. | 1 Styk |
| Net weight | 142 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | f34fc414-7303-481d-8a96-44b52af18999 |
| Cable diameter, max. | 12 mm |
| Cable diameter, min. | 7 mm |
| Housing main material | Copper-zinc alloy |
| Plugging cycles | > 1000 |
| Pollution severity | 3 |
| Protection degree |
IP67
IP69K |
| Shield connection | Yes |
| Temperature range of housing | -40…+125 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_157035) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1170280000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC003556 |
| ETIM 8.0 | EC003556 |
| ETIM 9.0 | EC003556 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-24 |
| ECLASS 11.0 | 27-44-02-24 |
| ECLASS 12.0 | 27-44-02-24 |
| ECLASS 13.0 | 27-44-02-24 |
| ECLASS 14.0 | 27-44-02-24 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E344862 |
