SAID-M8B-8-SMT
Similar to illustration
SAID-M8B-8-SMT

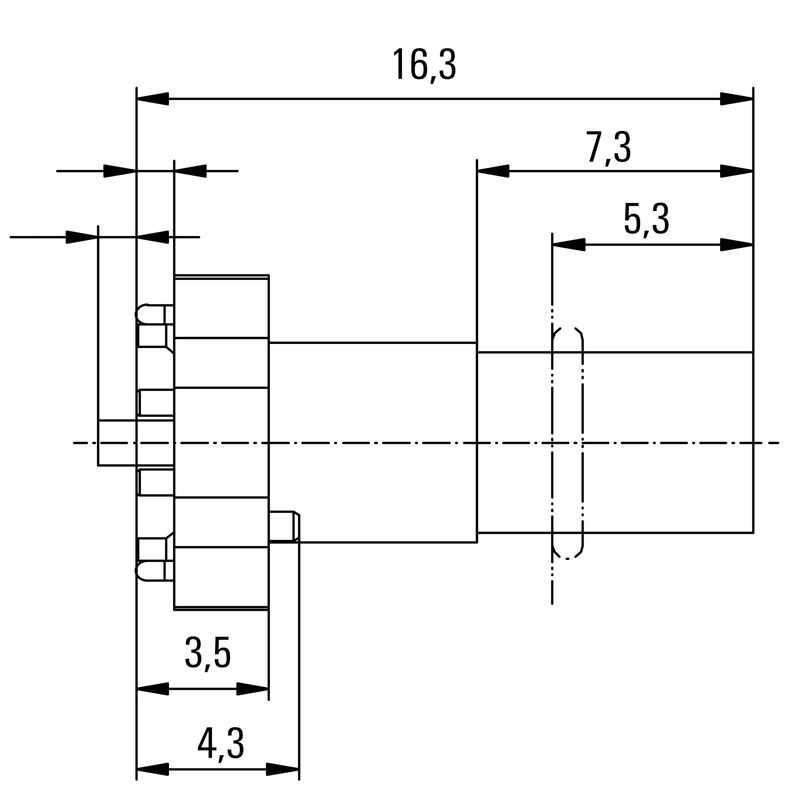

Dimensioned drawing
SAID-M8B-8-SMT
PCB design
SAID-M8B-8-SMT
Pole scheme
M8 = none

SAID-M8B-8-SMT

Einbaustecker, M8, Montagegewinde: , Polzahl: 8, Litzen-/Kabellänge:

Produkt ID 2422080000
Download datablad Engineering Support Product Downloads
Tilbehør 6 Anvendte produkter 16
Approvals Allgemeine Bestelldaten Rozměry a hmotnosti Umweltanforderungen Technical data of PCB plug-in connector General Info Material data System parameters Clasificaciones

Approvals

ROHS
Conform

Allgemeine Bestelldaten

Version
Einbaustecker, M8, Montagegewinde: , Polzahl: 8, Litzen-/Kabellänge:
Order No.
2422080000
Type
SAID-M8B-8-SMT
GTIN (EAN)
4050118429800
Qty.
25 Styk

Rozměry a hmotnosti

Peso netto
2,8 g

Umweltanforderungen

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
M8 = none
Housings
M8 socket
Number of poles
8
Shield connection
No
Nominal voltage
30 V
Rated voltage
60 V (3 polos) / 30 V (4, 5 y 8 polos)
Nominal current
1,5 A
Rated current
4 A (3-, 4- och 5-poliga)/1,5 A (8-polig)
Temperature range
-25…95 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
LCP
Connection thread
M8
Tightening torque
M8: 0,5 Nm
Stopień zanieczyszczenia
3 (2 w uszczelnionym obszarze)
Stickcykler
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
8
UL 94 flammability rating
V-0
Housing main material
LCP
Filetage du raccordement
M8
接点材質
銅合金
접점 표면
Au(금)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Number of poles
8
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Clasificaciones

ETIM 8.0
EC003557
ETIM 9.0
EC003557
ETIM 10.0
EC003557
ECLASS 14.0
27-44-02-23
ECLASS 15.0
27-44-02-23
