SAIE-M12B-12S-TL-HW-PG9

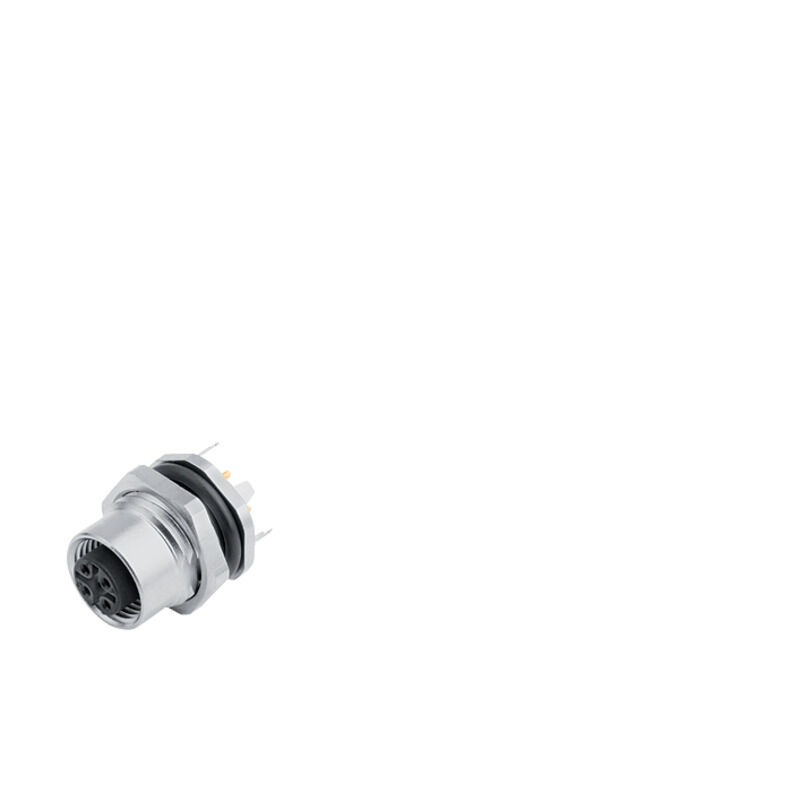

Similar to illustration
SAIE-M12B-12S-TL-HW-PG9
Pole scheme
Socket

SAIE-M12B-12S-TL-HW-PG9

Conector de instalación, M12, Rosca de montaje: , Número de polos: 12, Longitud de cable/conductor:

Tuotteen tunnus 1467810000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 7
Agréments Datos generales para pedido Dimensions and weights Conformidad medioambiental del producto Technical specifications for cable Technical data customisable plug-in connectors Standards General data Clasificaciones

Agréments

ROHS
Conforme

Datos generales para pedido

Version
Conector de instalación, M12, Rosca de montaje: , Número de polos: 12, Longitud de cable/conductor:
Order No.
1467810000
Type
SAIE-M12B-12S-TL-HW-PG9
GTIN (EAN)
4050118273267
Qty.
20 items

Dimensions and weights

Net weight
18,9 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Number of poles
12

Technical data customisable plug-in connectors

Cable gland
PG 9
Coding
A-coded
Contact surface
Gold-plated
Housing main material
Zinc diecast
Nominal current
2 A
Nominal voltage
30 V
Number of poles
12
Protection degree
IP67
when fully mounted
Rated current
4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole)
Temperature range of housing
-40 … +85 ° C
Type of connection
Socket connector

Standards

Connector standard
IEC 61076-2-101

General data

Cable gland
PG 9
Coding
A-coded
Conductor O.D.
-
Connection 1
M12
Connection 2
Dip soldering
Connection thread
M12
Contact surface
Gold-plated
Housing main material
Zinc diecast
Nominal current
2 A
Nominal voltage
30 V
Number of poles
12
Protection degree
IP67
when fully mounted
Rated current
4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole)
Rated voltage
250 V (4-polig)/ 60 V (5-polig)/ 30 V (8-und 12-polig)
Temperature range of housing
-40 … +85 ° C
Type of connection
Socket connector

Clasificaciones

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
