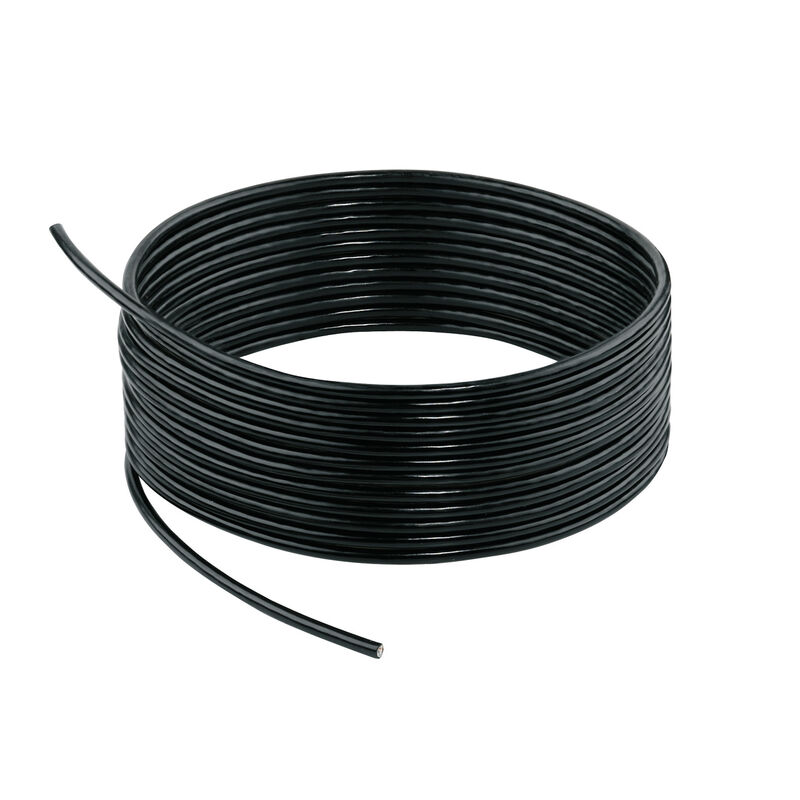

SAIH-3X0,34(PUR)

Sensor/actuator line, One end without connector, Number of poles : 3, Shielded: No, LED: No, Sheath material: PUR/ TPE, Halogen: No

Produkt ID 1902110000

Version	Sensor/actuator line, One end without connector, Number of poles : 3, Shielded: No, LED: No, Sheath material: PUR/ TPE, Halogen: No
Order No.	1902110000
Type	SAIH-3X0,34(PUR)
GTIN (EAN)	4032248515851
Qty.	100

Net weight

20.99 g

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Acceleration	5 m/s²
Bending cycles	12 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Colour coding	brown blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
Irradiation crosslinked	No
LABS-free	Yes
Length of torsion	1 m
Number of poles	3
Number of wires	3
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.3 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2 in accordance with IEC 60332-2-2
Resistant to welding beads	No
Sheath material	PUR/ TPE
Sheathing colour	black
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-50...80 °C
Torsion resistance	360 °/m
Welding spark resistance	No
Wire cross section (Print/Online)	0.34 mm²
