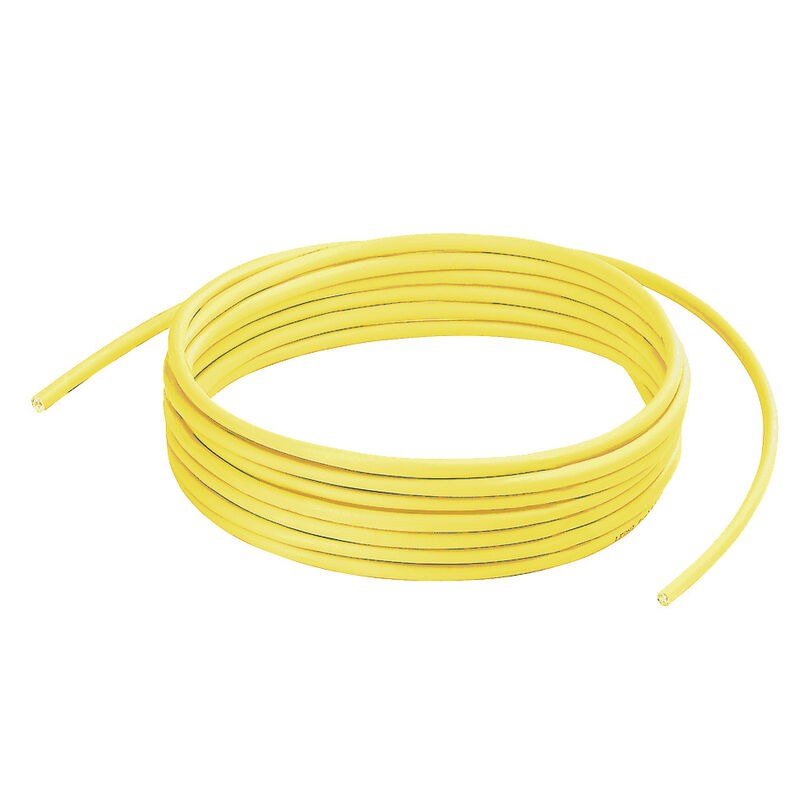

SAIH-4X0.34(PUR)GE

Sensor/actuator line, Number of poles : 4, Shielded: No, Sheath material: PUR, Halogen: No

Produkt ID 1345530000

Version	Sensor/actuator line, Number of poles : 4, Shielded: No, Sheath material: PUR, Halogen: No
Order No.	1345530000
Type	SAIH-4X0.34(PUR)GE
GTIN (EAN)	4050118150223
Qty.	100

Net weight

30 g

Acceleration	5 m/s²
Bending cycles	5 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Colour coding	brown white blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
LABS-free	Yes
Length of torsion	1 m
Number of poles	4
Number of wires	4
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.7 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	in accordance with IEC 60332-1-2 in accordance with IEC 60332-1-3 in accordance with IEC 60332-2-2 In accordance with UL1581 UL/ CUL FT1
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	yellow
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
Welding spark resistance	No
Wire cross section (Print/Online)	0.34 mm²
